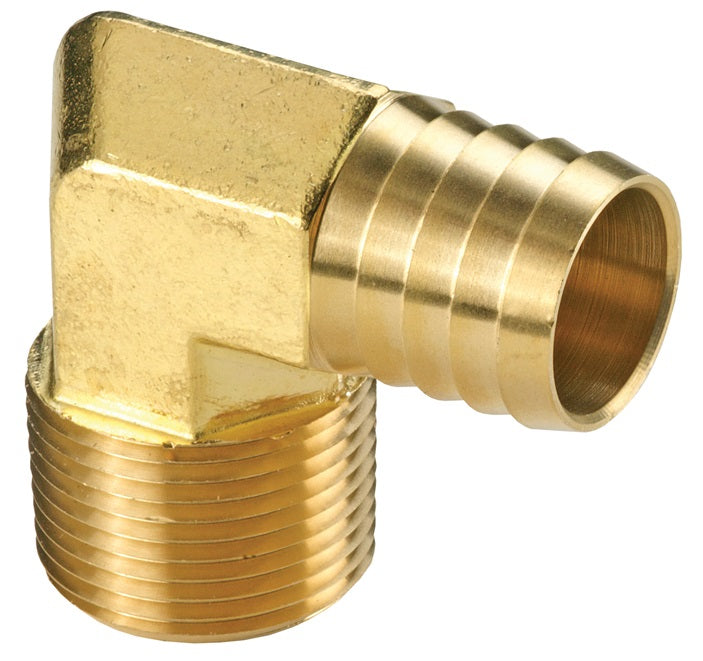

1291008C by Dixon Valve | Male Hose Barb Insert | 90° Elbow | 1/2" Male NPTF x 5/8" Hose Barb | Brass

1291008C by Dixon Valve | Male Hose Barb Insert | 90° Elbow | 1/2" Male NPTF x 5/8" Hose Barb | Brass

Save $4.67 Save $4.67
$11.68
$11.68 - $11.68
$11.68
$7.01
$7.01 - $7.01
$7.01

Dixon Valve
Male Hose Barb Insert | 90° Elbow | Male NPTF x Hose Barb
Specifications for Variant SKU: 1291008C Dixon
Series: 129 Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Hose Barb, 1/2in Male NPTF
Material(s): Brass
Construction:
  • Forged
  • Brass
  • Lead-Free Brass: Lead-free brass <=0.25% lead; Alloy CA2745; Alloy C46400
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass Lead-Free Brass
Part Number
(Lead-Free Fittings
have NPT Threads)		 316 Stainless Steel Male NPTF Hose I.D.
Previous
Part Number		 Part Number Previous
Part Number		 Part Number
EL15H1M 1290302C - - - 1/8" 3/16"
EL2H1M 1290402C - EL2H1MSS 1290402SS 1/8" 1/4"
EL2H2M 1290404C 1290404CLF EL2H2MSS 1290404SS 1/4" 1/4"
EL2H3M 1290406C - - - 3/8" 1/4"
EL25H1M 1290502C - - - 1/8" 5/16"
EL25H2M 1290504C - - - 1/4" 5/16"
EL25H3M 1290506C - - - 3/8" 5/16"
EL3H1M 1290602C - - - 1/8" 3/8"
EL3H2M 1290604C 1290604CLF EL3H2MSS 1290604SS 1/4" 3/8"
EL3H3M 1290606C 1290606CLF EL3H3MSS 1290606SS 3/8" 3/8"
EL3H4M 1290608C - - - 1/2" 3/8"
EL4H2M 1290804C - EL4H2MSS 1290804SS 1/4" 1/2"
EL4H3M 1290806C - EL4H3MSS 1290806SS 3/8" 1/2"
EL4H4M 1290808C - EL4H4MSS 1290808SS 1/2" 1/2"
EL5H3M 1291006C - - - 3/8" 5/8"
EL5H4M 1291008C - - - 1/2" 5/8"
EL6H4M 1291208C - EL6H4MSS 1291208SS 1/2" 3/4"
EL6H6M 1291212C - EL6H6MSS 1291212SS 3/4" 3/4"
EL8H6M 1291612C - - - 3/4" 1"
EL8H8M 1291616C* - - - 1" 1"

* Capped

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
