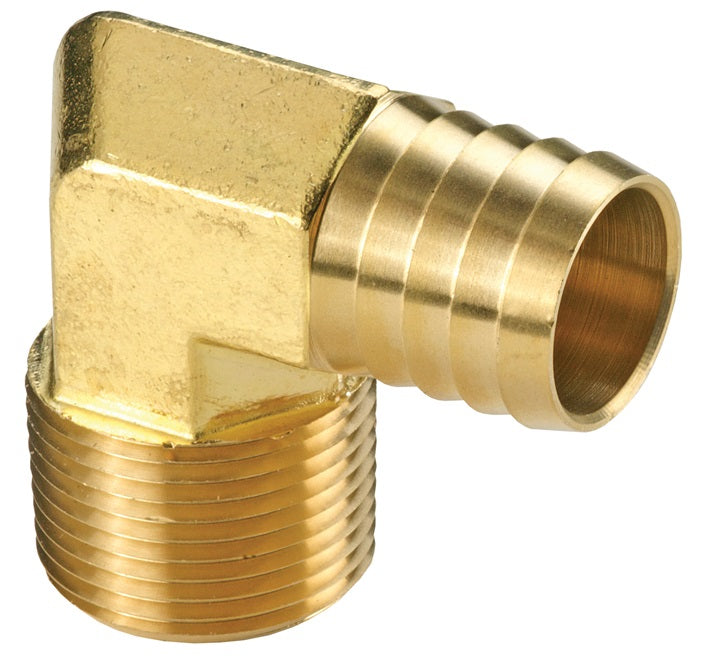

1291616C by Dixon Valve | Male Hose Barb Insert | 90° Elbow | 1" Male NPTF x 1" Hose Barb | Capped | Brass

Save $13.70

$34.25

$34.25 - $34.25

$34.25

$20.55

$20.55 - $20.55

$20.55

Dixon Valve
Male Hose Barb Insert | 90° Elbow | Male NPTF x Hose Barb

Specifications for Variant SKU: 1291616C Dixon
Series:	129 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Hose Barb, 1in Male NPTF
Material(s):	Brass

Construction:
Forged Brass Lead-Free Brass: Lead-free brass <=0.25% lead; Alloy CA2745; Alloy C46400
Safety Notes:
All standard hose fittings are intended for use with hose clamps or crimped ferrules.

Brass		Lead-Free Brass Part Number (Lead-Free Fittings have NPT Threads)	316 Stainless Steel		Male NPTF	Hose I.D.
Previous Part Number	Part Number		Previous Part Number	Part Number	Male NPTF	Hose I.D.
EL15H1M	1290302C	-	-	-	1/8"	3/16"
EL2H1M	1290402C	-	EL2H1MSS	1290402SS	1/8"	1/4"
EL2H2M	1290404C	1290404CLF	EL2H2MSS	1290404SS	1/4"	1/4"
EL2H3M	1290406C	-	-	-	3/8"	1/4"
EL25H1M	1290502C	-	-	-	1/8"	5/16"
EL25H2M	1290504C	-	-	-	1/4"	5/16"
EL25H3M	1290506C	-	-	-	3/8"	5/16"
EL3H1M	1290602C	-	-	-	1/8"	3/8"
EL3H2M	1290604C	1290604CLF	EL3H2MSS	1290604SS	1/4"	3/8"
EL3H3M	1290606C	1290606CLF	EL3H3MSS	1290606SS	3/8"	3/8"
EL3H4M	1290608C	-	-	-	1/2"	3/8"
EL4H2M	1290804C	-	EL4H2MSS	1290804SS	1/4"	1/2"
EL4H3M	1290806C	-	EL4H3MSS	1290806SS	3/8"	1/2"
EL4H4M	1290808C	-	EL4H4MSS	1290808SS	1/2"	1/2"
EL5H3M	1291006C	-	-	-	3/8"	5/8"
EL5H4M	1291008C	-	-	-	1/2"	5/8"
EL6H4M	1291208C	-	EL6H4MSS	1291208SS	1/2"	3/4"
EL6H6M	1291212C	-	EL6H6MSS	1291212SS	3/4"	3/4"
EL8H6M	1291612C	-	-	-	3/4"	1"
EL8H8M	1291616C*	-	-	-	1"	1"

* Capped
