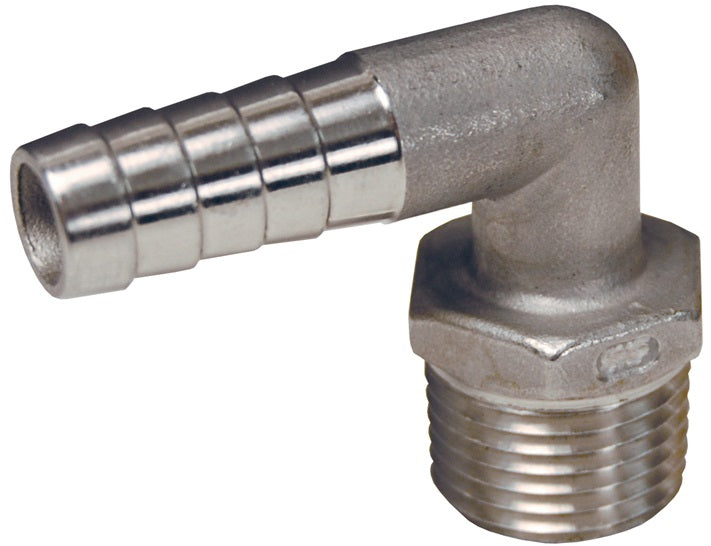

1291208SS by Dixon Valve | Male Hose Barb Insert | 90° Elbow | 1/2" Male NPTF x 3/4" Hose Barb | 316 Stainless Steel

Name: 1291208SS by Dixon Valve | Male Hose Barb Insert | 90° Elbow | 1/2" Male NPTF x 3/4" Hose Barb | 316 Stainless Steel
Brand: Dixon
SKU: 1291208SS Dixon
Price: 36.96 USD
Availability: InStock

Save $1.14

$38.10

$38.10 - $38.10

$38.10

$36.96

$36.96 - $36.96

$36.96

Dixon Valve
Male Hose Barb Insert | 90° Elbow | Male NPTF x Hose Barb

Quantity

Specifications for Variant SKU: 1291208SS Dixon
Series:	129 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 1/2in Male NPTF
Material(s):	316 Stainless Steel

Construction:
Lead-Free Brass: Lead-free brass <=0.25% lead; Alloy CA2745; Alloy C46400
Safety Notes:
All standard hose fittings are intended for use with hose clamps or crimped ferrules.

Brass		Lead-Free Brass Part Number (Lead-Free Fittings have NPT Threads)	316 Stainless Steel		Male NPTF	Hose I.D.
Previous Part Number	Part Number		Previous Part Number	Part Number	Male NPTF	Hose I.D.
EL15H1M	1290302C	-	-	-	1/8"	3/16"
EL2H1M	1290402C	-	EL2H1MSS	1290402SS	1/8"	1/4"
EL2H2M	1290404C	1290404CLF	EL2H2MSS	1290404SS	1/4"	1/4"
EL2H3M	1290406C	-	-	-	3/8"	1/4"
EL25H1M	1290502C	-	-	-	1/8"	5/16"
EL25H2M	1290504C	-	-	-	1/4"	5/16"
EL25H3M	1290506C	-	-	-	3/8"	5/16"
EL3H1M	1290602C	-	-	-	1/8"	3/8"
EL3H2M	1290604C	1290604CLF	EL3H2MSS	1290604SS	1/4"	3/8"
EL3H3M	1290606C	1290606CLF	EL3H3MSS	1290606SS	3/8"	3/8"
EL3H4M	1290608C	-	-	-	1/2"	3/8"
EL4H2M	1290804C	-	EL4H2MSS	1290804SS	1/4"	1/2"
EL4H3M	1290806C	-	EL4H3MSS	1290806SS	3/8"	1/2"
EL4H4M	1290808C	-	EL4H4MSS	1290808SS	1/2"	1/2"
EL5H3M	1291006C	-	-	-	3/8"	5/8"
EL5H4M	1291008C	-	-	-	1/2"	5/8"
EL6H4M	1291208C	-	EL6H4MSS	1291208SS	1/2"	3/4"
EL6H6M	1291212C	-	EL6H6MSS	1291212SS	3/4"	3/4"
EL8H6M	1291612C	-	-	-	3/4"	1"
EL8H8M	1291616C*	-	-	-	1"	1"

* Capped

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
