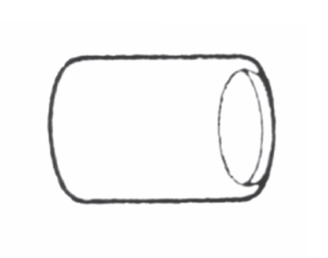

12FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 3/4" Hose ID | 1.50" Ferrule OD

12FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 3/4" Hose ID | 1.50" Ferrule OD | Straight | Trivalent Zinc

Save $0.29 Save $0.29
$2.93
$2.93 - $2.93
$2.93
$2.64
$2.64 - $2.64
$2.64

Couplamatic Inc
Suction and Return Line Couplings - 100R4 Ferrules
Specifications for Variant SKU: 12FHS Couplamatic
Series: Suction & Return Line Coupling Series
Shape (Orientation): Straight
Compatible with the following Series: 104MB Series  |   3284H Series
Features:
  • Stems can be banded or clamped.
  • Trivalent Zinc.
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
Part Number Hose ID Thread Size Tube OD
12FHS 3/4" 1.01" 1.50"
16FHS 1" 1.07" 1.75"
20FHS 1-1/4" 1.52" 2.00"
24FHS 1-1/2" 1.56" 2.25"
32FHS 2" 2.00" 2.75"
