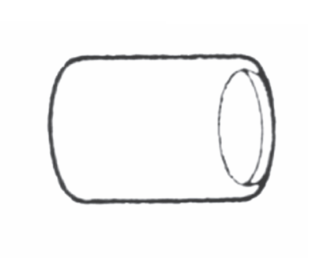

24FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 1-1/2" Hose ID | 2.25" Ferrule OD

24FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 1-1/2" Hose ID | 2.25" Ferrule OD | Straight | Trivalent Zinc

Save $3.98 Save $3.98
$9.95
$9.95 - $9.95
$9.95
$5.97
$5.97 - $5.97
$5.97

Couplamatic Inc
Suction and Return Line Couplings - 100R4 Ferrules
Specifications for Variant SKU: 24FHS Couplamatic
Series: Suction & Return Line Coupling Series
Shape (Orientation): Straight
Compatible with the following Series: 104MB Series  |   3284H Series
Features:
  • Stems can be banded or clamped.
  • Trivalent Zinc.
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
Part Number Hose ID Thread Size Tube OD
12FHS 3/4" 1.01" 1.50"
16FHS 1" 1.07" 1.75"
20FHS 1-1/4" 1.52" 2.00"
24FHS 1-1/2" 1.56" 2.25"
32FHS 2" 2.00" 2.75"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
