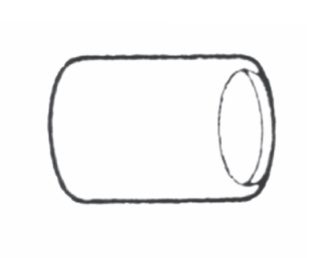

32FHS by Couplamatic | Suction & Return Line Coupling | 100R4 Ferrule | 2" Hose ID | 2.75" Ferrule OD | Straight | Trivalent Zinc

Save $0.94

$9.37

$9.37 - $9.37

$9.37

$8.43

$8.43 - $8.43

$8.43

Couplamatic Inc
Suction and Return Line Couplings - 100R4 Ferrules

Quantity

Specifications for Variant SKU: 32FHS Couplamatic
Series:	Suction & Return Line Coupling Series
Shape (Orientation):	Straight
Compatible with the following Series:	104MB Series \| 3284H Series

Features:
Stems can be banded or clamped. Trivalent Zinc. Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp. 3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.

Part Number	Hose ID	Thread Size	Tube OD
12FHS	3/4"	1.01"	1.50"
16FHS	1"	1.07"	1.75"
20FHS	1-1/4"	1.52"	2.00"
24FHS	1-1/2"	1.56"	2.25"
32FHS	2"	2.00"	2.75"
