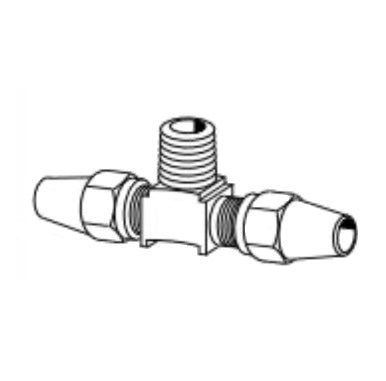

1372X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male Pipe | Brass

1372X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Male Pipe | Brass

$17.34 - $17.34
$17.34
$17.34 - $17.34
$17.34

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector Branch Tee
Specifications for Variant SKU: 1372X6 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120425BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
Body Only
Part Number 		Tube O.D.
A		 Tube O.D.
B		 Male Pipe Thread D M N
1372X6 - 3/8" 3/8" 1/4" 0.312" 0.82" 0.93"
1372X6X6X6 B1372X6X6X6 3/8" 3/8" 3/8" 0.406" 0.85" 0.92"
1372X8 B1372X8 1/2" 1/2" 3/8" 0.406" 0.94" 1.00"
