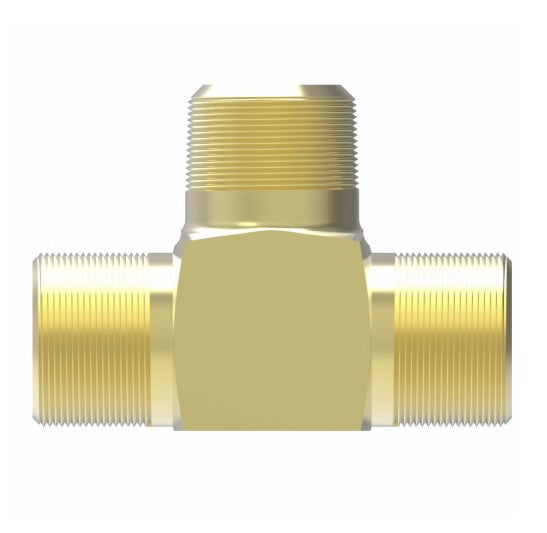

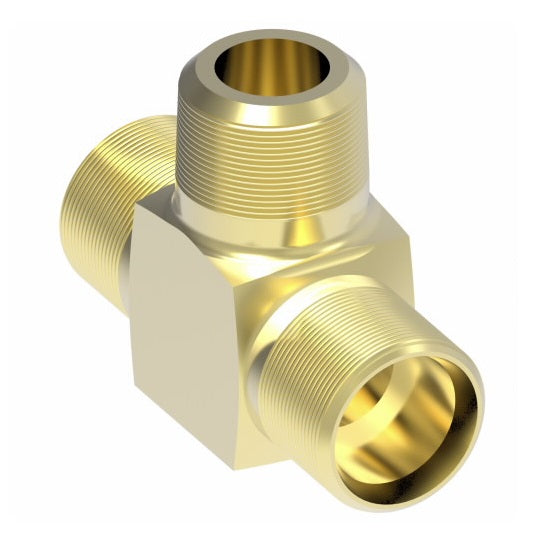

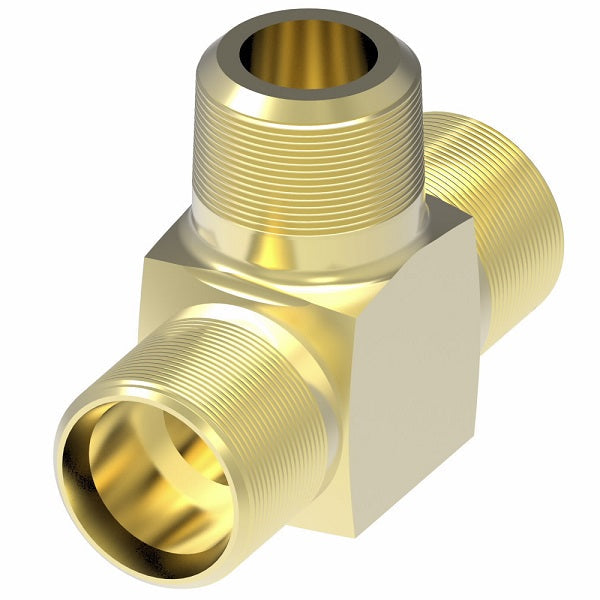

B1372X6X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Male Pipe | Brass

B1372X6X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Male Pipe | Brass

Name: B1372X6X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: B1372X6X6X6 Danfoss
Price: 15.18 USD
Availability: InStock

$15.18 - $15.18

$15.18

$15.18 - $15.18

$15.18

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector Branch Tee

Specifications for Variant SKU: B1372X6X6X6 Danfoss
Shape (Orientation):	Tee
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120425BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass Body Only Part Number	Tube O.D. A	Tube O.D. B	Male Pipe Thread	D	M	N
1372X6	-	3/8"	3/8"	1/4"	0.312"	0.82"	0.93"
1372X6X6X6	B1372X6X6X6	3/8"	3/8"	3/8"	0.406"	0.85"	0.92"
1372X8	B1372X8	1/2"	1/2"	3/8"	0.406"	0.94"	1.00"
