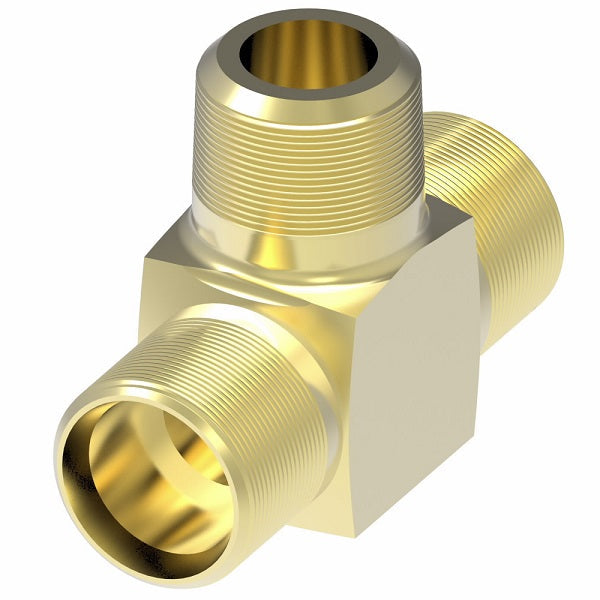

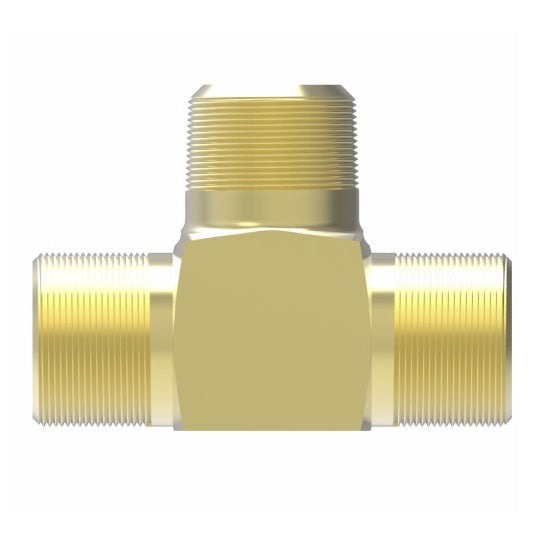

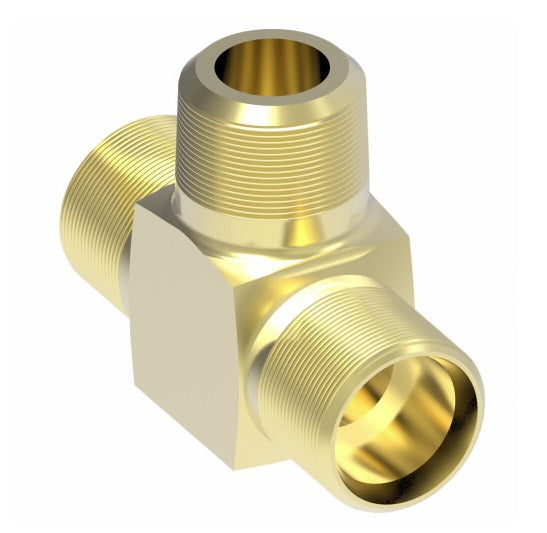

B1372X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass
B1372X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass
B1372X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass
B1372X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass

B1372X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Branch Tee (Body Only) | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass

$26.32 - $26.32
$26.32
$26.32 - $26.32
$26.32

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector Branch Tee
Specifications for Variant SKU: B1372X8 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120425BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
Body Only
Part Number 		Tube O.D.
A		 Tube O.D.
B		 Male Pipe Thread D M N
1372X6 - 3/8" 3/8" 1/4" 0.312" 0.82" 0.93"
1372X6X6X6 B1372X6X6X6 3/8" 3/8" 3/8" 0.406" 0.85" 0.92"
1372X8 B1372X8 1/2" 1/2" 3/8" 0.406" 0.94" 1.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
