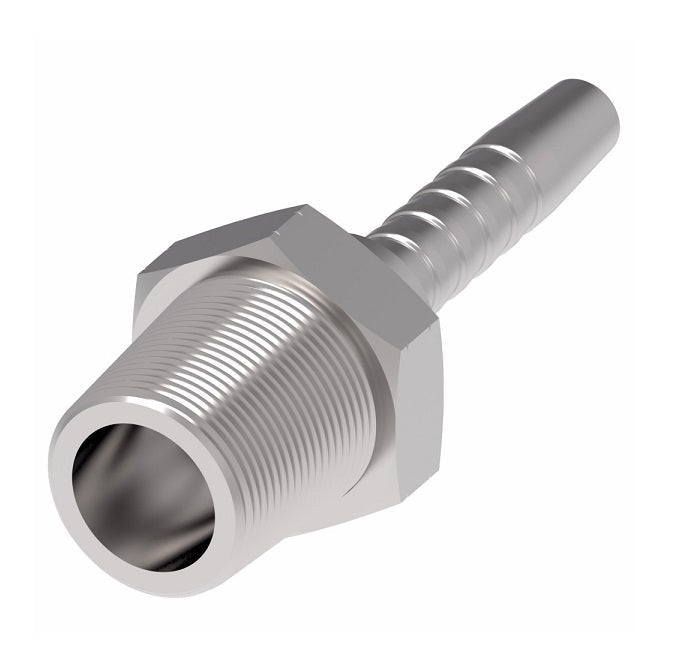

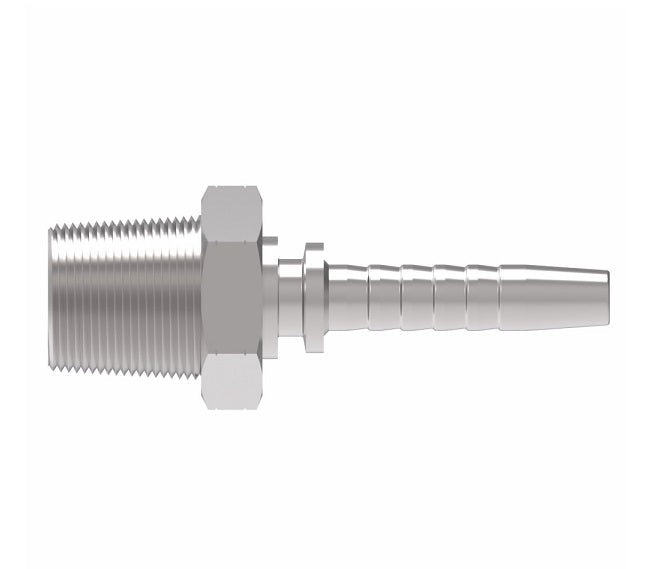

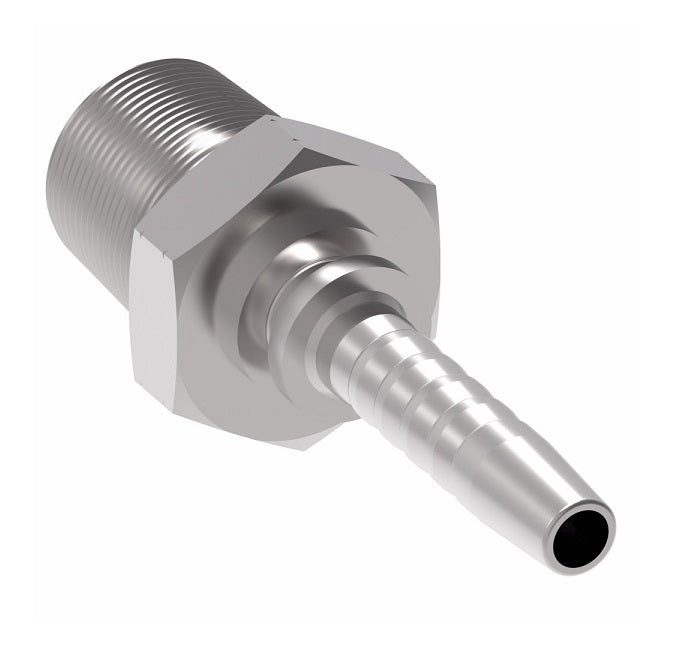

15611-F04-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -04 Male NPTF x -06 Hose Barb | Steel

15611-F04-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -04 Male NPTF x -06 Hose Barb | Steel

Name: 15611-F04-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -04 Male NPTF x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 15611-F04-06ZF Danfoss
Price: 4.76 USD
Availability: InStock

$4.76 - $4.76

$4.76

$4.76 - $4.76

$4.76

Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight

Specifications for Variant SKU: 15611-F04-06ZF Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
15611-F02-04ZF	-02	1/8x27	6	-04	1.99"	0.89"	0.16"	12mm
15611-F04-04ZF	-04	1/4x18	6	-04	2.20"	1.10"	0.16"	17mm
15611-F04-06ZF	-04	1/4x18	10	-06	2.26"	1.08"	0.28"	17mm
15611-F06-06ZF	-06	3/8x18	10	-06	2.32"	1.14"	0.28"	19mm
15611-F08-06ZF	-08	1/2x14	10	-06	2.52"	1.34"	0.28"	22mm
15611-F08-08ZF	-08	1/2x14	12	-08	2.60"	1.36"	0.39"	22mm
15611-F12-12ZF	-12	3/4x14	20	-12	3.03"	1.52"	0.59"	27mm
15611-F16-16ZF	-16	1x11.5	25	-16	3.68"	1.83"	0.83"	36mm
