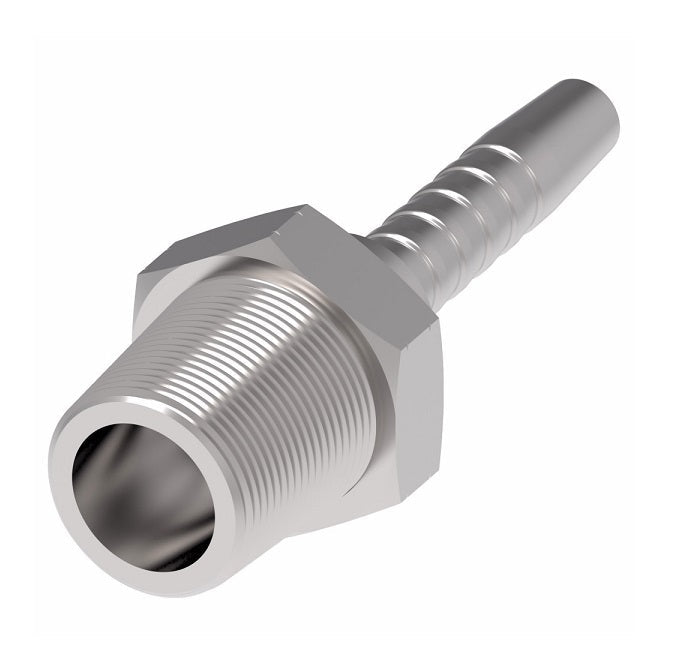

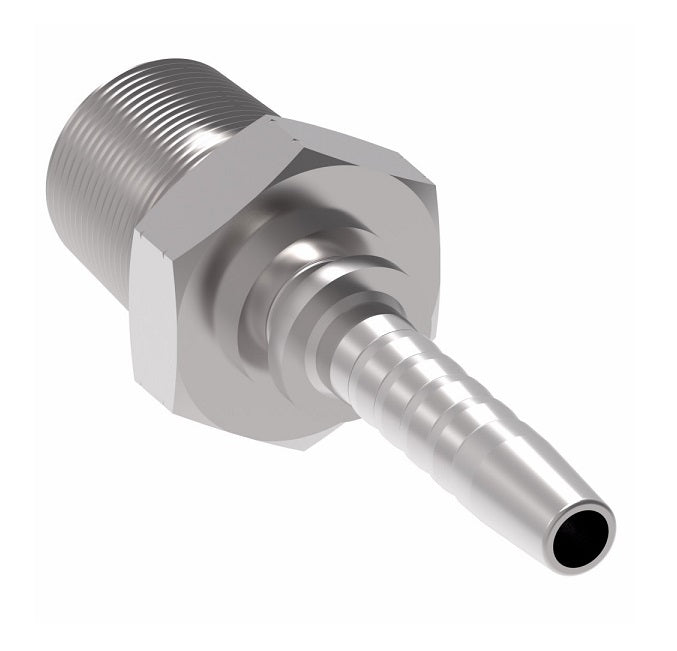

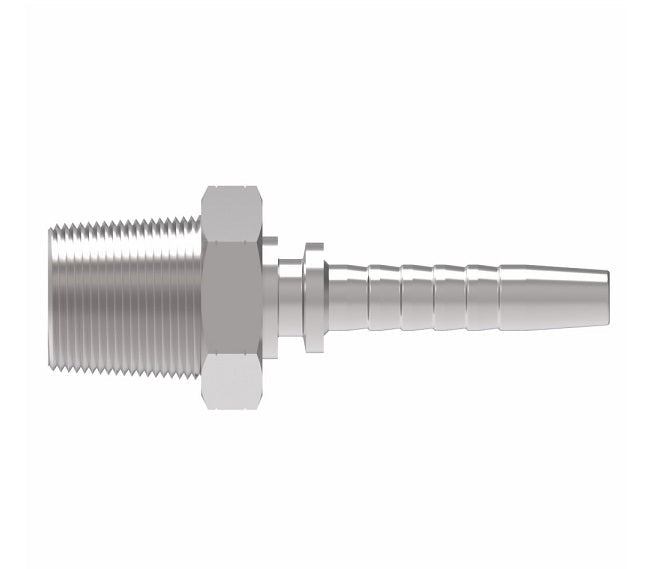

15611-F06-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -06 Male NPTF x -06 Hose Barb | Steel
15611-F06-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -06 Male NPTF x -06 Hose Barb | Steel
15611-F06-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -06 Male NPTF x -06 Hose Barb | Steel
15611-F06-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -06 Male NPTF x -06 Hose Barb | Steel

15611-F06-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -06 Male NPTF x -06 Hose Barb | Steel

$6.61 - $6.61
$6.61
$6.61 - $6.61
$6.61

Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight
Specifications for Variant SKU: 15611-F06-06ZF Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 2
15611-F02-04ZF -02 1/8x27 6 -04 1.99" 0.89" 0.16" 12mm
15611-F04-04ZF -04 1/4x18 6 -04 2.20" 1.10" 0.16" 17mm
15611-F04-06ZF -04 1/4x18 10 -06 2.26" 1.08" 0.28" 17mm
15611-F06-06ZF -06 3/8x18 10 -06 2.32" 1.14" 0.28" 19mm
15611-F08-06ZF -08 1/2x14 10 -06 2.52" 1.34" 0.28" 22mm
15611-F08-08ZF -08 1/2x14 12 -08 2.60" 1.36" 0.39" 22mm
15611-F12-12ZF -12 3/4x14 20 -12 3.03" 1.52" 0.59" 27mm
15611-F16-16ZF -16 1x11.5 25 -16 3.68" 1.83" 0.83" 36mm
