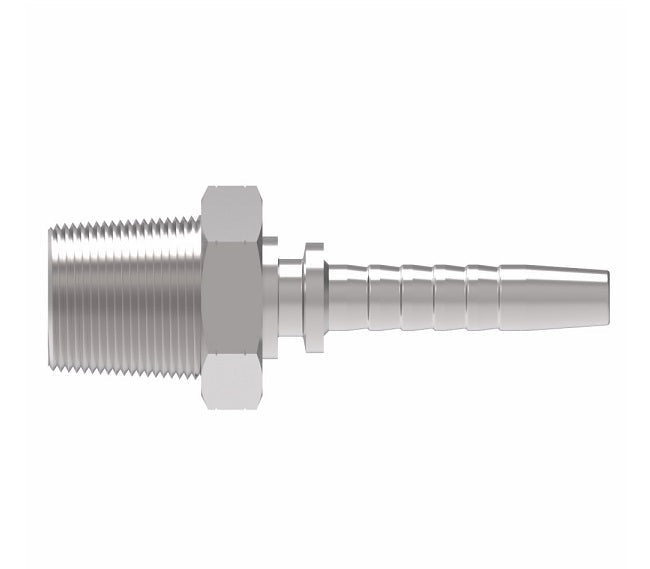

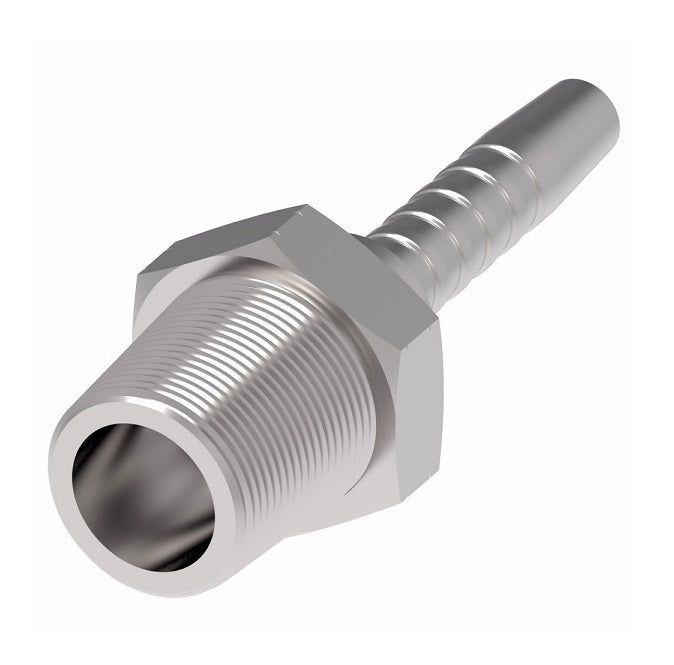

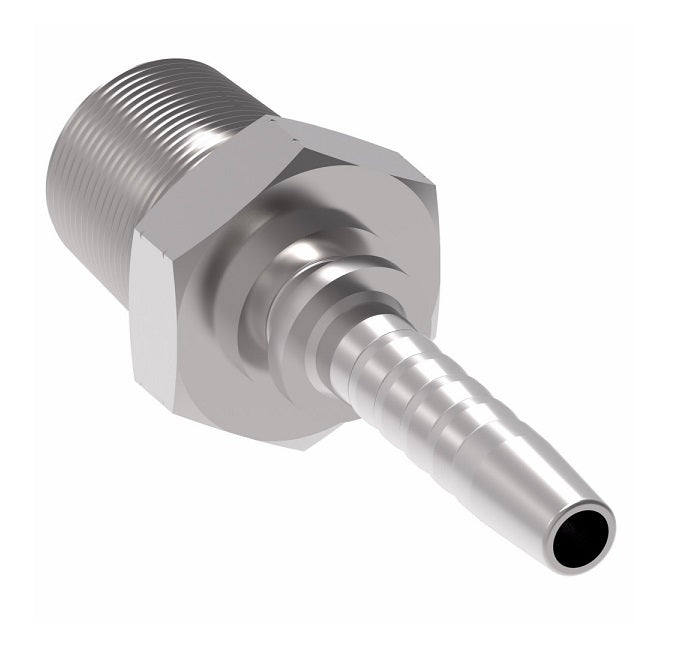

15611-F08-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -08 Male NPTF x -06 Hose Barb | Steel
15611-F08-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -08 Male NPTF x -06 Hose Barb | Steel
15611-F08-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -08 Male NPTF x -06 Hose Barb | Steel
15611-F08-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -08 Male NPTF x -06 Hose Barb | Steel

15611-F08-06ZF Winner by Danfoss | Male NPTF Rigid 2-Piece Hose Crimp Fitting | -08 Male NPTF x -06 Hose Barb | Steel

$10.31 - $10.31
$10.31
$10.31 - $10.31
$10.31

Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight
Specifications for Variant SKU: 15611-F08-06ZF Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 2
15611-F02-04ZF -02 1/8x27 6 -04 1.99" 0.89" 0.16" 12mm
15611-F04-04ZF -04 1/4x18 6 -04 2.20" 1.10" 0.16" 17mm
15611-F04-06ZF -04 1/4x18 10 -06 2.26" 1.08" 0.28" 17mm
15611-F06-06ZF -06 3/8x18 10 -06 2.32" 1.14" 0.28" 19mm
15611-F08-06ZF -08 1/2x14 10 -06 2.52" 1.34" 0.28" 22mm
15611-F08-08ZF -08 1/2x14 12 -08 2.60" 1.36" 0.39" 22mm
15611-F12-12ZF -12 3/4x14 20 -12 3.03" 1.52" 0.59" 27mm
15611-F16-16ZF -16 1x11.5 25 -16 3.68" 1.83" 0.83" 36mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
