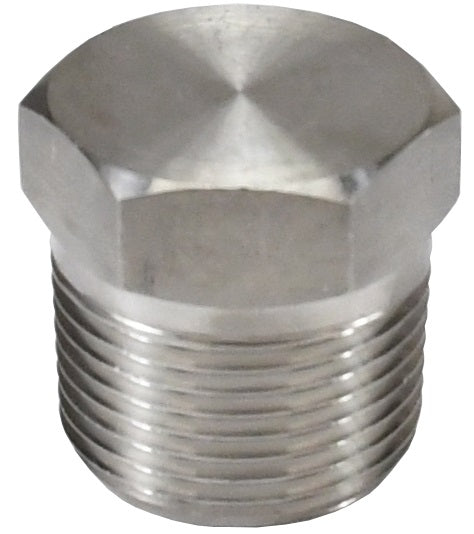

1630600SS by Dixon Valve | Hex Head Plug | 3/8" Male NPT | 316 Stainless Steel

1630600SS by Dixon Valve | Hex Head Plug | 3/8" Male NPT | 316 Stainless Steel

$3.20 - $3.20
$3.20
$3.27
$3.27 - $3.27
$3.27

Dixon Valve
Pipe Fitting | Hex Head Plug | Male NPT

For closing and terminating pipe ends for any low to medium pressure line connection.
Specifications for Variant SKU: 1630600SS Dixon
Series: 163 Series
Shape (Orientation): No Orientation
Ends Configuration: 3/8in Male NPT
Material(s): 316 Stainless Steel
Applications:
  • Use with brass, copper, or iron pipe, air, natural gas, oil, potable water.
Specifications:
  • Lead-free per NSF/ANSI 372, Brass Alloy 270.
  • Reference SAE J531.
  • Material per SAE J463.
  • Parts are RoHS and SWDA compliant.
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
  • Standard brass hex head plug is hollow; lead-free brass is solid.
  • Male NPTF threads to mate with compatible female thread. Sealant may be required if mating with NPT threads.
Brass Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number
(NPT THREADS) 		Male NPTF
Part Number Previous Part Number
1630200C HHP1M 1630200CLF 1630200SS 1/8"
1630400C HHP2M 1630400CLF 1630400SS 1/4"
1630600C HHP3M 1630600CLF 1630600SS 3/8"
1630800C HHP3M 1630800CLF 1630800SS 1/2"
1631200C HHP6M 1631200CLF 1631200SS 3/4"
1631600C HHP8M 1631600CLF 1631600SS 1"
