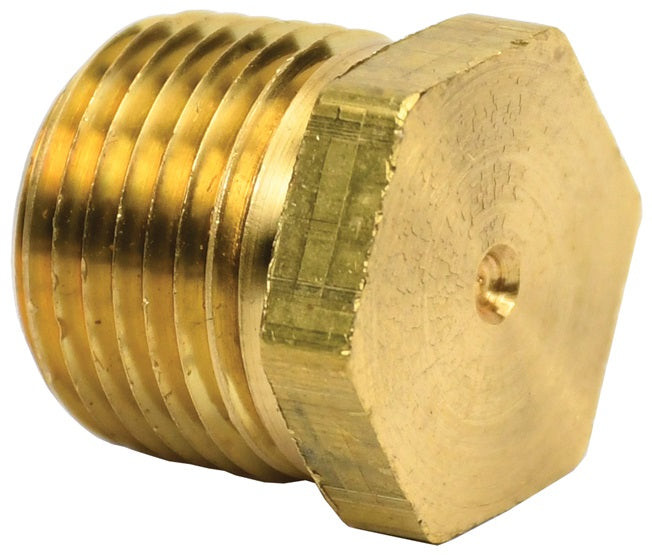

1630800CLF by Dixon Valve | Hex Head Plug | 1/2" Male NPTF | Lead-Free Brass

1630800CLF by Dixon Valve | Hex Head Plug | 1/2" Male NPTF | Lead-Free Brass

Save $0.41 Save $0.41
$4.96
$4.96 - $4.96
$4.96
$4.55
$4.55 - $4.55
$4.55

Dixon Valve
Pipe Fitting | Hex Head Plug | Male NPTF

For use with potable water or where "Lead Free" fittings are required.

For closing and terminating pipe ends for any low to medium pressure line connection.
Specifications for Variant SKU: 1630800CLF Dixon
Series: 163 Series
Ends Configuration: 1/2in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Lead Free
Applications:
  • Use with brass, copper, or iron pipe, air, natural gas, oil, potable water.
Specifications:
  • Lead-free per NSF/ANSI 372, Brass Alloy 270.
  • Reference SAE J531.
  • Material per SAE J463.
  • Parts are RoHS and SWDA compliant.
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
  • Standard brass hex head plug is hollow; lead-free brass is solid.
  • Male NPTF threads to mate with compatible female thread. Sealant may be required if mating with NPT threads.
Brass Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number
(NPT THREADS) 		Male NPTF
Part Number Previous Part Number
1630200C HHP1M 1630200CLF 1630200SS 1/8"
1630400C HHP2M 1630400CLF 1630400SS 1/4"
1630600C HHP3M 1630600CLF 1630600SS 3/8"
1630800C HHP3M 1630800CLF 1630800SS 1/2"
1631200C HHP6M 1631200CLF 1631200SS 3/4"
1631600C HHP8M 1631600CLF 1631600SS 1"
