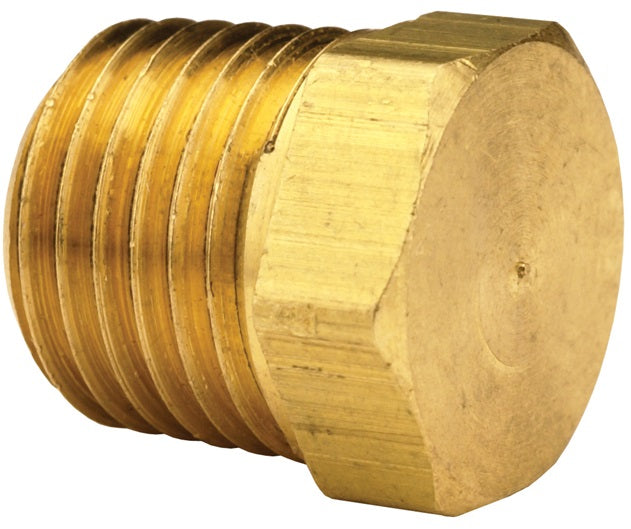

1631600C by Dixon Valve | Hex Head Plug | 1" Male NPTF | Brass

Save $0.68 Save $0.68
Original price $8.20
Original price $8.20 - Original price $8.20
Original price $8.20
Current price $7.52
$7.52 - $7.52
Current price $7.52

Dixon Valve
Pipe Fitting | Hex Head Plug | Male NPTF

For closing and terminating pipe ends for any low to medium pressure line connection.


Specifications for Variant SKU: 1631600C Dixon
Series: 163 Series
Ends Configuration: 1in Male NPTF
Material(s): Brass
Applications:
  • Use with brass, copper, or iron pipe, air, natural gas, oil, potable water.
Specifications:
  • Lead-free per NSF/ANSI 372, Brass Alloy 270.
  • Reference SAE J531.
  • Material per SAE J463.
  • Parts are RoHS and SWDA compliant.
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
  • Standard brass hex head plug is hollow; lead-free brass is solid.
  • Male NPTF threads to mate with compatible female thread. Sealant may be required if mating with NPT threads.
Brass Lead-Free Brass
Part Number
316 Stainless Steel
Part Number
(NPT THREADS)
Male NPTF
Part Number Previous Part Number
1630200C HHP1M 1630200CLF 1630200SS 1/8"
1630400C HHP2M 1630400CLF 1630400SS 1/4"
1630600C HHP3M 1630600CLF 1630600SS 3/8"
1630800C HHP3M 1630800CLF 1630800SS 1/2"
1631200C HHP6M 1631200CLF 1631200SS 3/4"
1631600C HHP8M 1631600CLF 1631600SS 1"
