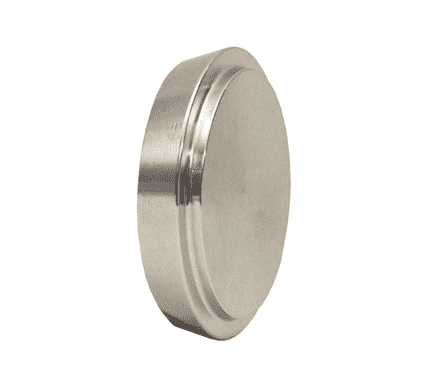

16AMP-R250DIN Dixon Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 2-1/2" Tube OD - 65 DN Size

16AMP-R250DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 2-1/2" Tube OD - 65 DN Size

Save $28.74 Save $28.74
$71.85
$71.85 - $71.85
$71.85
$43.11
$43.11 - $43.11
$43.11

Dixon's Bradford™ Sanitary European Fittings - DIN Blank Caps - 316 Stainless Steel


Specifications for Variant SKU: 16AMP-R250DIN Dixon
Material(s): 316 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions Weight (Lbs.)
A B C D
16AMP-R100DIN 1" 25 .51" 1.73" .39" 1.38" 0.1300
16AMP-R150DIN 1-1/2" 40 .51" 2.20" .39" 1.89" 0.2300
16AMP-R200DIN 2" 50 .55" 2.68" .43" 2.40" 0.3300
16AMP-R250DIN 2-1/2" 65 .63" 3.39" .47" 3.11" 0.6100
16AMP-R300DIN 3" 80 .63" 3.66" .47" 3.39" 0.7500
16AMP-R400DIN 4" 100 .79" 4.76" .59" 4.49" 1.2900
