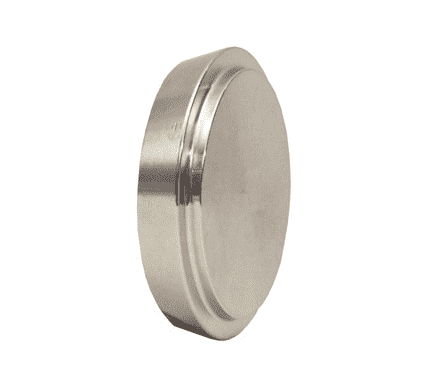

16AMP-R300DIN Dixon Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 3" Tube OD - 80 DN Size

16AMP-R300DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 3" Tube OD - 80 DN Size

Save $1.21 Save $1.21
$58.60
$58.60 - $58.60
$58.60
$57.39
$57.39 - $57.39
$57.39

Dixon's Bradford™ Sanitary European Fittings - DIN Blank Caps - 316 Stainless Steel


Specifications for Variant SKU: 16AMP-R300DIN Dixon
Material(s): 316 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions Weight (Lbs.)
A B C D
16AMP-R100DIN 1" 25 .51" 1.73" .39" 1.38" 0.1300
16AMP-R150DIN 1-1/2" 40 .51" 2.20" .39" 1.89" 0.2300
16AMP-R200DIN 2" 50 .55" 2.68" .43" 2.40" 0.3300
16AMP-R250DIN 2-1/2" 65 .63" 3.39" .47" 3.11" 0.6100
16AMP-R300DIN 3" 80 .63" 3.66" .47" 3.39" 0.7500
16AMP-R400DIN 4" 100 .79" 4.76" .59" 4.49" 1.2900
