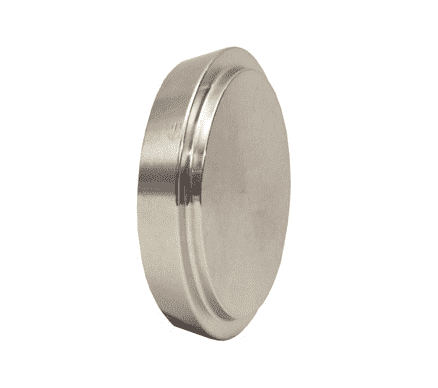

16AMP-R400DIN Dixon Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 4" Tube OD - 100 DN Size

16AMP-R400DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Blank Cap - 4" Tube OD - 100 DN Size

Save $60.65 Save $60.65
$151.62
$151.62 - $151.62
$151.62
$90.97
$90.97 - $90.97
$90.97

Dixon's Bradford™ Sanitary European Fittings - DIN Blank Caps - 316 Stainless Steel


Specifications for Variant SKU: 16AMP-R400DIN Dixon
Material(s): 316 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions Weight (Lbs.)
A B C D
16AMP-R100DIN 1" 25 .51" 1.73" .39" 1.38" 0.1300
16AMP-R150DIN 1-1/2" 40 .51" 2.20" .39" 1.89" 0.2300
16AMP-R200DIN 2" 50 .55" 2.68" .43" 2.40" 0.3300
16AMP-R250DIN 2-1/2" 65 .63" 3.39" .47" 3.11" 0.6100
16AMP-R300DIN 3" 80 .63" 3.66" .47" 3.39" 0.7500
16AMP-R400DIN 4" 100 .79" 4.76" .59" 4.49" 1.2900
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
