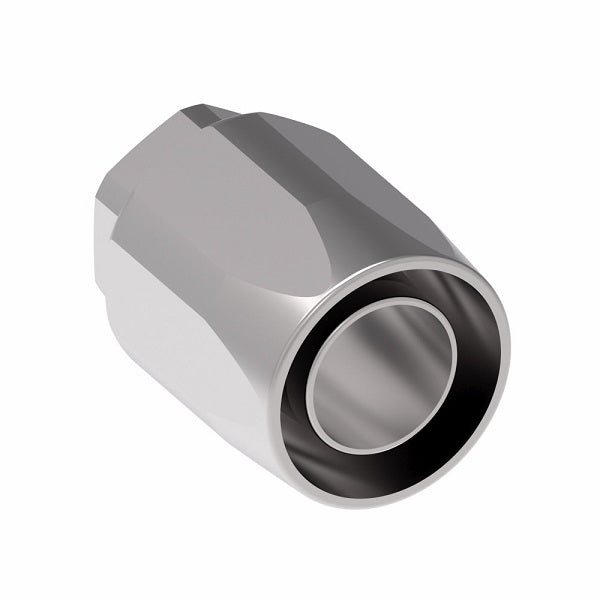

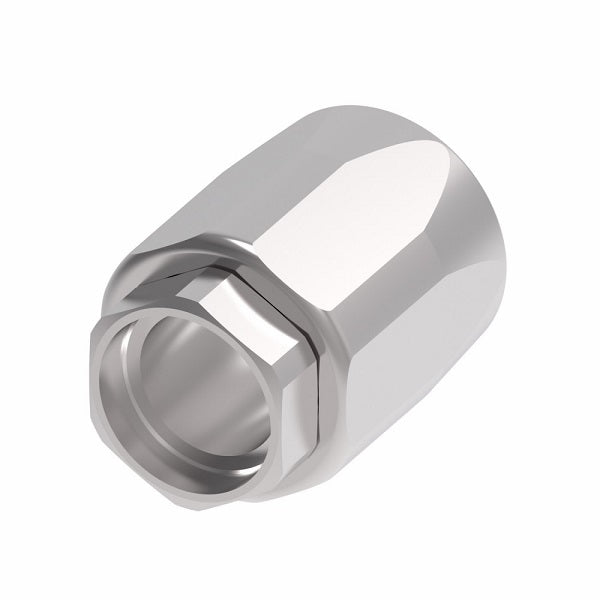

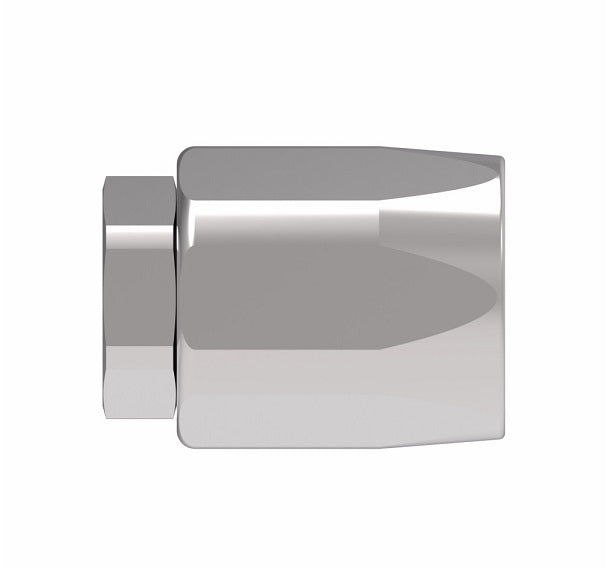

190000-24S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -24 Lifesaver x -24 Reusable Hose End | Steel

Name: 190000-24S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -24 Lifesaver x -24 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190000-24S Danfoss
Price: 73.22 USD
Availability: InStock

$73.22 - $73.22

$73.22

$73.22 - $73.22

$73.22

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Lifesaver - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190000-24S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Braze End, 1-1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Tube	A	B**	D	EØ
190000-4S	-04	1/4"	1.36"	0.25"	0.62"	0.13"
190000-5S	-05	5/16"	1.53"	0.31"	0.75"	0.18"
190000-5-6S	-06	5/16"	1.63"	0.31"	0.73"	0.24"
190000-6S	-06	3/8"	1.63"	0.38"	0.73"	0.24"
190000-6-8S	-08	3/8"	2.04"	0.38"	0.89"	0.28"
190000-8S	-08	1/2"	2.04"	0.50"	0.89"	0.36"
190000-10S	-10	5/8"	2.19"	0.62"	0.90"	0.46"
190000-12S	-12	3/4"	2.49"	0.75"	0.92"	0.55"
190000-16S	-16	1"	2.05"	1.00"	0.78"	0.82"
190000-20S	-20	1-1/4"	2.26"	1.25"	0.90"	1.05"
190000-24S	-24	1/2"	2.42"	1.50"	0.97"	1.28"
190000-32S	-32	2"	2.89"	2.00"	1.05"	1.75"
190000-40S	-40	2-1/2"	3.26"	2.50"	1.36"	2.21"

** "B" dimension is counterbore diameter for mating tubing
