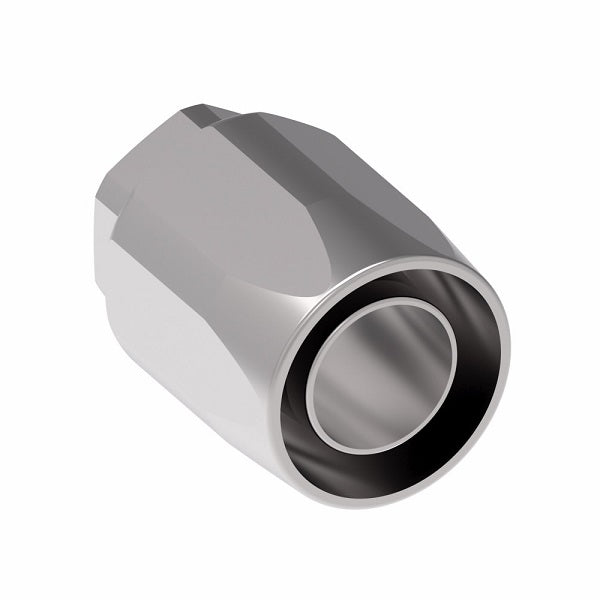

190000-32S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -32 Lifesaver x -32 Reusable Hose End | Steel

190000-32S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -32 Lifesaver x -32 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,245.00 - $1,245.00

$1,245.00

$1,245.00 - $1,245.00

$1,245.00

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Lifesaver - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190000-32S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	2in Braze End, 2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Tube	A	B**	D	EØ
190000-4S	-04	1/4"	1.36"	0.25"	0.62"	0.13"
190000-5S	-05	5/16"	1.53"	0.31"	0.75"	0.18"
190000-5-6S	-06	5/16"	1.63"	0.31"	0.73"	0.24"
190000-6S	-06	3/8"	1.63"	0.38"	0.73"	0.24"
190000-6-8S	-08	3/8"	2.04"	0.38"	0.89"	0.28"
190000-8S	-08	1/2"	2.04"	0.50"	0.89"	0.36"
190000-10S	-10	5/8"	2.19"	0.62"	0.90"	0.46"
190000-12S	-12	3/4"	2.49"	0.75"	0.92"	0.55"
190000-16S	-16	1"	2.05"	1.00"	0.78"	0.82"
190000-20S	-20	1-1/4"	2.26"	1.25"	0.90"	1.05"
190000-24S	-24	1/2"	2.42"	1.50"	0.97"	1.28"
190000-32S	-32	2"	2.89"	2.00"	1.05"	1.75"
190000-40S	-40	2-1/2"	3.26"	2.50"	1.36"	2.21"

** "B" dimension is counterbore diameter for mating tubing

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
