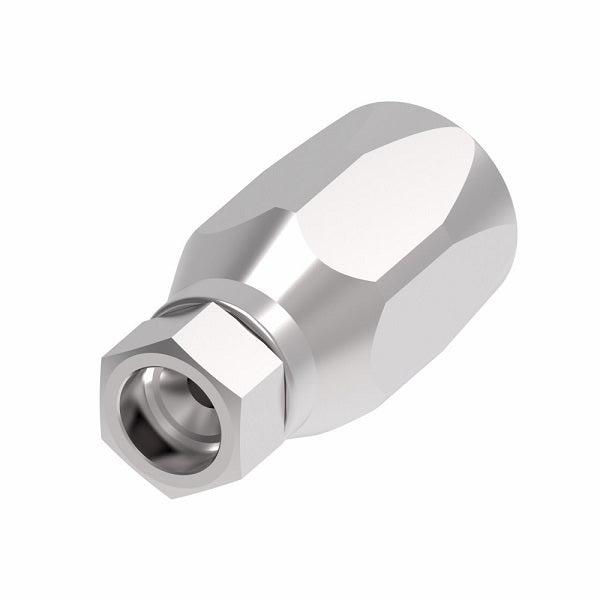

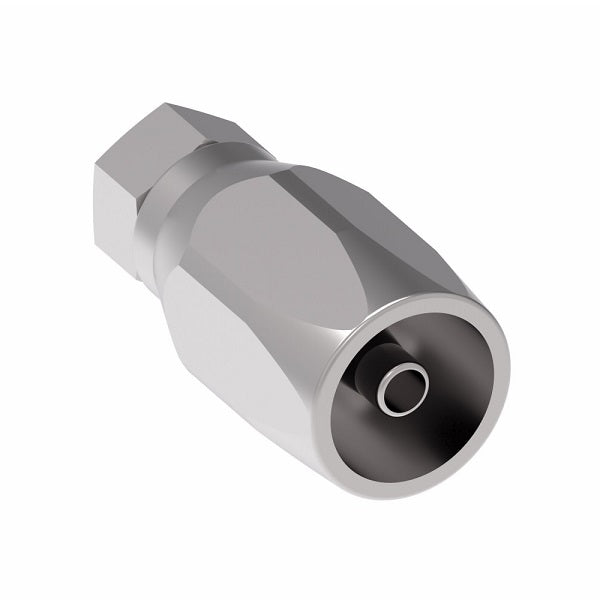

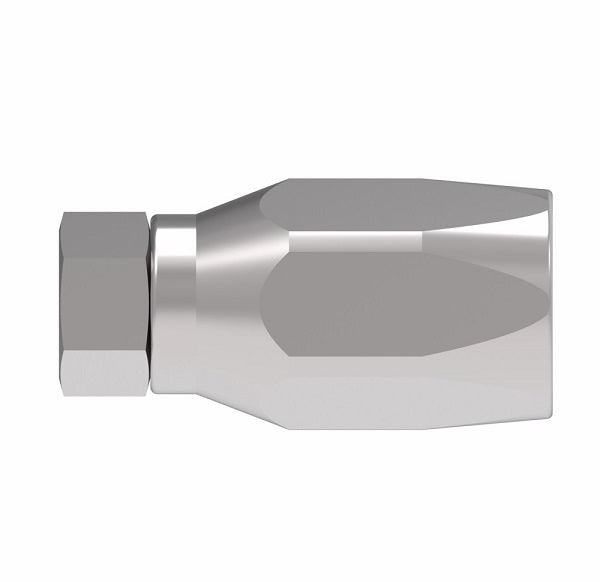

190000-8S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -08 Lifesaver x -08 Reusable Hose End | Steel
190000-8S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -08 Lifesaver x -08 Reusable Hose End | Steel
190000-8S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -08 Lifesaver x -08 Reusable Hose End | Steel
190000-8S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -08 Lifesaver x -08 Reusable Hose End | Steel

190000-8S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -08 Lifesaver x -08 Reusable Hose End | Steel

$19.19 - $19.19
$19.19
$19.19 - $19.19
$19.19

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Lifesaver - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190000-8S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Braze End, 1/2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Tube A B** D EØ
190000-4S -04 1/4" 1.36" 0.25" 0.62" 0.13"
190000-5S -05 5/16" 1.53" 0.31" 0.75" 0.18"
190000-5-6S -06 5/16" 1.63" 0.31" 0.73" 0.24"
190000-6S -06 3/8" 1.63" 0.38" 0.73" 0.24"
190000-6-8S -08 3/8" 2.04" 0.38" 0.89" 0.28"
190000-8S -08 1/2" 2.04" 0.50" 0.89" 0.36"
190000-10S -10 5/8" 2.19" 0.62" 0.90" 0.46"
190000-12S -12 3/4" 2.49" 0.75" 0.92" 0.55"
190000-16S -16 1" 2.05" 1.00" 0.78" 0.82"
190000-20S -20 1-1/4" 2.26" 1.25" 0.90" 1.05"
190000-24S -24 1/2" 2.42" 1.50" 0.97" 1.28"
190000-32S -32 2" 2.89" 2.00" 1.05" 1.75"
190000-40S -40 2-1/2" 3.26" 2.50" 1.36" 2.21"

** "B" dimension is counterbore diameter for mating tubing
