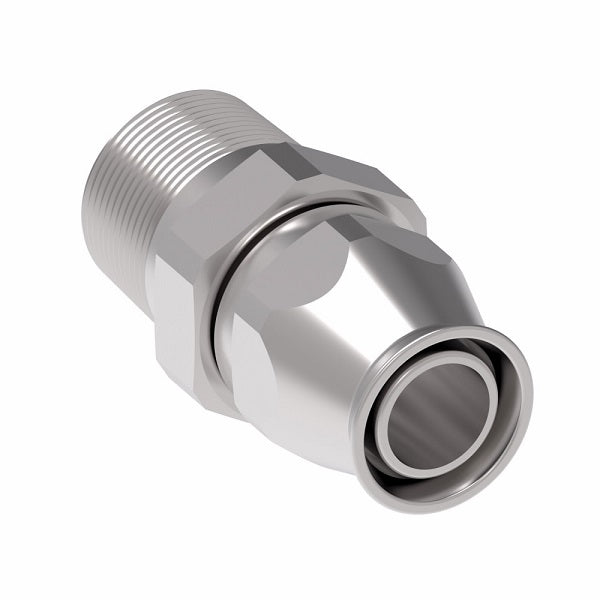

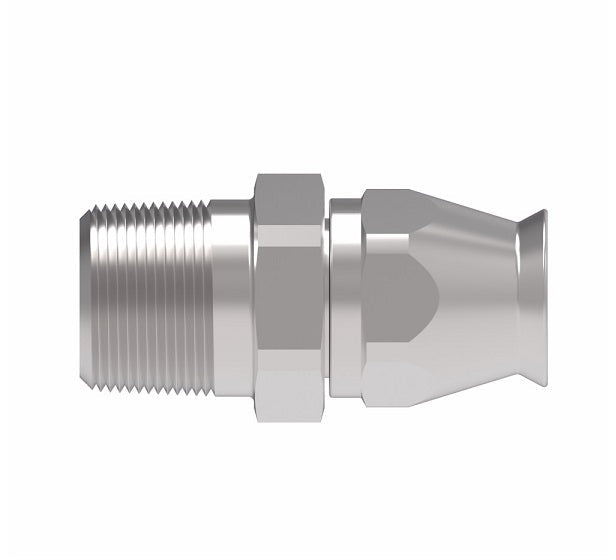

190627-8-8C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -08 Reusable Hose End | Stainless Steel

190627-8-8C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -08 Reusable Hose End | Stainless Steel

Name: 190627-8-8C Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -08 Male Pipe x -08 Reusable Hose End | Stainless Steel
Brand: Danfoss/Eaton
SKU: 190627-8-8C Danfoss
Price: 113.77 USD
Availability: InStock

$113.77 - $113.77

$113.77

$113.77 - $113.77

$113.77

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190627-8-8C Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Reusable Hose End
Material(s):	Stainless Steel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
38-190627-2-4	190627-2-4C	-04	1/8-27	1.35"	0.89"	0.16"	900568-4B	900568-4C
38-190627-4-4	-	-04	1/4-18	1.54"	1.08"	0.16"	900568-4B	900568-4C
38-190627-4-5	-	-05	1/4-18	1.58"	1.07"	0.23"	900568-5B	900568-5C
38-190627-4-6	-	-06	1/4-18	1.66"	1.13"	0.28"	900568-6B	900568-6C
38-190627-6-6	190627-6-6C	-06	3/8-18	1.66"	1.13"	0.28"	900568-6B	900568-6C
38-190627-6-8	-	-08	3/8-18	1.79"	1.16"	0.38"	900568-8B	900568-8C
-	190627-8-8C	-08	1/2-14	2.05"	1.41"	0.38	900568-8B	900568-8C
38-190627-8-10	190627-8-10C	-10	1-1/2-14	2.13"	1.46"	0.47"	900568-10B	900568-10C
38-190627-12-12	190627-12-12C	-12	3/4-14	2.26"	1.61"	0.59"	900568-12B	900568-12C
38-190627-16-16	-	-16	1-11-1/2	2.48"	1.86"	0.83"	900568-16B	900568-16C
38-190627-20-20	-	-20	1-1/4-11-1/2	2.83"	2.17"	1.06"	900568-20B	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
