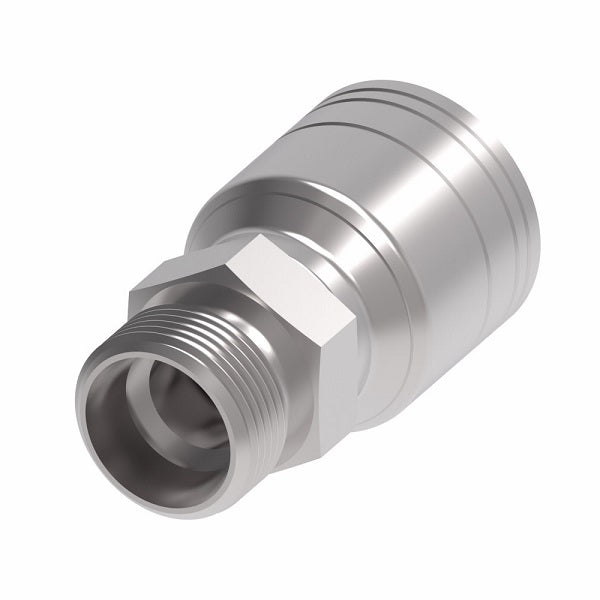

1A12DK8 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L15 Male DKO/DIN x -08 Hose Barb | Steel

1A12DK8 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L15 Male DKO/DIN x -08 Hose Barb | Steel

Name: 1A12DK8 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L15 Male DKO/DIN x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A12DK8 Danfoss
Price: 35.25 USD
Availability: InStock

$35.25 - $35.25

$35.25

$35.25 - $35.25

$35.25

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN 24° Male, Light Duty Crimp Fitting (DK) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A12DK8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	L15 Male DIN, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	E&Oslash	Hex 2
1A5DK4	M12 x 1.5	6	-04	1.76"	0.84"	0.16"	0.47"
1A6DK4	M14 x 1.5	8	-04	1.75"	0.83"	0.16"	0.55"
1A8DK4	M16 X 1.5	10	-04	1.81"	0.89"	0.17"	0.67"
1A8DK6	M16 x 1.5	10	-06	2.05"	1.05"	0.26"	0.67"
1A10DK6	M18 x 1.5	12	-06	1.93"	0.93"	0.26"	0.75"
1A12DK8	M22 x 1.5	15	-08	2.20"	1.03"	0.38"	0.94"
1A16DK10	M26 x 1.5	18	-10	2.20"	1.05"	0.50"	1.06"
1A20DK12	M30 x 2	22	-12	2.44"	1.25"	0.61"	1.26"
1A25DK16	M36 x 2	28	-16	2.60"	1.24"	0.81"	1.61"
1A32DK20	M45 x 2	35	-20	3.12"	1.39"	1.05"	1.81"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
