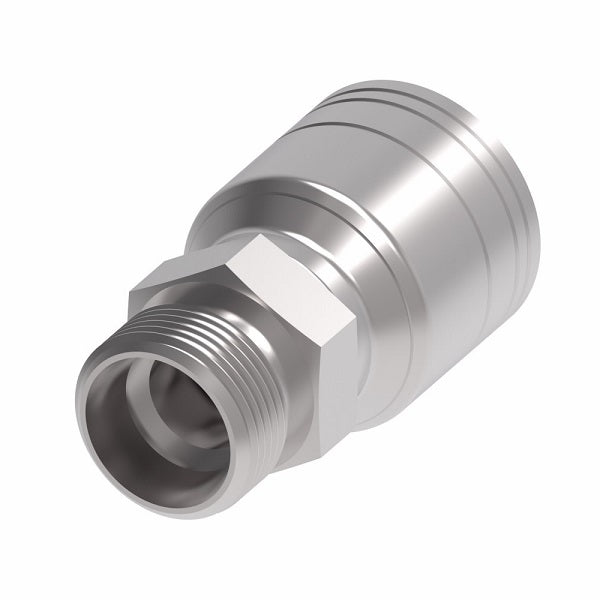

1A16DK10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L18 Male DKO/DIN x -10 Hose Barb | Steel

1A16DK10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L18 Male DKO/DIN x -10 Hose Barb | Steel

Name: 1A16DK10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L18 Male DKO/DIN x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16DK10 Danfoss
Price: 41.32 USD
Availability: InStock

$41.32 - $41.32

$41.32

$41.32 - $41.32

$41.32

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN 24° Male, Light Duty Crimp Fitting (DK) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A16DK10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	L18 Male DIN, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	E&Oslash	Hex 2
1A5DK4	M12 x 1.5	6	-04	1.76"	0.84"	0.16"	0.47"
1A6DK4	M14 x 1.5	8	-04	1.75"	0.83"	0.16"	0.55"
1A8DK4	M16 X 1.5	10	-04	1.81"	0.89"	0.17"	0.67"
1A8DK6	M16 x 1.5	10	-06	2.05"	1.05"	0.26"	0.67"
1A10DK6	M18 x 1.5	12	-06	1.93"	0.93"	0.26"	0.75"
1A12DK8	M22 x 1.5	15	-08	2.20"	1.03"	0.38"	0.94"
1A16DK10	M26 x 1.5	18	-10	2.20"	1.05"	0.50"	1.06"
1A20DK12	M30 x 2	22	-12	2.44"	1.25"	0.61"	1.26"
1A25DK16	M36 x 2	28	-16	2.60"	1.24"	0.81"	1.61"
1A32DK20	M45 x 2	35	-20	3.12"	1.39"	1.05"	1.81"
