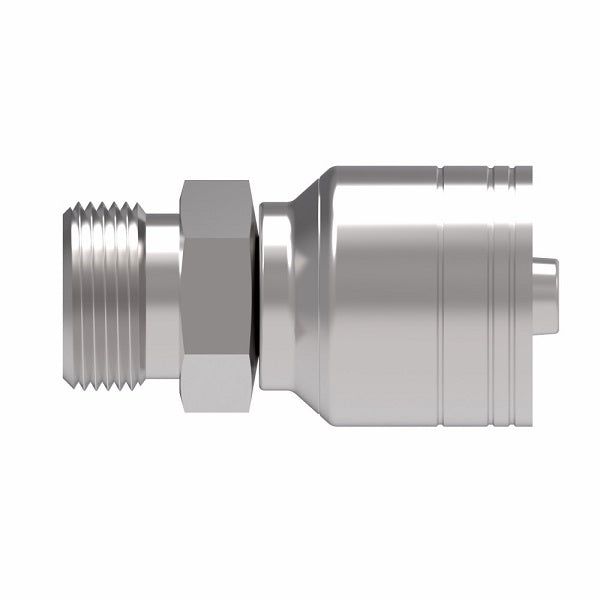

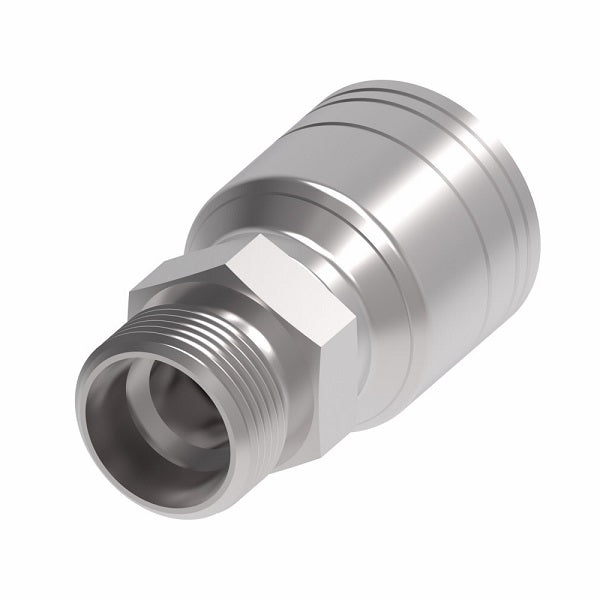

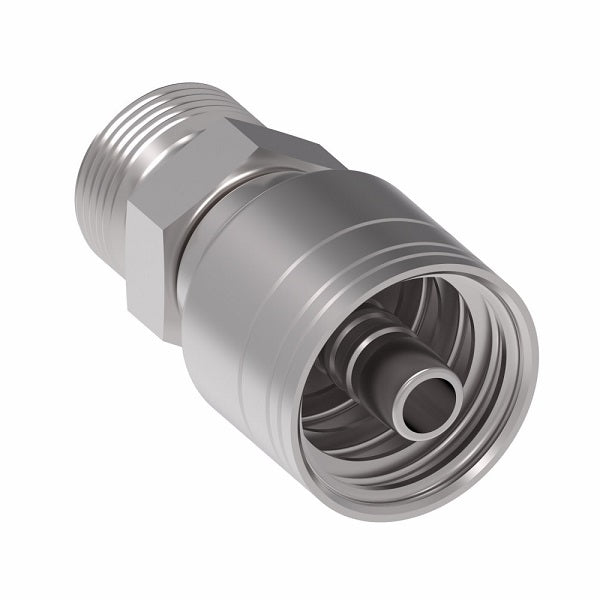

1A32DK20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L35 Male DKO/DIN x -20 Hose Barb | Steel
1A32DK20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L35 Male DKO/DIN x -20 Hose Barb | Steel
1A32DK20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L35 Male DKO/DIN x -20 Hose Barb | Steel

1A32DK20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L35 Male DKO/DIN x -20 Hose Barb | Steel

$153.92 - $153.92
$153.92
$153.92 - $153.92
$153.92

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN 24° Male, Light Duty Crimp Fitting (DK) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A32DK20 Danfoss
Shape (Orientation): Straight
Ends Configuration: L35 Male DIN, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread
T		 Tube OD Hose Size A D E&Oslash Hex 2
1A5DK4 M12 x 1.5 6 -04 1.76" 0.84" 0.16" 0.47"
1A6DK4 M14 x 1.5 8 -04 1.75" 0.83" 0.16" 0.55"
1A8DK4 M16 X 1.5 10 -04 1.81" 0.89" 0.17" 0.67"
1A8DK6 M16 x 1.5 10 -06 2.05" 1.05" 0.26" 0.67"
1A10DK6 M18 x 1.5 12 -06 1.93" 0.93" 0.26" 0.75"
1A12DK8 M22 x 1.5 15 -08 2.20" 1.03" 0.38" 0.94"
1A16DK10 M26 x 1.5 18 -10 2.20" 1.05" 0.50" 1.06"
1A20DK12 M30 x 2 22 -12 2.44" 1.25" 0.61" 1.26"
1A25DK16 M36 x 2 28 -16 2.60" 1.24" 0.81" 1.61"
1A32DK20 M45 x 2 35 -20 3.12" 1.39" 1.05" 1.81"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
