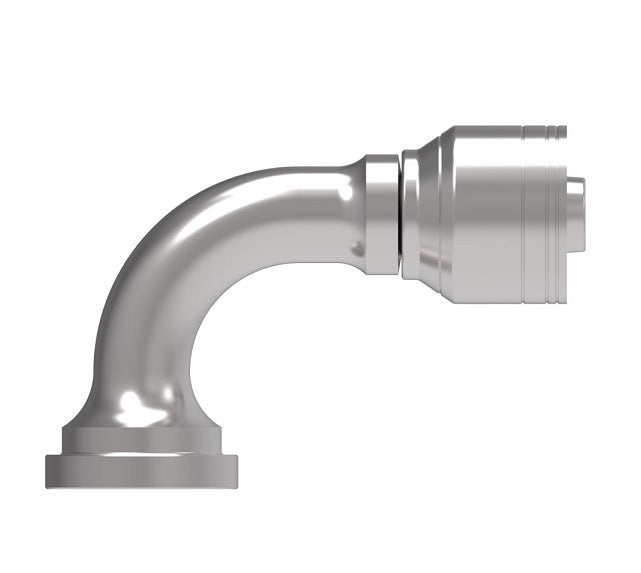

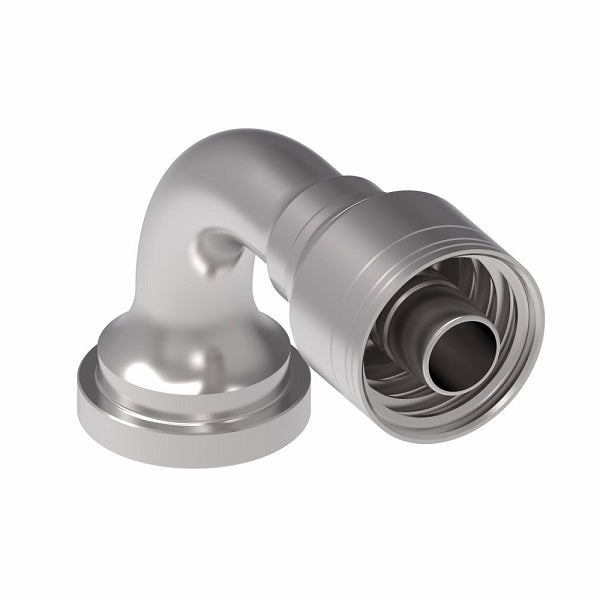

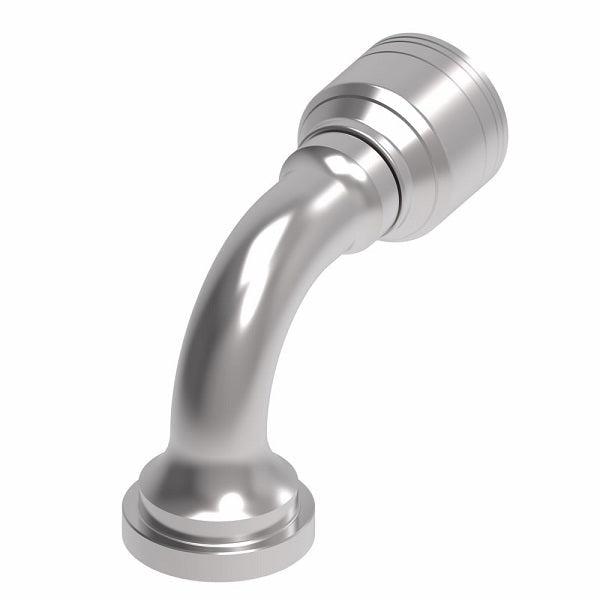

1A12FLB8 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel

1A12FLB8 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$541.80 - $541.80

$541.80

$541.80 - $541.80

$541.80

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLB) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A12FLB8 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Code 61 Flange, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thd. Flange Head Diameter KØ	Hose Size	A	D	EØ	H
1A8FLB8	-	1.19"	-08	2.86"	1.69"	0.37"	1.63"
1A12FLB8	-	1.50"	-08	3.45"	2.28"	0.37"	2.13"
1A12FLB10	-	1.50"	-10	3.44"	2.29"	0.50"	2.13"
1A12FLB12	-	1.50"	-12	3.49"	2.30"	0.58"	2.13"
1A16FLB12	-	1.75"	-12	4.03"	2.84"	0.58"	2.38"
1A20FLB12	-	2.00"	-12	4.67"	3.48"	0.58"	2.62"
1A12FLB16	-	1.50"	-16	4.20"	2.85"	0.76"	2.17"
1A16FLB16	-	1.75"	-16	4.22"	2.86"	0.76"	2.38"
1A20FLB16	-	2.00"	-16	4.85"	3.50"	0.76"	2.62"
1A24FLB16	-	2.37"	-16	5.59"	4.24"	0.76"	3.12"
1A16FLB20	-	1.75"	-20	4.66"	2.93"	0.76"	2.38"
1A20FLB20	1A20FLB20TZ	2.00"	-20	5.30"	3.57"	1.01"	2.62"
1A20FLB20.090	-	-	-20	-	-	-	-
1A20FLB20.189	-	-	-20	-	-	-	-
1A24FLB20	-	2.37"	-20	6.04"	4.31"	1.01"	3.12"
1A16FLB24	-	1.75"	-24	4.80"	2.97"	0.76"	2.38"
1A20FLB24	-	2.00"	-24	5.43"	3.61"	1.01"	2.62"
1A24FLB24	-	2.37"	-24	6.18"	4.35"	1.26"	3.12"
1A32FLB20	-	-	-20	-	-	-	-
1A32FLB24	-	2.81"	-24	7.28"	5.45"	1.26"	4.50"
1A32FLB32	-	2.81"	-32	7.47"	5.49"	1.75"	4.50"
1A40FLB32	-	3.31"	-32	7.47"	5.49"	1.75"	4.56"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
