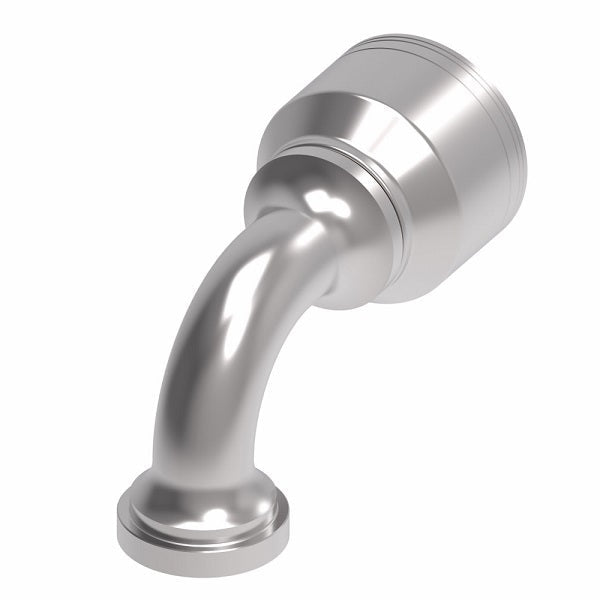

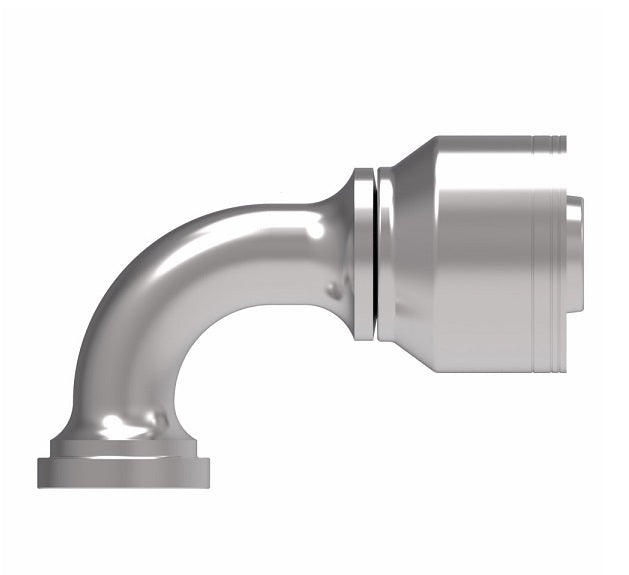

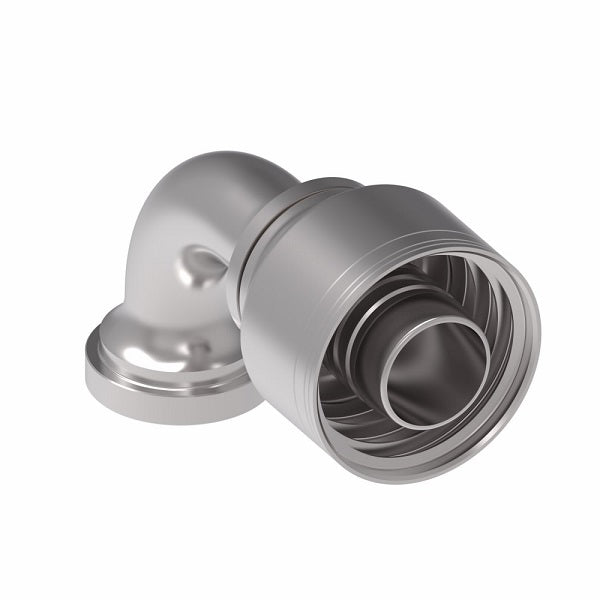

1A16FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Split Flange x -20 Hose Barb | Steel

1A16FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Split Flange x -20 Hose Barb | Steel

Name: 1A16FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Split Flange x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16FLB20 Danfoss
Price: 111.58 USD
Availability: InStock

$111.58 - $111.58

$111.58

$111.58 - $111.58

$111.58

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLB) - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A16FLB20 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thd. Flange Head Diameter KØ	Hose Size	A	D	EØ	H
1A8FLB8	-	1.19"	-08	2.86"	1.69"	0.37"	1.63"
1A12FLB8	-	1.50"	-08	3.45"	2.28"	0.37"	2.13"
1A12FLB10	-	1.50"	-10	3.44"	2.29"	0.50"	2.13"
1A12FLB12	-	1.50"	-12	3.49"	2.30"	0.58"	2.13"
1A16FLB12	-	1.75"	-12	4.03"	2.84"	0.58"	2.38"
1A20FLB12	-	2.00"	-12	4.67"	3.48"	0.58"	2.62"
1A12FLB16	-	1.50"	-16	4.20"	2.85"	0.76"	2.17"
1A16FLB16	-	1.75"	-16	4.22"	2.86"	0.76"	2.38"
1A20FLB16	-	2.00"	-16	4.85"	3.50"	0.76"	2.62"
1A24FLB16	-	2.37"	-16	5.59"	4.24"	0.76"	3.12"
1A16FLB20	-	1.75"	-20	4.66"	2.93"	0.76"	2.38"
1A20FLB20	1A20FLB20TZ	2.00"	-20	5.30"	3.57"	1.01"	2.62"
1A20FLB20.090	-	-	-20	-	-	-	-
1A20FLB20.189	-	-	-20	-	-	-	-
1A24FLB20	-	2.37"	-20	6.04"	4.31"	1.01"	3.12"
1A16FLB24	-	1.75"	-24	4.80"	2.97"	0.76"	2.38"
1A20FLB24	-	2.00"	-24	5.43"	3.61"	1.01"	2.62"
1A24FLB24	-	2.37"	-24	6.18"	4.35"	1.26"	3.12"
1A32FLB20	-	-	-20	-	-	-	-
1A32FLB24	-	2.81"	-24	7.28"	5.45"	1.26"	4.50"
1A32FLB32	-	2.81"	-32	7.47"	5.49"	1.75"	4.50"
1A40FLB32	-	3.31"	-32	7.47"	5.49"	1.75"	4.56"
