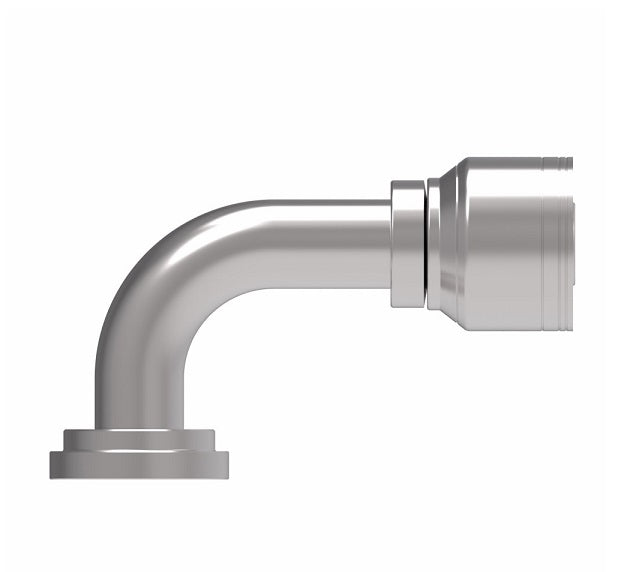

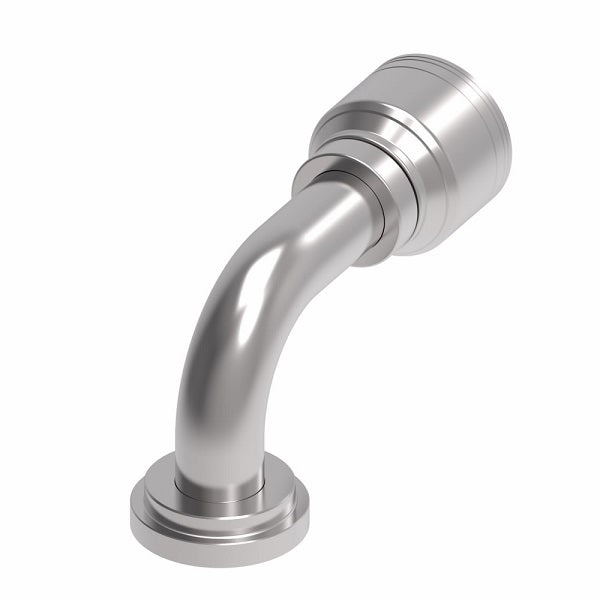

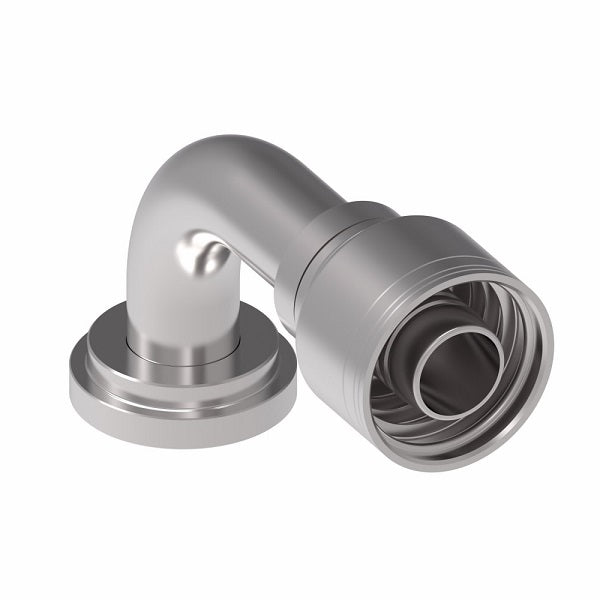

1A24FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -24 Code 61 Split Flange x -20 Hose Barb | Steel
1A24FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -24 Code 61 Split Flange x -20 Hose Barb | Steel
1A24FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -24 Code 61 Split Flange x -20 Hose Barb | Steel

1A24FLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -24 Code 61 Split Flange x -20 Hose Barb | Steel

$114.08 - $114.08
$114.08
$114.08 - $114.08
$114.08

Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A24FLB20 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thd. Flange
Head Diameter
KØ		 Hose Size A D EØ H
1A8FLB8 - 1.19" -08 2.86" 1.69" 0.37" 1.63"
1A12FLB8 - 1.50" -08 3.45" 2.28" 0.37" 2.13"
1A12FLB10 - 1.50" -10 3.44" 2.29" 0.50" 2.13"
1A12FLB12 - 1.50" -12 3.49" 2.30" 0.58" 2.13"
1A16FLB12 - 1.75" -12 4.03" 2.84" 0.58" 2.38"
1A20FLB12 - 2.00" -12 4.67" 3.48" 0.58" 2.62"
1A12FLB16 - 1.50" -16 4.20" 2.85" 0.76" 2.17"
1A16FLB16 - 1.75" -16 4.22" 2.86" 0.76" 2.38"
1A20FLB16 - 2.00" -16 4.85" 3.50" 0.76" 2.62"
1A24FLB16 - 2.37" -16 5.59" 4.24" 0.76" 3.12"
1A16FLB20 - 1.75" -20 4.66" 2.93" 0.76" 2.38"
1A20FLB20 1A20FLB20TZ 2.00" -20 5.30" 3.57" 1.01" 2.62"
1A20FLB20.090 - - -20 - - - -
1A20FLB20.189 - - -20 - - - -
1A24FLB20 - 2.37" -20 6.04" 4.31" 1.01" 3.12"
1A16FLB24 - 1.75" -24 4.80" 2.97" 0.76" 2.38"
1A20FLB24 - 2.00" -24 5.43" 3.61" 1.01" 2.62"
1A24FLB24 - 2.37" -24 6.18" 4.35" 1.26" 3.12"
1A32FLB20 - - -20 - - - -
1A32FLB24 - 2.81" -24 7.28" 5.45" 1.26" 4.50"
1A32FLB32 - 2.81" -32 7.47" 5.49" 1.75" 4.50"
1A40FLB32 - 3.31" -32 7.47" 5.49" 1.75" 4.56"
