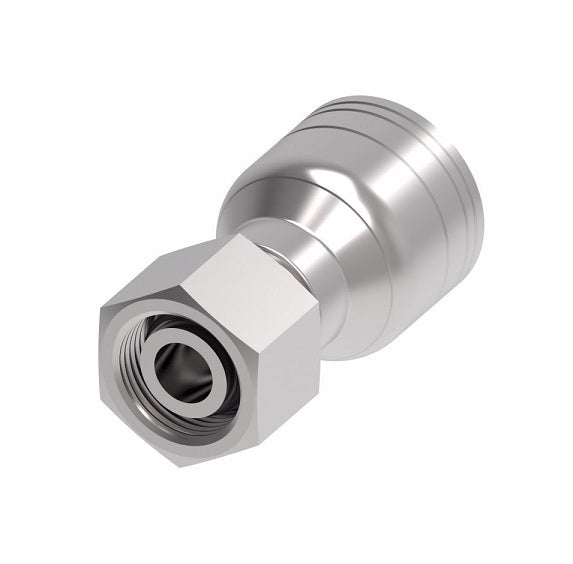

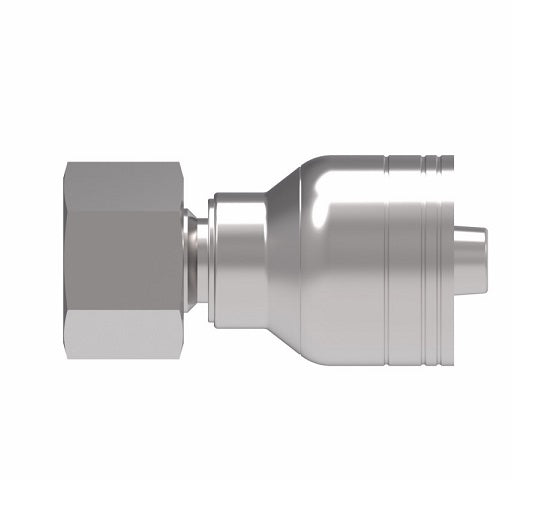

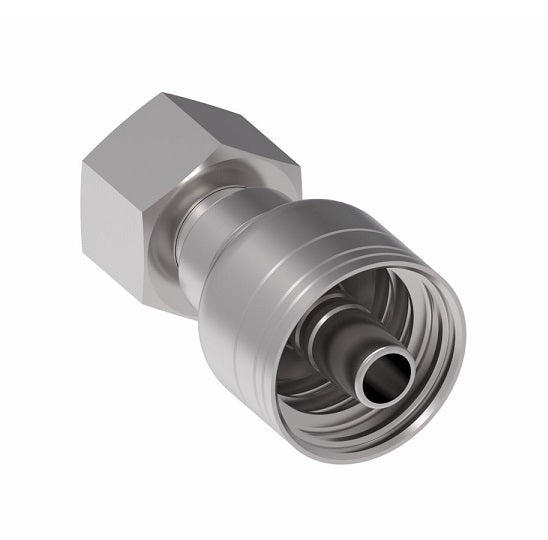

1A16DL10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -10 Hose Barb | Steel

1A16DL10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -10 Hose Barb | Steel

Name: 1A16DL10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16DL10 Danfoss
Price: 27.32 USD
Availability: InStock

$27.32 - $27.32

$27.32

$27.32 - $27.32

$27.32

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty Crimp Fitting (DL) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A16DL10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	L18 Female DIN, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	EØ	Hex 1
1A5DL4	M12 x 1.5	6	-04	1.89"	0.97"	0.16"	0.67"
1A6DL4	M14 x 1.5	8	-04	1.81"	0.89"	0.16"	0.67"
1A8DL4	M16 x 1.5	10	-04	1.90"	0.98"	0.17"	0.75"
1A8DL6	M16 x 1.5	10	-06	1.99"	0.99"	0.26"	0.75"
1A10DL6	M18 x 1.5	12	-06	2.01"	1.02"	0.26"	0.87"
1A12DL8	M22 x 1.5	15	-08	2.30"	1.13"	0.38"	1.06"
1A16DL8	M26 x 1.5	18	-08	-	-	-	-
1A16DL10	M26 x 1.5	18	-10	2.33"	1.17"	0.50"	1.26"
1A16DL12	M26 x 1.5	18	-12	-	-	-	-
1A20DL12	M30 x 2	22	-12	2.46"	1.27"	0.61"	1.42"
1A25DL16	M36 x 2	28	-16	2.68"	1.33"	0.81"	1.61"
1A32DL20	M45 x 2	35	-20	3.29"	1.56"	1.05"	1.97"
1A40DL24	M52 x 2	42	-24	3.43"	1.61"	1.26"	2.36"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
