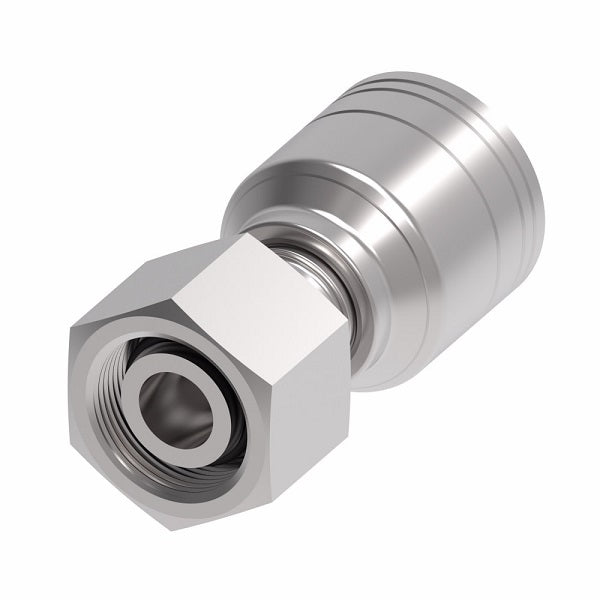

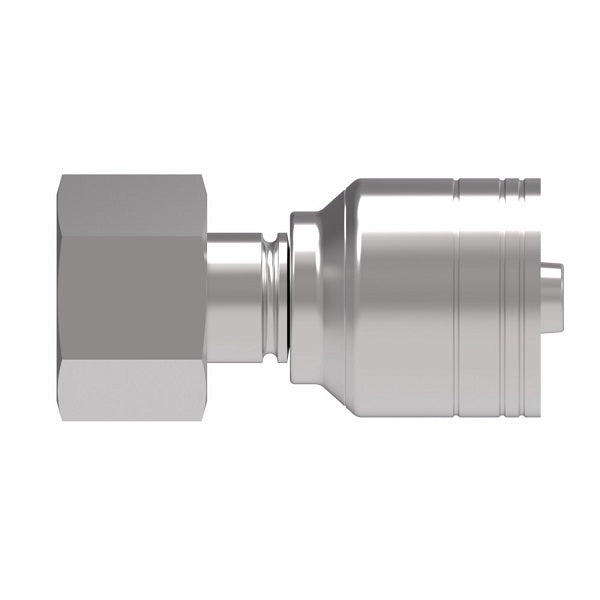

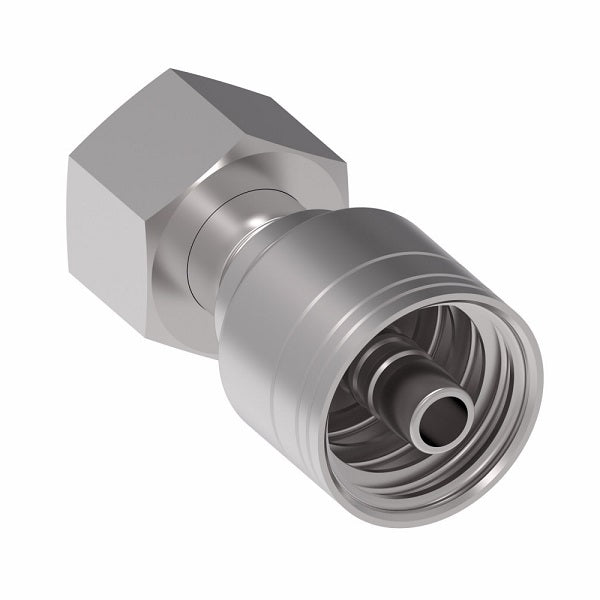

1A25DL16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel
1A25DL16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel
1A25DL16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel
1A25DL16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel

1A25DL16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel

$106.01 - $106.01
$106.01
$106.01 - $106.01
$106.01

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty Crimp Fitting (DL) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A25DL16 Danfoss
Shape (Orientation): Straight
Ends Configuration: L28 Female DIN, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number		 Thread Tube OD Hose Size A D EØ Hex 1
1A5DL4 M12 x 1.5 6 -04 1.89" 0.97" 0.16" 0.67"
1A6DL4 M14 x 1.5 8 -04 1.81" 0.89" 0.16" 0.67"
1A8DL4 M16 x 1.5 10 -04 1.90" 0.98" 0.17" 0.75"
1A8DL6 M16 x 1.5 10 -06 1.99" 0.99" 0.26" 0.75"
1A10DL6 M18 x 1.5 12 -06 2.01" 1.02" 0.26" 0.87"
1A12DL8 M22 x 1.5 15 -08 2.30" 1.13" 0.38" 1.06"
1A16DL8 M26 x 1.5 18 -08 - - - -
1A16DL10 M26 x 1.5 18 -10 2.33" 1.17" 0.50" 1.26"
1A16DL12 M26 x 1.5 18 -12 - - - -
1A20DL12 M30 x 2 22 -12 2.46" 1.27" 0.61" 1.42"
1A25DL16 M36 x 2 28 -16 2.68" 1.33" 0.81" 1.61"
1A32DL20 M45 x 2 35 -20 3.29" 1.56" 1.05" 1.97"
1A40DL24 M52 x 2 42 -24 3.43" 1.61" 1.26" 2.36"
