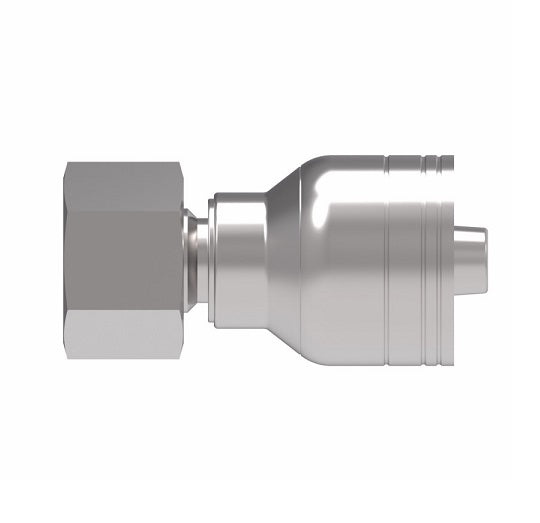

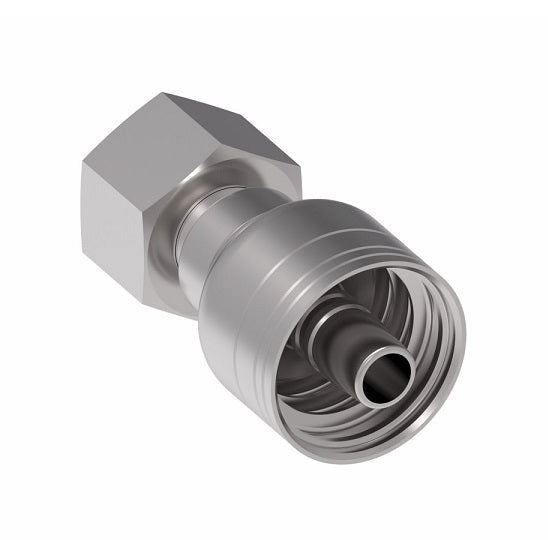

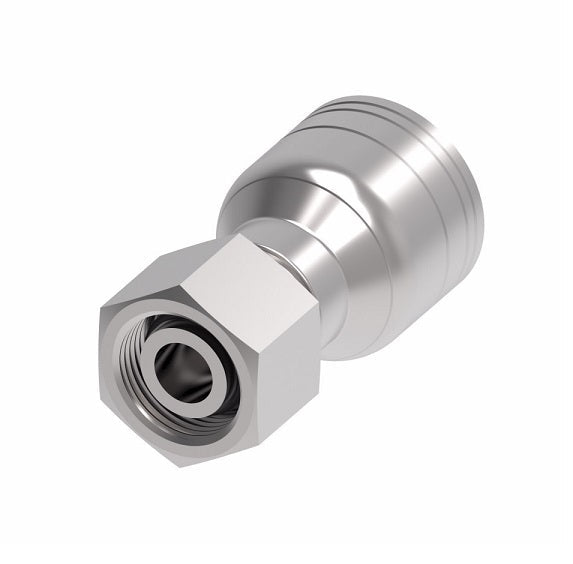

Name: 1A16DL8 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A16DL8 Danfoss
Price: 25.22 USD
Availability: InStock

$25.22 - $25.22

$25.22

$25.22 - $25.22

$25.22

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty Crimp Fitting (DL) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A16DL8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	L18 Female DIN, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	EØ	Hex 1
1A5DL4	M12 x 1.5	6	-04	1.89"	0.97"	0.16"	0.67"
1A6DL4	M14 x 1.5	8	-04	1.81"	0.89"	0.16"	0.67"
1A8DL4	M16 x 1.5	10	-04	1.90"	0.98"	0.17"	0.75"
1A8DL6	M16 x 1.5	10	-06	1.99"	0.99"	0.26"	0.75"
1A10DL6	M18 x 1.5	12	-06	2.01"	1.02"	0.26"	0.87"
1A12DL8	M22 x 1.5	15	-08	2.30"	1.13"	0.38"	1.06"
1A16DL8	M26 x 1.5	18	-08	-	-	-	-
1A16DL10	M26 x 1.5	18	-10	2.33"	1.17"	0.50"	1.26"
1A16DL12	M26 x 1.5	18	-12	-	-	-	-
1A20DL12	M30 x 2	22	-12	2.46"	1.27"	0.61"	1.42"
1A25DL16	M36 x 2	28	-16	2.68"	1.33"	0.81"	1.61"
1A32DL20	M45 x 2	35	-20	3.29"	1.56"	1.05"	1.97"
1A40DL24	M52 x 2	42	-24	3.43"	1.61"	1.26"	2.36"
