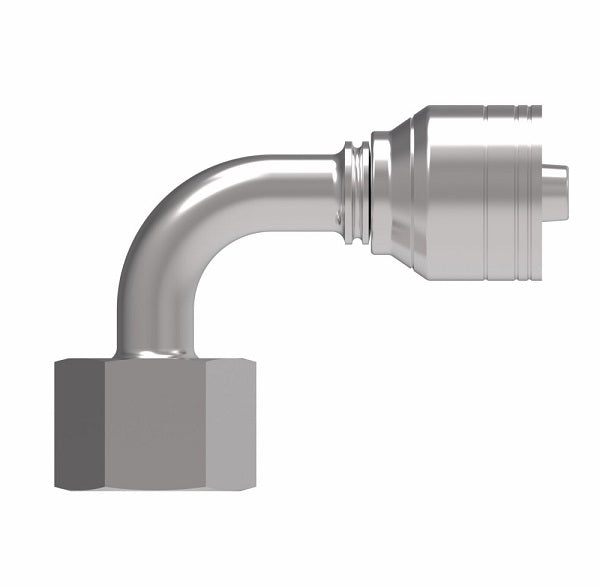

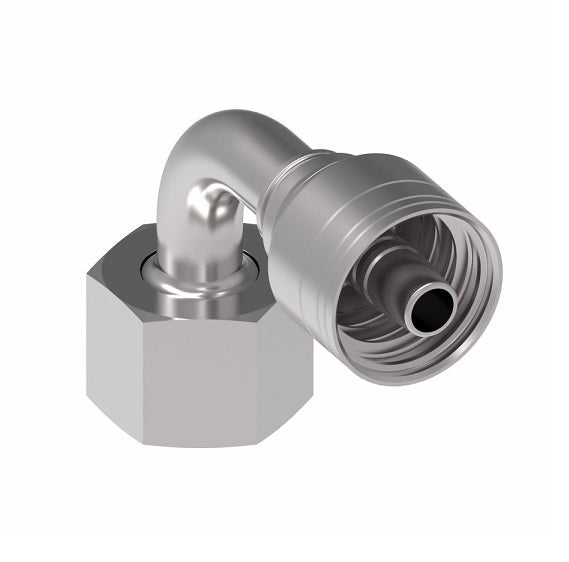

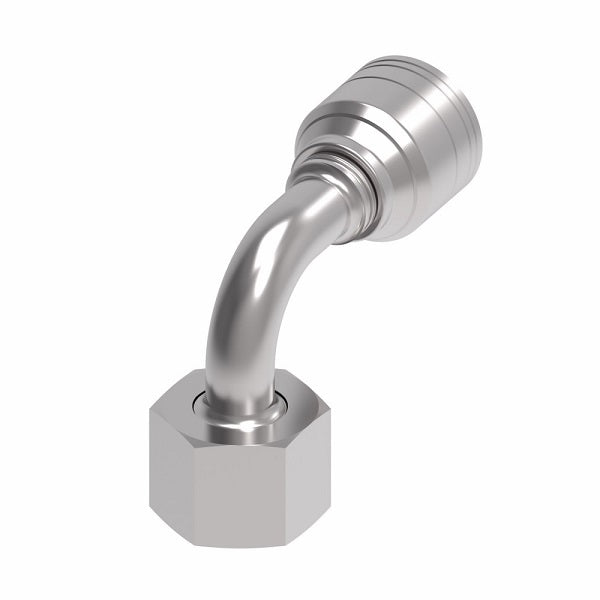

Name: 1A20DSB12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S20 Female DKO/DIN x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A20DSB12 Danfoss
Price: 65.8 USD
Availability: InStock

$65.80 - $65.80

$65.80

$65.80 - $65.80

$65.80

Quantity

Specifications for Variant SKU: 1A20DSB12 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	S20 Female DIN, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	EØ	H	Hex 1
1A5DSB4	-	-	-04	-	-	-	-	-
1A6DSB4	M18 x 1.5	10	-04	2.14"	1.22"	0.16"	1.32"	0.87"
1A6DSB6	M18 x 1.5	-	-04	-	-	-	-	-
1A8DSB6	M20 x 1.5	12	-06	2.20"	1.36"	0.26"	1.39"	0.94"
1A10DSB6	M22 x 1.5	14	-06	2.35"	1.52"	0.26"	1.65"	1.06"
1A12DSB8	M24 x 1.5	16	-08	3.06"	1.89"	0.38"	1.78"	1.18"
1A16DSB10	M30 x 2	20	-10	3.23"	2.07"	0.50"	2.05"	1.42"
1A20DSB12	M36 x 2	25	-12	3.66"	2.47"	0.61"	2.54"	1.81"
1A25DSB16	M42 x 2	30	-16	4.09"	2.74"	0.81"	2.91"	1.97"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
