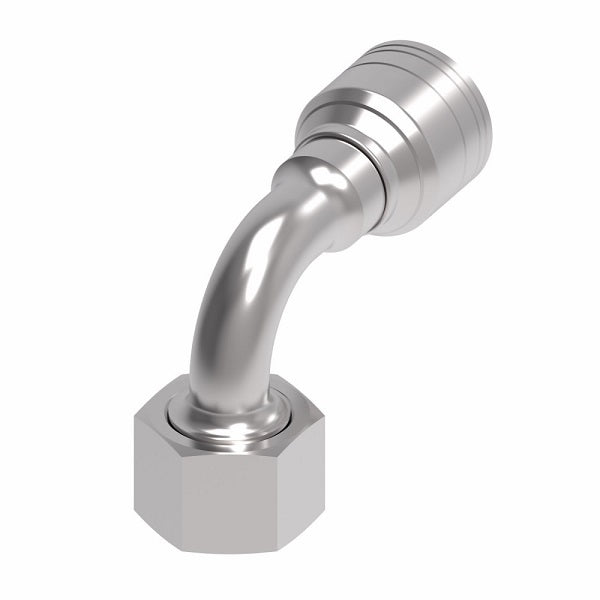

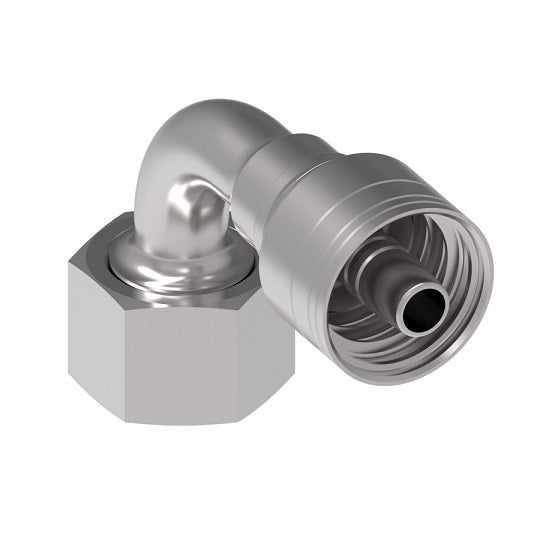

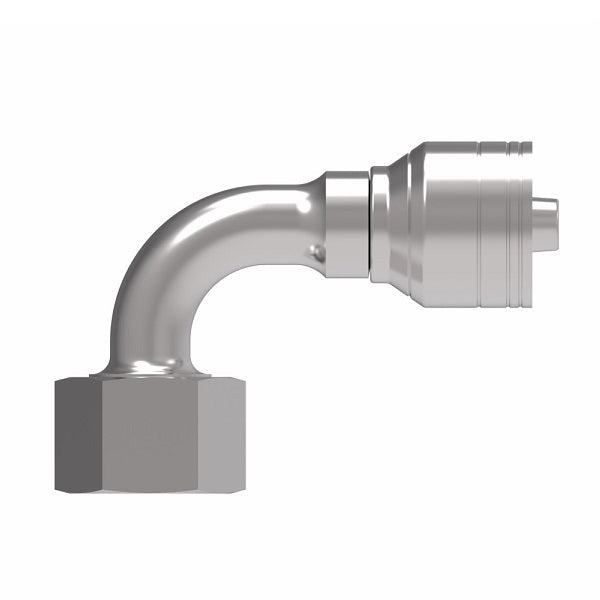

1A6DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S10 Female DKO/DIN x -06 Hose Barb | Steel
1A6DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S10 Female DKO/DIN x -06 Hose Barb | Steel
1A6DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S10 Female DKO/DIN x -06 Hose Barb | Steel
1A6DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S10 Female DKO/DIN x -06 Hose Barb | Steel

1A6DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S10 Female DKO/DIN x -06 Hose Barb | Steel

$73.74 - $73.74
$73.74
$73.74 - $73.74
$73.74

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty, Crimp Fitting (DSB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A6DSB6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: S10 Female DIN, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread
T		 Tube OD Hose Size A D EØ H Hex 1
1A5DSB4 - - -04 - - - - -
1A6DSB4 M18 x 1.5 10 -04 2.14" 1.22" 0.16" 1.32" 0.87"
1A6DSB6 M18 x 1.5 - -04 - - - - -
1A8DSB6 M20 x 1.5 12 -06 2.20" 1.36" 0.26" 1.39" 0.94"
1A10DSB6 M22 x 1.5 14 -06 2.35" 1.52" 0.26" 1.65" 1.06"
1A12DSB8 M24 x 1.5 16 -08 3.06" 1.89" 0.38" 1.78" 1.18"
1A16DSB10 M30 x 2 20 -10 3.23" 2.07" 0.50" 2.05" 1.42"
1A20DSB12 M36 x 2 25 -12 3.66" 2.47" 0.61" 2.54" 1.81"
1A25DSB16 M42 x 2 30 -16 4.09" 2.74" 0.81" 2.91" 1.97"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
