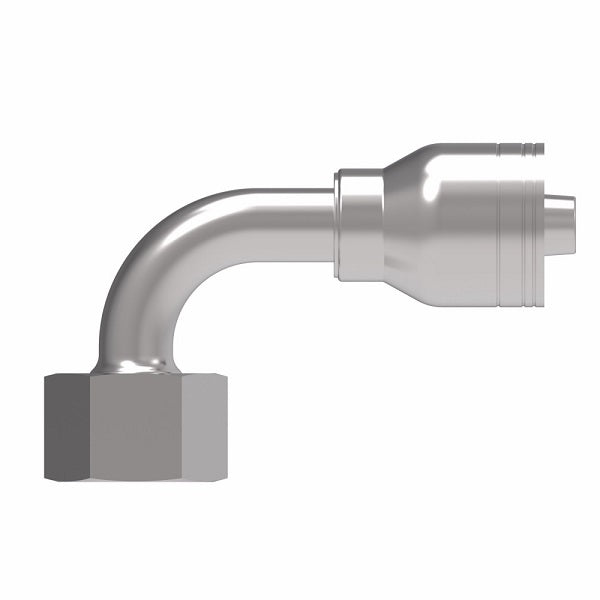

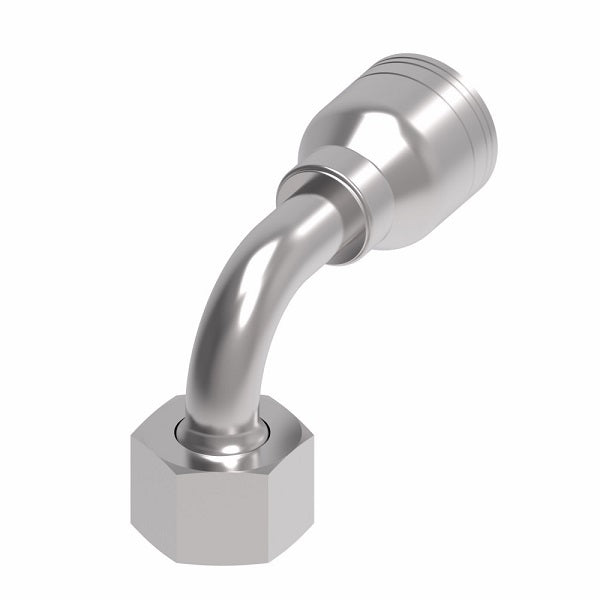

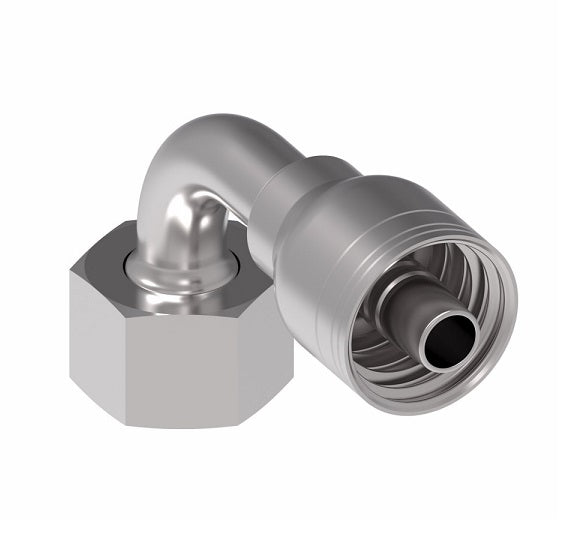

1A8DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S08 Female DKO/DIN x -06 Hose Barb | Steel

1A8DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S08 Female DKO/DIN x -06 Hose Barb | Steel

Name: 1A8DSB6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S08 Female DKO/DIN x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A8DSB6 Danfoss
Price: 59.18 USD
Availability: InStock

$59.18 - $59.18

$59.18

$59.18 - $59.18

$59.18

Quantity

Specifications for Variant SKU: 1A8DSB6 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	S08 Female DIN, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread T	Tube OD	Hose Size	A	D	EØ	H	Hex 1
1A5DSB4	-	-	-04	-	-	-	-	-
1A6DSB4	M18 x 1.5	10	-04	2.14"	1.22"	0.16"	1.32"	0.87"
1A6DSB6	M18 x 1.5	-	-04	-	-	-	-	-
1A8DSB6	M20 x 1.5	12	-06	2.20"	1.36"	0.26"	1.39"	0.94"
1A10DSB6	M22 x 1.5	14	-06	2.35"	1.52"	0.26"	1.65"	1.06"
1A12DSB8	M24 x 1.5	16	-08	3.06"	1.89"	0.38"	1.78"	1.18"
1A16DSB10	M30 x 2	20	-10	3.23"	2.07"	0.50"	2.05"	1.42"
1A20DSB12	M36 x 2	25	-12	3.66"	2.47"	0.61"	2.54"	1.81"
1A25DSB16	M42 x 2	30	-16	4.09"	2.74"	0.81"	2.91"	1.97"
