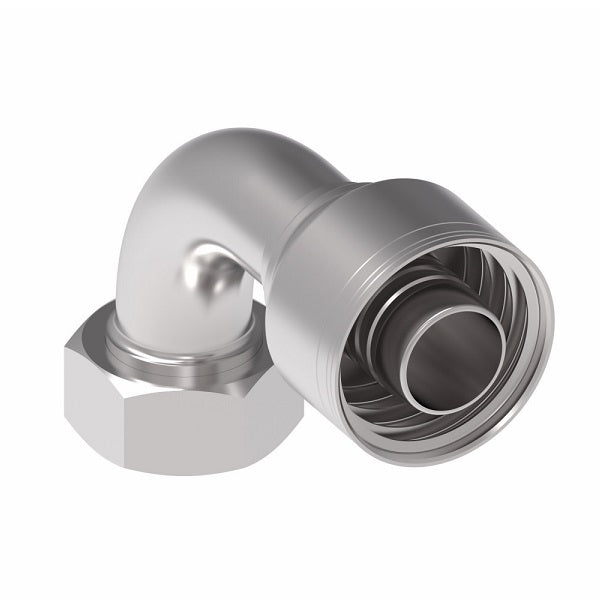

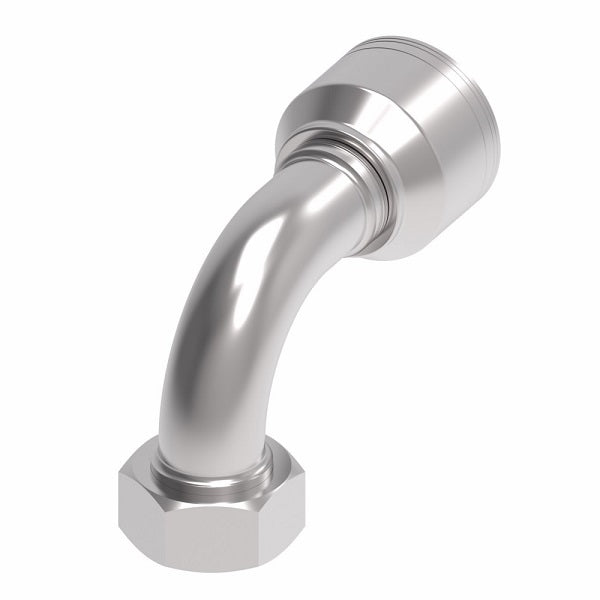

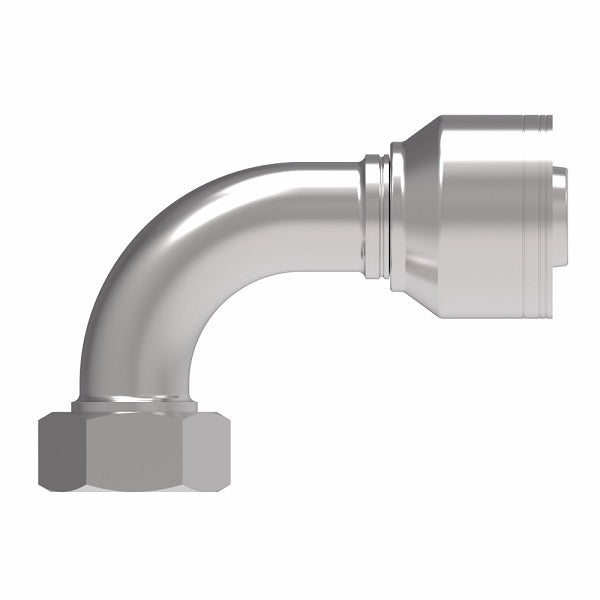

1A32DLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L35 Female DKO/DIN x -20 Hose Barb | Steel
1A32DLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L35 Female DKO/DIN x -20 Hose Barb | Steel
1A32DLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L35 Female DKO/DIN x -20 Hose Barb | Steel

1A32DLB20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L35 Female DKO/DIN x -20 Hose Barb | Steel

$241.87 - $241.87
$241.87
$241.87 - $241.87
$241.87

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A32DLB20 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: L35 Female DIN, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Tube OD Hose Size A D EØ H Hex 1
1A5DLB4 M12 x 1.5 6 -04 1.96" 1.04" 0.16" 1.04" 0.67"
1A6DLB4 M14 X 1.5 8 -04 2.04" 1.12" 0.16" 1.24" 0.67"
1A8DLB4 M16 x 1.5 10 -04 2.18" 1.26" 0.17" 1.40" 0.75"
1A8DLB6 M16 x 1.5 10 -06 2.25" 1.26" 0.26" 1.40" 0.75"
1A10DLB6 M18 x 1.5 12 -06 2.37" 1.38" 0.26" 1.53" 0.87"
1A12DLB8 M22 x 1.5 15 -08 2.83" 1.66" 0.38" 1.69" 1.06"
1A16DLB10 M26 x 1.5 18 -10 3.26" 2.11" 0.50" 2.32" 1.26"
1A20DLB12 M30 x 2 22 -12 3.74" 2.55" 0.61" 2.12" 1.42"
1A25DLB16 M36 x 2 28 -16 6.08" 4.72" 0.81" 2.79" 1.61"
1A32DLB20 M45 x 2 35 -20 4.68" 2.95" 1.05" 2.99" 1.97"
1A40DLB24 M52 X 2 - -24 - - - - -
