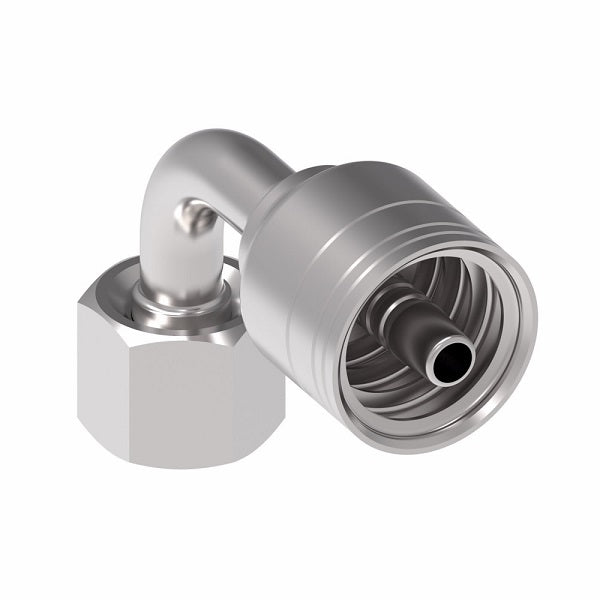

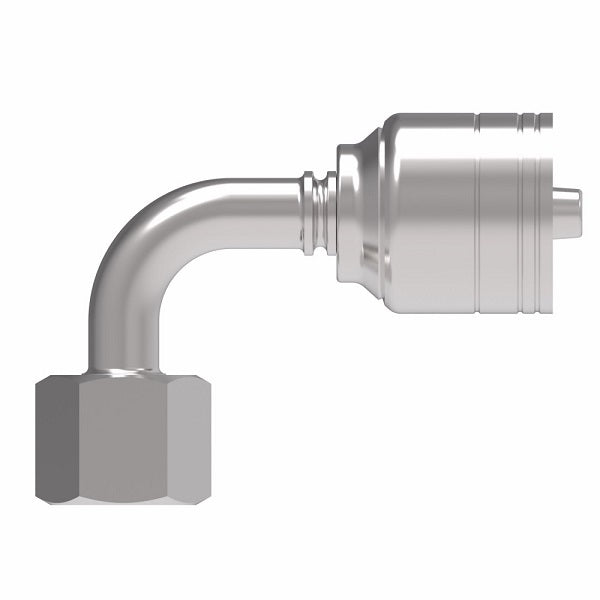

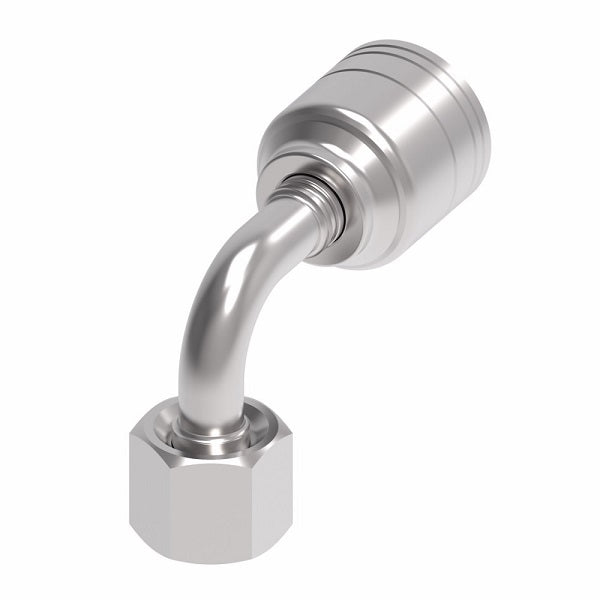

Name: 1A8DLB4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L10 Female DKO/DIN x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A8DLB4 Danfoss
Price: 55.94 USD
Availability: InStock

$55.94 - $55.94

$55.94

$55.94 - $55.94

$55.94

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLB) - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A8DLB4 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	L10 Female DIN, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	EØ	H	Hex 1
1A5DLB4	M12 x 1.5	6	-04	1.96"	1.04"	0.16"	1.04"	0.67"
1A6DLB4	M14 X 1.5	8	-04	2.04"	1.12"	0.16"	1.24"	0.67"
1A8DLB4	M16 x 1.5	10	-04	2.18"	1.26"	0.17"	1.40"	0.75"
1A8DLB6	M16 x 1.5	10	-06	2.25"	1.26"	0.26"	1.40"	0.75"
1A10DLB6	M18 x 1.5	12	-06	2.37"	1.38"	0.26"	1.53"	0.87"
1A12DLB8	M22 x 1.5	15	-08	2.83"	1.66"	0.38"	1.69"	1.06"
1A16DLB10	M26 x 1.5	18	-10	3.26"	2.11"	0.50"	2.32"	1.26"
1A20DLB12	M30 x 2	22	-12	3.74"	2.55"	0.61"	2.12"	1.42"
1A25DLB16	M36 x 2	28	-16	6.08"	4.72"	0.81"	2.79"	1.61"
1A32DLB20	M45 x 2	35	-20	4.68"	2.95"	1.05"	2.99"	1.97"
1A40DLB24	M52 X 2	-	-24	-	-	-	-	-
