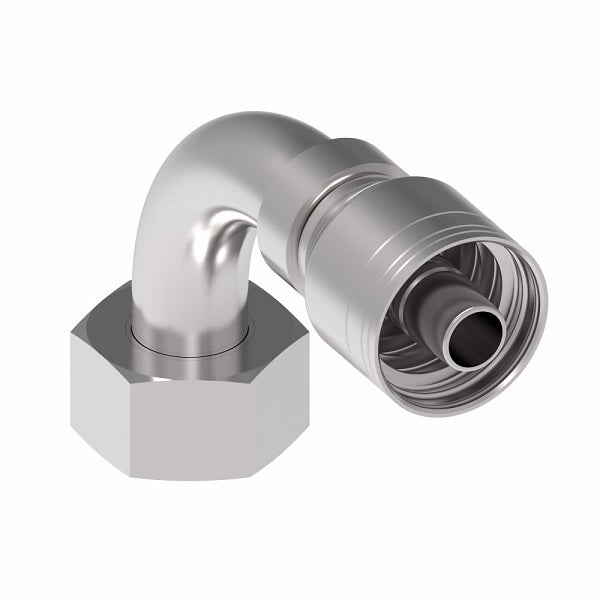

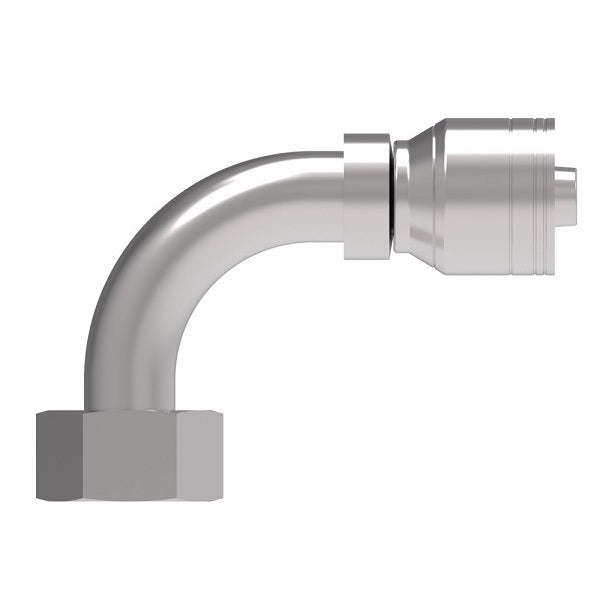

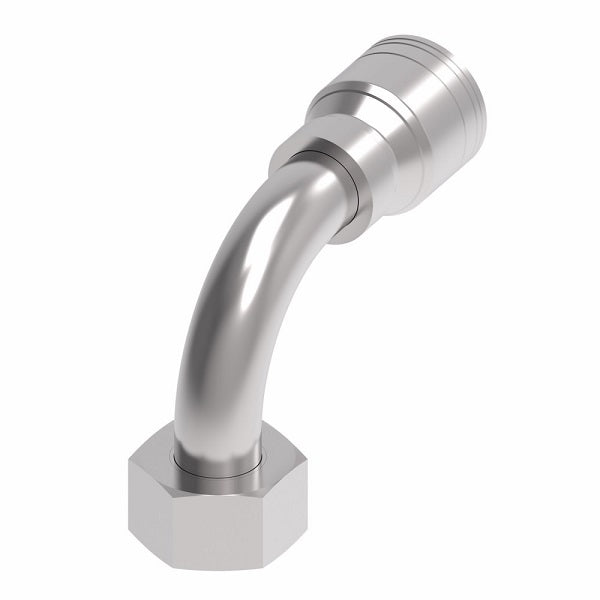

1A40DLB24 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L42 Female DKO/DIN x -24 Hose Barb | Steel
1A40DLB24 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L42 Female DKO/DIN x -24 Hose Barb | Steel
1A40DLB24 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L42 Female DKO/DIN x -24 Hose Barb | Steel
1A40DLB24 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L42 Female DKO/DIN x -24 Hose Barb | Steel

1A40DLB24 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L42 Female DKO/DIN x -24 Hose Barb | Steel

$340.22 - $340.22
$340.22
$340.22 - $340.22
$340.22

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A40DLB24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: L42 Female DIN, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Tube OD Hose Size A D EØ H Hex 1
1A5DLB4 M12 x 1.5 6 -04 1.96" 1.04" 0.16" 1.04" 0.67"
1A6DLB4 M14 X 1.5 8 -04 2.04" 1.12" 0.16" 1.24" 0.67"
1A8DLB4 M16 x 1.5 10 -04 2.18" 1.26" 0.17" 1.40" 0.75"
1A8DLB6 M16 x 1.5 10 -06 2.25" 1.26" 0.26" 1.40" 0.75"
1A10DLB6 M18 x 1.5 12 -06 2.37" 1.38" 0.26" 1.53" 0.87"
1A12DLB8 M22 x 1.5 15 -08 2.83" 1.66" 0.38" 1.69" 1.06"
1A16DLB10 M26 x 1.5 18 -10 3.26" 2.11" 0.50" 2.32" 1.26"
1A20DLB12 M30 x 2 22 -12 3.74" 2.55" 0.61" 2.12" 1.42"
1A25DLB16 M36 x 2 28 -16 6.08" 4.72" 0.81" 2.79" 1.61"
1A32DLB20 M45 x 2 35 -20 4.68" 2.95" 1.05" 2.99" 1.97"
1A40DLB24 M52 X 2 - -24 - - - - -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
