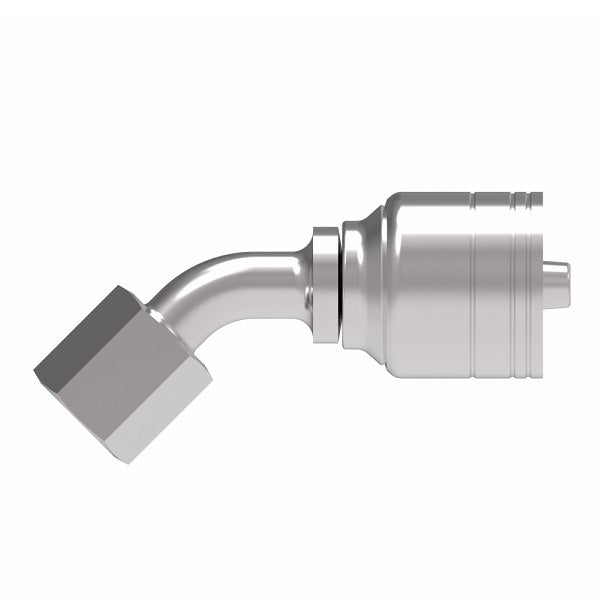

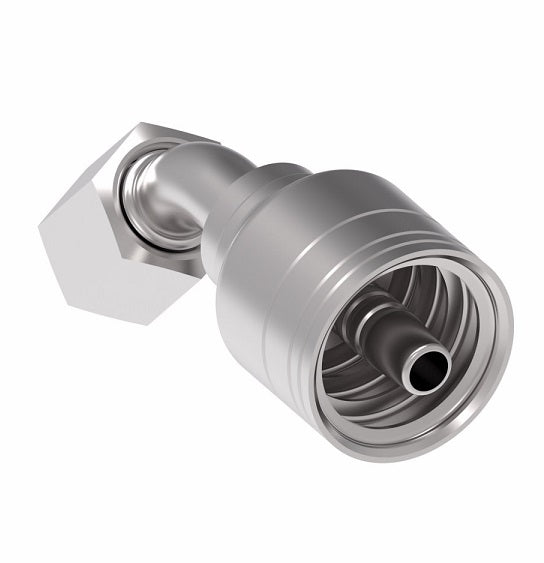

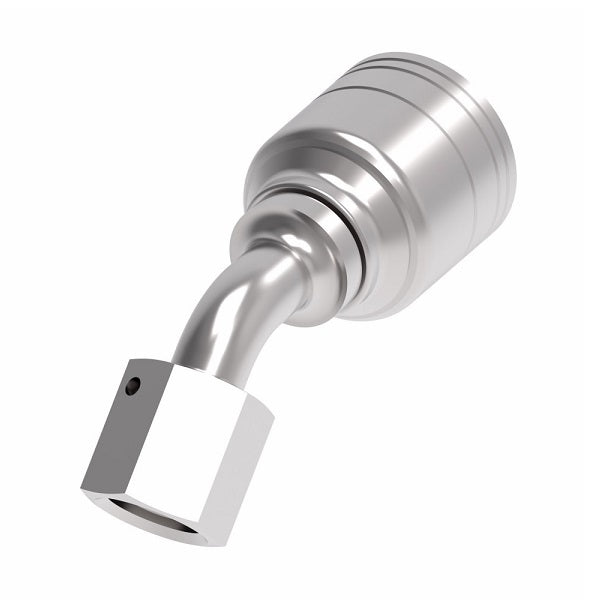

1A5DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L06 Female DKO/DIN x -04 Hose Barb | Steel
1A5DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L06 Female DKO/DIN x -04 Hose Barb | Steel
1A5DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L06 Female DKO/DIN x -04 Hose Barb | Steel
1A5DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L06 Female DKO/DIN x -04 Hose Barb | Steel

1A5DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L06 Female DKO/DIN x -04 Hose Barb | Steel

$69.19 - $69.19
$69.19
$69.19 - $69.19
$69.19

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A5DLA4 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: L06 Female DIN, 1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Tube OD Hose Size A D EØ H Hex 1
1A5DLA4 M12X1.5 - -04 - - - - -
1A6DLA4 M14 x 1.5 8 -04 2.46" 1.53" 0.16" 0.69" 0.67"
1A8DLA4 M16 X 1.5 10 -04 2.55" 1.63" 0.17" 0.72" 0.75"
1A8DLA6 M16 x 1.5 10 -06 2.63" 1.63" 0.26" 0.75" 0.75"
1A10DLA6 M18 x 1.5 12 -06 2.75" 1.75" 0.26" 0.81" 0.87"
1A12DLA8 M22 x 1.5 15 -08 3.22" 2.05" 0.38" 0.85" 1.06"
1A16DLA10 M26 x 1.5 18 -10 3.48" 2.32" 0.50" 1.08" 1.26"
1A20DLA12 M30 x 2 22 -12 3.87" 2.68" 0.61" 1.02" 1.42"
1A25DLA16 M36 x 2 28 -16 4.72" 3.37" 0.81" 1.32" 1.61"
