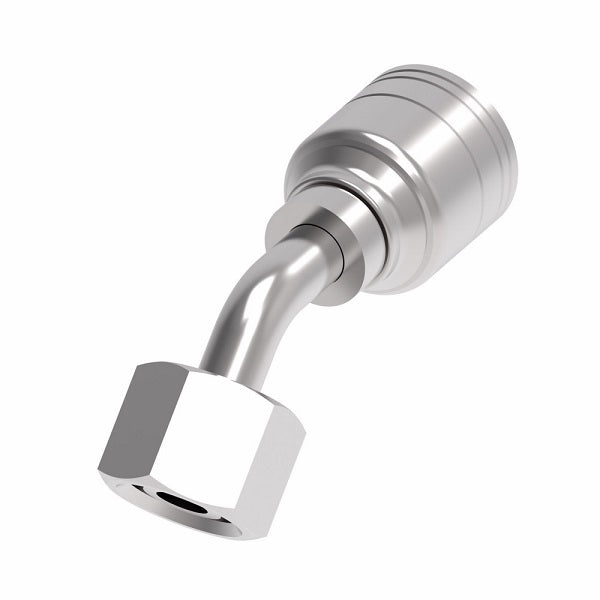

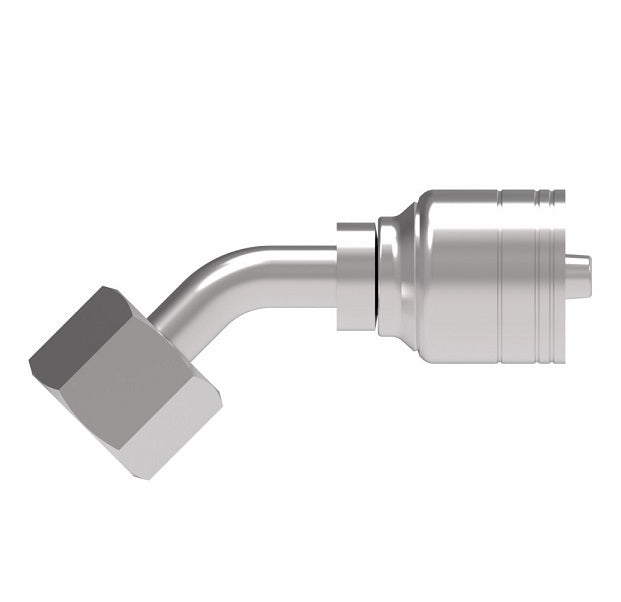

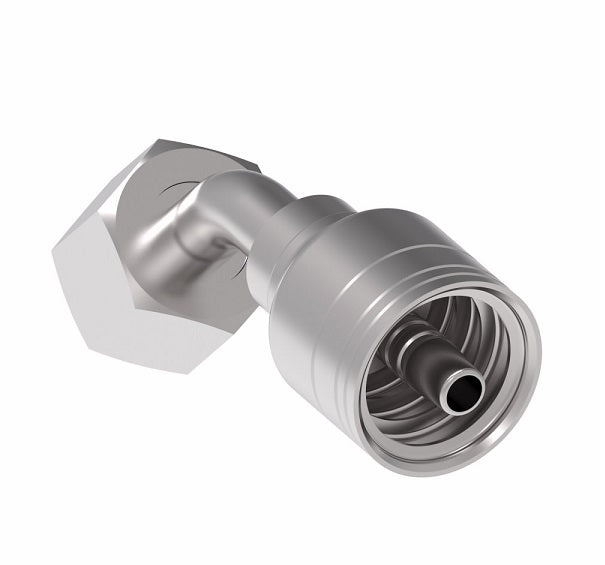

1A8DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L10 Female DKO/DIN x -04 Hose Barb | Steel

1A8DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L10 Female DKO/DIN x -04 Hose Barb | Steel

Name: 1A8DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L10 Female DKO/DIN x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A8DLA4 Danfoss
Price: 47.72 USD
Availability: InStock

$47.72 - $47.72

$47.72

$47.72 - $47.72

$47.72

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A8DLA4 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	L10 Female DIN, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	EØ	H	Hex 1
1A5DLA4	M12X1.5	-	-04	-	-	-	-	-
1A6DLA4	M14 x 1.5	8	-04	2.46"	1.53"	0.16"	0.69"	0.67"
1A8DLA4	M16 X 1.5	10	-04	2.55"	1.63"	0.17"	0.72"	0.75"
1A8DLA6	M16 x 1.5	10	-06	2.63"	1.63"	0.26"	0.75"	0.75"
1A10DLA6	M18 x 1.5	12	-06	2.75"	1.75"	0.26"	0.81"	0.87"
1A12DLA8	M22 x 1.5	15	-08	3.22"	2.05"	0.38"	0.85"	1.06"
1A16DLA10	M26 x 1.5	18	-10	3.48"	2.32"	0.50"	1.08"	1.26"
1A20DLA12	M30 x 2	22	-12	3.87"	2.68"	0.61"	1.02"	1.42"
1A25DLA16	M36 x 2	28	-16	4.72"	3.37"	0.81"	1.32"	1.61"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
