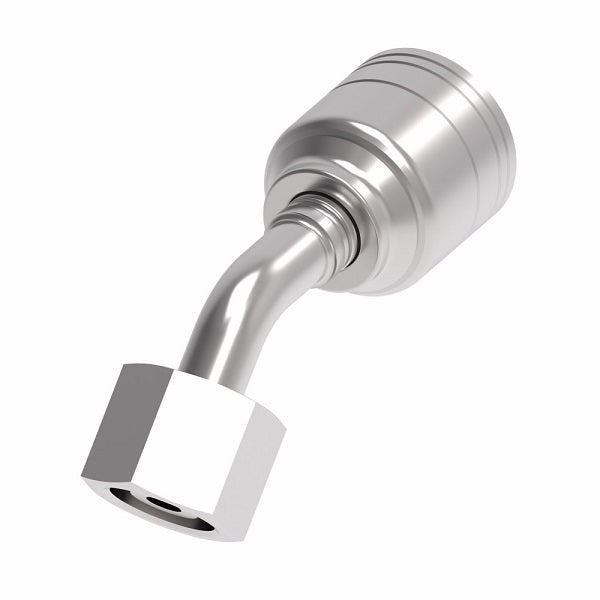

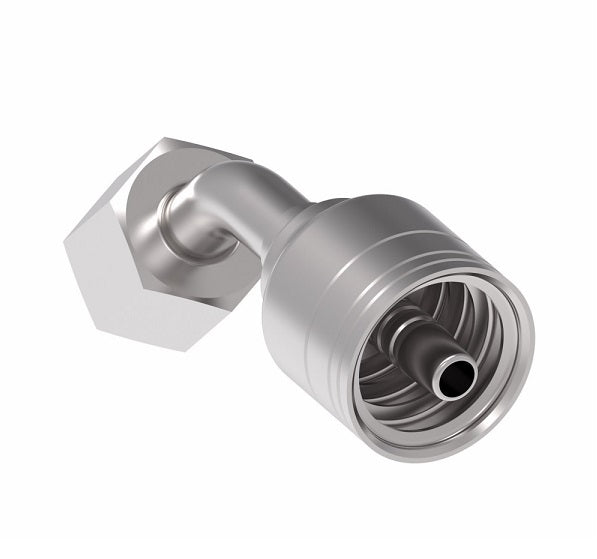

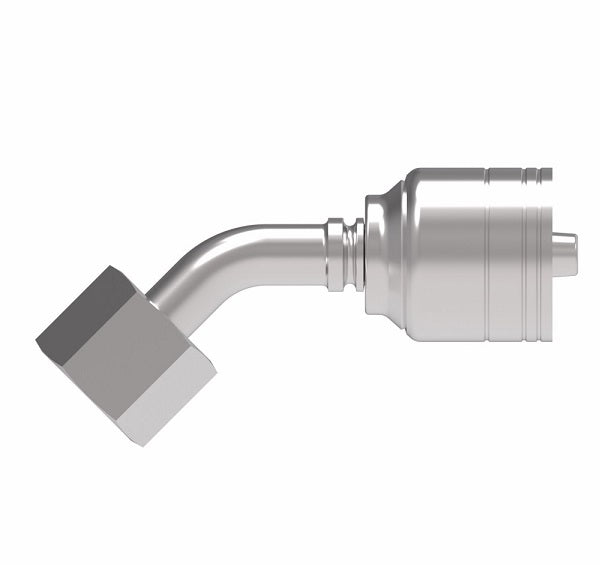

1A6DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L08 Female DKO/DIN x -04 Hose Barb | Steel
1A6DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L08 Female DKO/DIN x -04 Hose Barb | Steel
1A6DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L08 Female DKO/DIN x -04 Hose Barb | Steel
1A6DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L08 Female DKO/DIN x -04 Hose Barb | Steel

1A6DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L08 Female DKO/DIN x -04 Hose Barb | Steel

$52.00 - $52.00
$52.00
$52.00 - $52.00
$52.00

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A6DLA4 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: L08 Female DIN, 1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Tube OD Hose Size A D EØ H Hex 1
1A5DLA4 M12X1.5 - -04 - - - - -
1A6DLA4 M14 x 1.5 8 -04 2.46" 1.53" 0.16" 0.69" 0.67"
1A8DLA4 M16 X 1.5 10 -04 2.55" 1.63" 0.17" 0.72" 0.75"
1A8DLA6 M16 x 1.5 10 -06 2.63" 1.63" 0.26" 0.75" 0.75"
1A10DLA6 M18 x 1.5 12 -06 2.75" 1.75" 0.26" 0.81" 0.87"
1A12DLA8 M22 x 1.5 15 -08 3.22" 2.05" 0.38" 0.85" 1.06"
1A16DLA10 M26 x 1.5 18 -10 3.48" 2.32" 0.50" 1.08" 1.26"
1A20DLA12 M30 x 2 22 -12 3.87" 2.68" 0.61" 1.02" 1.42"
1A25DLA16 M36 x 2 28 -16 4.72" 3.37" 0.81" 1.32" 1.61"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
