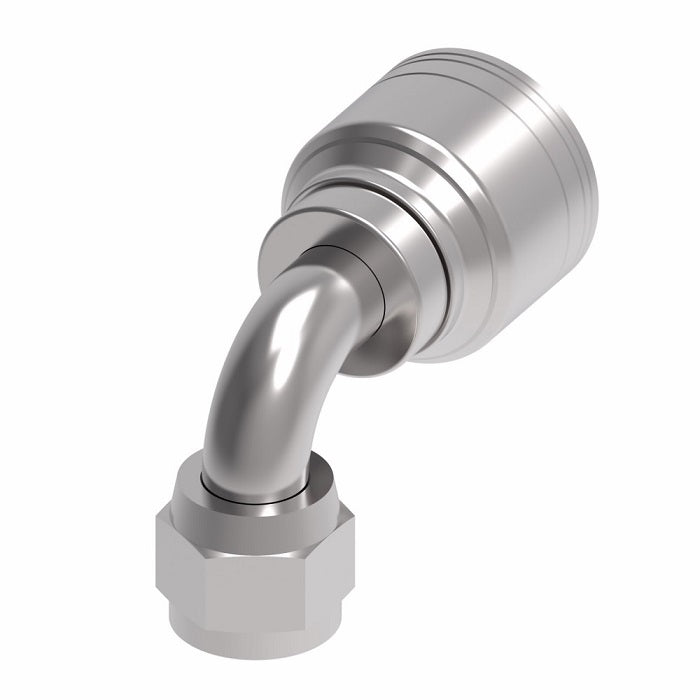

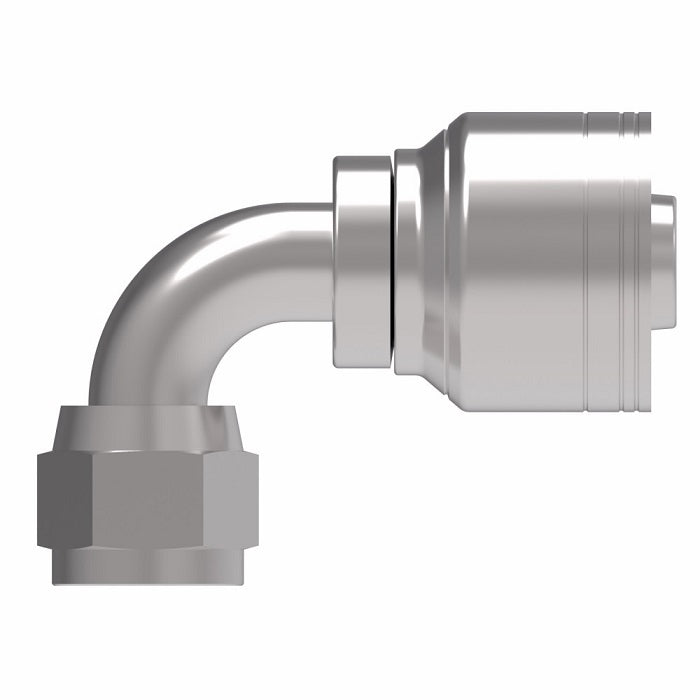

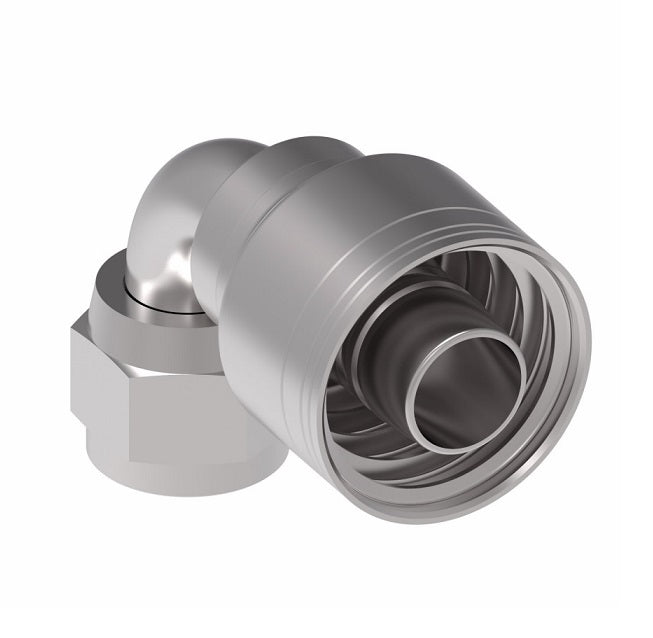

1AA10FJB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
1AA10FJB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
1AA10FJB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel
1AA10FJB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

1AA10FJB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

$27.65 - $27.65
$27.65
$27.65 - $27.65
$27.65

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fiting (FJB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA10FJB8 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel
Plated Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1AA4FJB4* 1AA4FJB4TZ 7/16-20 -04 1.84" 0.92" 0.17" 0.68" 9/16"
1AA5FJB4* - 1/2-20 -04 1.92" 1.00" 0.17" 0.76" 5/8"
1AA6FJB4 1AA6FJB4TZ 9/16-18 -04 2.00" 0.99" 0.17" 0.90" 11/16"
1AA4FJB6 1AA4FJB6TZ 7/16-20 -06 1.81" 0.98" 0.16" 0.68" 9/16"
1AA6FJB6 1AA6FJB6TZ 9/16-18 -06 2.21" 1.22" 0.24" 0.84" 11/16"
1AA8FJB6* - 3/4-16 -06 2.42" 1.42" 0.26" 1.09" 7/8"
1AA6FJB8 - 9/16-18 -08 2.43" 1.26" 0.24" 0.84" 11/16"
1AA8FJB8* 1AA8FJB8TZ 3/4-16 -08 2.59" 1.42" 0.37" 1.09" 7/8"
1AA10FJB8* - 7/8-14 -08 2.78" 1.61" 0.38" 1.19" 1"
1AA10FJB10* - 7/8-14 -10 2.76" 1.55" 0.46" 1.23" 1"
1AA10FJB12 - 7/8-14 -12 2.57" 1.56" 0.46" 1.19" 1"
1AA12FJB8 - 1-1/16-12 -08 - - - - -
1AA12FJB10 - 1-1/16-12 -10 3.31" 2.16" 0.50" 1.80" 1-1/4"
1AA12FJB16 - 1-5/8-12 -16 3.77" 2.45" 0.82" 2.75" 2"
1AA12FJB12 1AA12FJB12TZ 1-1/16-12 -12 3.36" 2.17" 0.58" 1.82" 1-1/4"
1AA16FJB12 - 1-5/16-12 -12 3.37" 2.18" 0.61" 2.39" 1-1/2"
1AA16FJB16 1AA16FJB16TZ 1-5/16-12 -16 3.56" 2.87" 0.81" 2.39" 1-1/2"
1AA20FJB20 1AA20FJB20TZ 1-5/8-12 -20 4.25" 2.52" 1.01" 2.75" 2"
1AA24FJB24 - 1-7/8-12 -24 4.63" 2.81" 1.26" 3.17" 2-1/4"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
