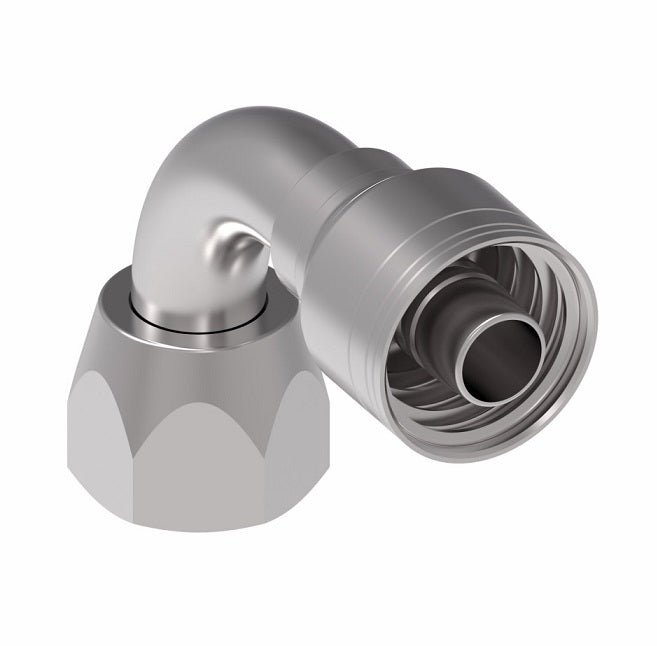

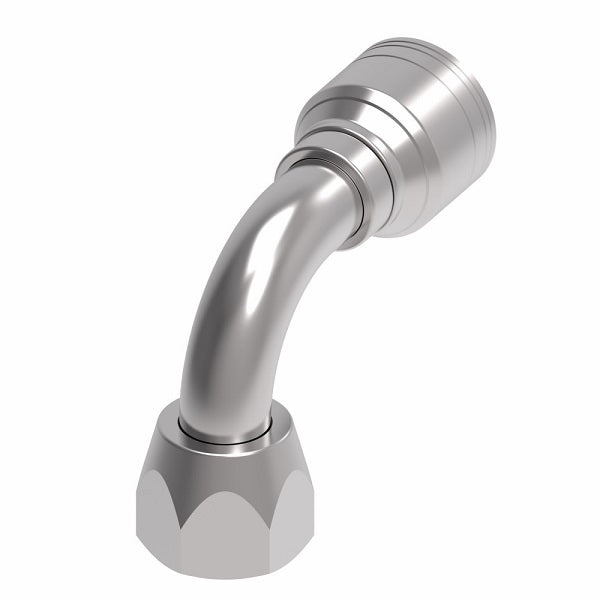

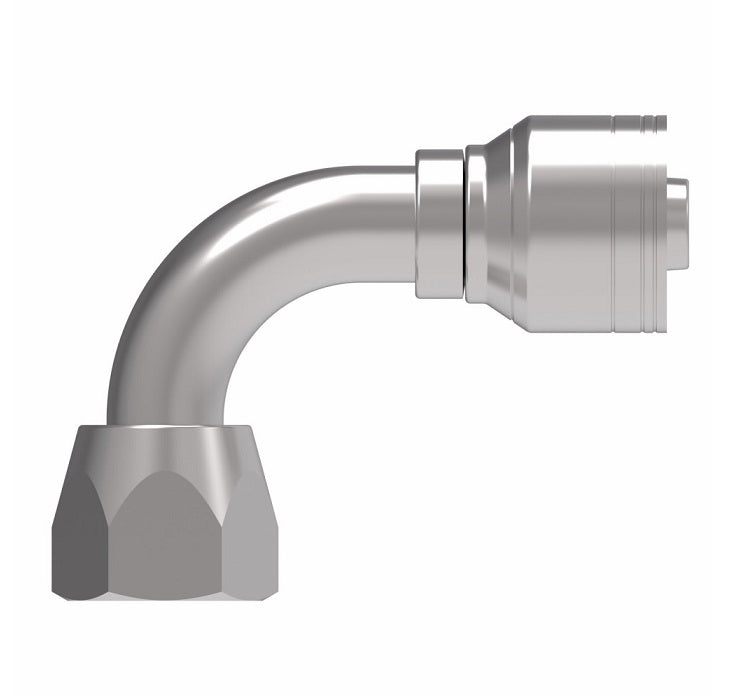

1AA12FJB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel

1AA12FJB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel

Name: 1AA12FJB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA12FJB10 Danfoss
Price: 35.77 USD
Availability: InStock

$35.77 - $35.77

$35.77

$35.77 - $35.77

$35.77

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fiting (FJB) - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1AA12FJB10 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	EØ	H	Hex 1
1AA4FJB4*	1AA4FJB4TZ	7/16-20	-04	1.84"	0.92"	0.17"	0.68"	9/16"
1AA5FJB4*	-	1/2-20	-04	1.92"	1.00"	0.17"	0.76"	5/8"
1AA6FJB4	1AA6FJB4TZ	9/16-18	-04	2.00"	0.99"	0.17"	0.90"	11/16"
1AA4FJB6	1AA4FJB6TZ	7/16-20	-06	1.81"	0.98"	0.16"	0.68"	9/16"
1AA6FJB6	1AA6FJB6TZ	9/16-18	-06	2.21"	1.22"	0.24"	0.84"	11/16"
1AA8FJB6*	-	3/4-16	-06	2.42"	1.42"	0.26"	1.09"	7/8"
1AA6FJB8	-	9/16-18	-08	2.43"	1.26"	0.24"	0.84"	11/16"
1AA8FJB8*	1AA8FJB8TZ	3/4-16	-08	2.59"	1.42"	0.37"	1.09"	7/8"
1AA10FJB8*	-	7/8-14	-08	2.78"	1.61"	0.38"	1.19"	1"
1AA10FJB10*	-	7/8-14	-10	2.76"	1.55"	0.46"	1.23"	1"
1AA10FJB12	-	7/8-14	-12	2.57"	1.56"	0.46"	1.19"	1"
1AA12FJB8	-	1-1/16-12	-08	-	-	-	-	-
1AA12FJB10	-	1-1/16-12	-10	3.31"	2.16"	0.50"	1.80"	1-1/4"
1AA12FJB16	-	1-5/8-12	-16	3.77"	2.45"	0.82"	2.75"	2"
1AA12FJB12	1AA12FJB12TZ	1-1/16-12	-12	3.36"	2.17"	0.58"	1.82"	1-1/4"
1AA16FJB12	-	1-5/16-12	-12	3.37"	2.18"	0.61"	2.39"	1-1/2"
1AA16FJB16	1AA16FJB16TZ	1-5/16-12	-16	3.56"	2.87"	0.81"	2.39"	1-1/2"
1AA20FJB20	1AA20FJB20TZ	1-5/8-12	-20	4.25"	2.52"	1.01"	2.75"	2"
1AA24FJB24	-	1-7/8-12	-24	4.63"	2.81"	1.26"	3.17"	2-1/4"
