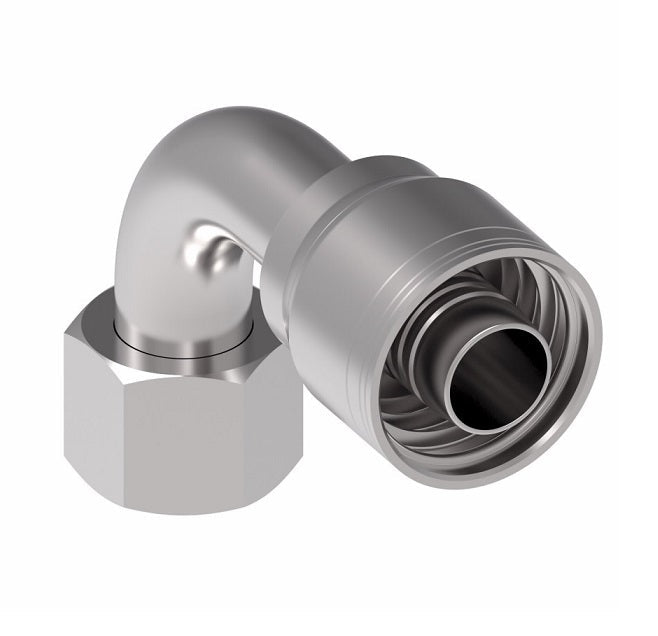

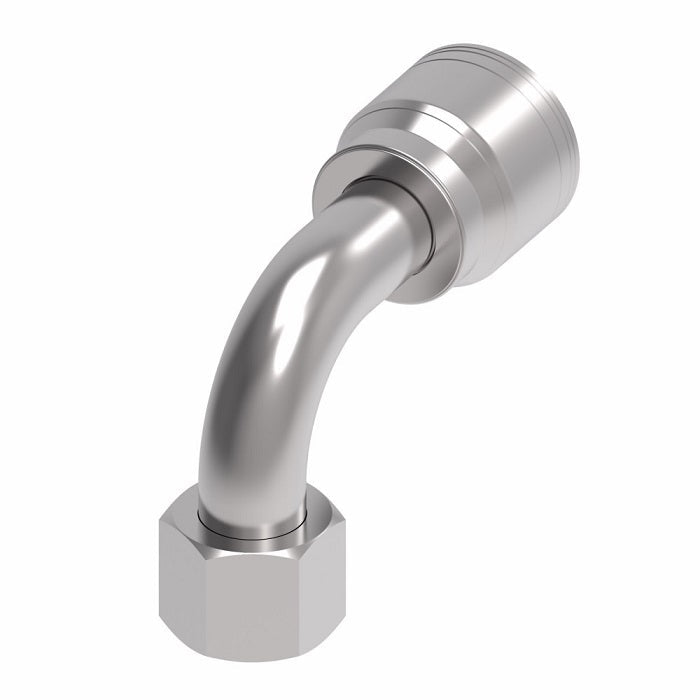

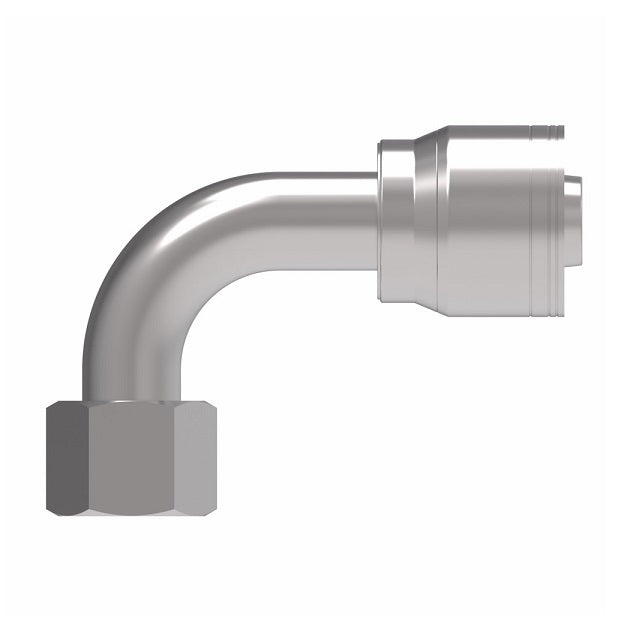

1AA16FJB16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel
1AA16FJB16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel
1AA16FJB16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel
1AA16FJB16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel

1AA16FJB16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel

$184.85 - $184.85
$184.85
$184.85 - $184.85
$184.85

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fiting (FJB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA16FJB16TZ Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Zinc-Nickel Plated Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel
Plated Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1AA4FJB4* 1AA4FJB4TZ 7/16-20 -04 1.84" 0.92" 0.17" 0.68" 9/16"
1AA5FJB4* - 1/2-20 -04 1.92" 1.00" 0.17" 0.76" 5/8"
1AA6FJB4 1AA6FJB4TZ 9/16-18 -04 2.00" 0.99" 0.17" 0.90" 11/16"
1AA4FJB6 1AA4FJB6TZ 7/16-20 -06 1.81" 0.98" 0.16" 0.68" 9/16"
1AA6FJB6 1AA6FJB6TZ 9/16-18 -06 2.21" 1.22" 0.24" 0.84" 11/16"
1AA8FJB6* - 3/4-16 -06 2.42" 1.42" 0.26" 1.09" 7/8"
1AA6FJB8 - 9/16-18 -08 2.43" 1.26" 0.24" 0.84" 11/16"
1AA8FJB8* 1AA8FJB8TZ 3/4-16 -08 2.59" 1.42" 0.37" 1.09" 7/8"
1AA10FJB8* - 7/8-14 -08 2.78" 1.61" 0.38" 1.19" 1"
1AA10FJB10* - 7/8-14 -10 2.76" 1.55" 0.46" 1.23" 1"
1AA10FJB12 - 7/8-14 -12 2.57" 1.56" 0.46" 1.19" 1"
1AA12FJB8 - 1-1/16-12 -08 - - - - -
1AA12FJB10 - 1-1/16-12 -10 3.31" 2.16" 0.50" 1.80" 1-1/4"
1AA12FJB16 - 1-5/8-12 -16 3.77" 2.45" 0.82" 2.75" 2"
1AA12FJB12 1AA12FJB12TZ 1-1/16-12 -12 3.36" 2.17" 0.58" 1.82" 1-1/4"
1AA16FJB12 - 1-5/16-12 -12 3.37" 2.18" 0.61" 2.39" 1-1/2"
1AA16FJB16 1AA16FJB16TZ 1-5/16-12 -16 3.56" 2.87" 0.81" 2.39" 1-1/2"
1AA20FJB20 1AA20FJB20TZ 1-5/8-12 -20 4.25" 2.52" 1.01" 2.75" 2"
1AA24FJB24 - 1-7/8-12 -24 4.63" 2.81" 1.26" 3.17" 2-1/4"
