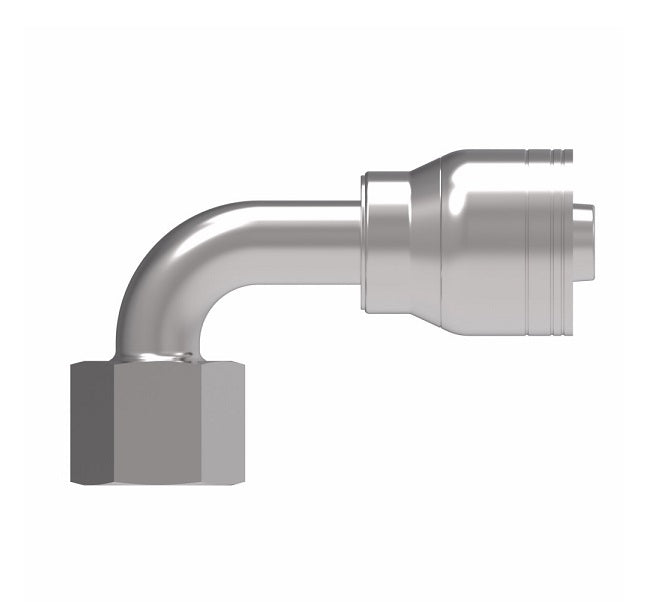

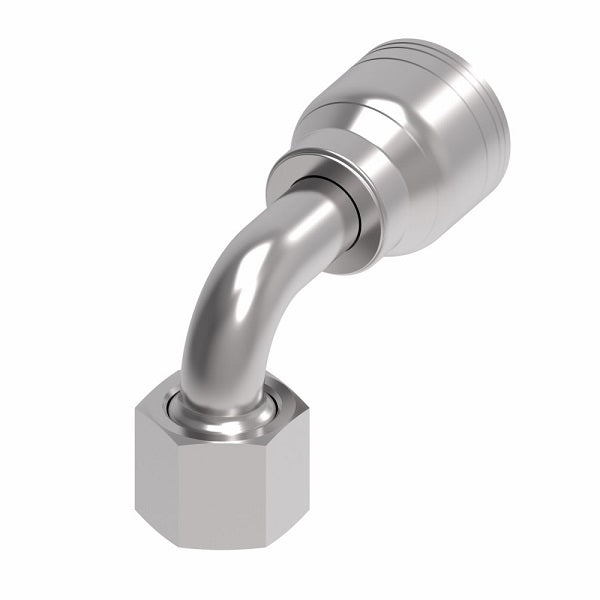

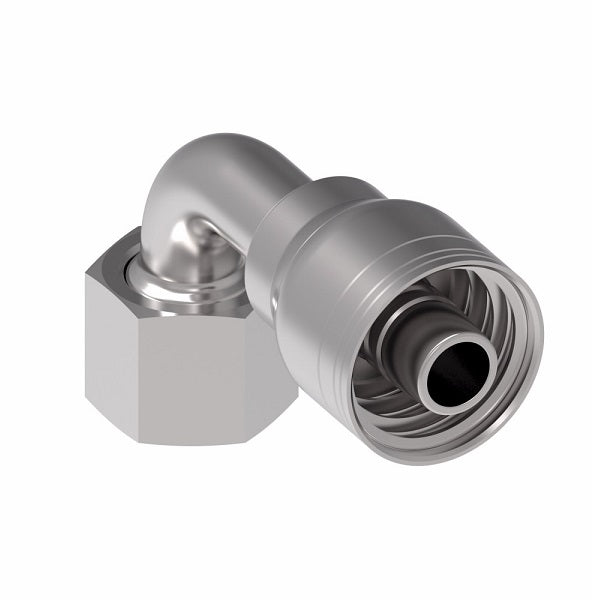

1AA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1AA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1AA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1AA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

1AA10FRB10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

$38.65 - $38.65
$38.65
$38.65 - $38.65
$38.65

Aeroquip® by Danfoss
1 & 2 Wire TTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA10FRB10 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1AA4FRB4 1AA4FRB4TZ 9/16-18 -04 2.09" 0.92" 0.17" 0.82" 11/16"
1AA4FRB4.032 - 9/16-18 -04 - - - - -
1AA6FRB4 - 11/16-16 -04 2.22" 0.99" 0.17" 0.90" 13/16"
1AA6FRB4.038 - 11/16-16 -04 - - - - -
1AA4FRB6 - 9/16-18 -06 2.21" 1.21" 0.17" 0.82" 11/16"
1AA6FRB6 - 11/16-16 -06 2.34" 1.34" 0.26" 0.90" 13/16"
1AA6FRB6.038 - 11/16-16 -06 - - - - -
1AA8FRB4.042 - 13/16-16 -04 - - - - -
1AA8FRB6 - 13/16-16 -06 2.62" 1.62" 0.26" 1.15" 15/16"
1AA8FRB6.042 - 13/16-16 -06 - - - - -
1AA6FRB8 - 11/16-16 -08 2.56" 1.39" 0.26" 0.90" 13/16"
1AA6FRB8.038 - 11/16-16 -08 - - - - -
1AA8FRB8 - 13/16-16 -08 2.84" 1.67" 0.36" 1.15" 15/16"
1AA8FRB8.041 - 13/16-16 -08 - - - - -
1AA10FRB8 - 1-14 -08 3.07" 1.91" 0.38" 1.27" 1-1/8"
1AA12FRB8 - 1-3/16-12 -08 3.45" 2.28" 0.38" 1.88" 1-3/8"
1AA12FRB8.054 - 1-3/16-12 -08 - - - - -
1AA10FRB10 - 1-14 -10 3.07" 1.91" 0.45" 1.27" 1-1/8"
1AA10FRB10.047 - 1-14 -10 - - - - -
1AA12FRB10 - 1-3/16-12 -10 3.44" 2.29" 0.50" 1.88" 1-3/8"
1AA10FRB12 - 1-14 -12 3.11" 1.93" 0.45" 1.27" 1-1/8"
1AA10FRB12.045 - 1-14 -12 - - - - -
1AA12FRB12 1AA12FRB12TZ 1-3/16-12 -12 3.49" 2.30" 0.55" 1.88" 1-3/8"
1AA12FRB12.058 - 1-3/16-12 -12 - - - - -
1AA16FRB12 - 1-7/16-12 -12 4.04" 2.85" 0.61" 2.21" 1.5/8"
1AA16FRB16 1AA16FRB16TZ 1-7/16-12 -16 4.22" 2.87" 0.81" 2.21" 1-5/8"
1AA16FRB16.071 - 1-7/16-12 -16 - - - - -
1AA16FRB20 - 1-7/16-12 -20 - - - - -
1AA20FRB16 - 1-11/16-12 -16 4.85" 3.50" 0.81" 2.51" 1-7/8"
1AA20FRB16.078 - 1-11/16-12 -16 - - - - -
1AA20FRB20 - 1-11/16-12 -20 5.30" 3.57" 1.02" 2.51" 1-7/8"
1AA20FRB20.078 - 1-11/16-12 -20 - - - - -
1AA24FRB20 - 2-12 -20 4.32" 2.77" 1.05" 2.70" 2-1/4"
1AA24FRB24 - 2-12 -24 4.63" 2.81" 1.26" 2.70" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
