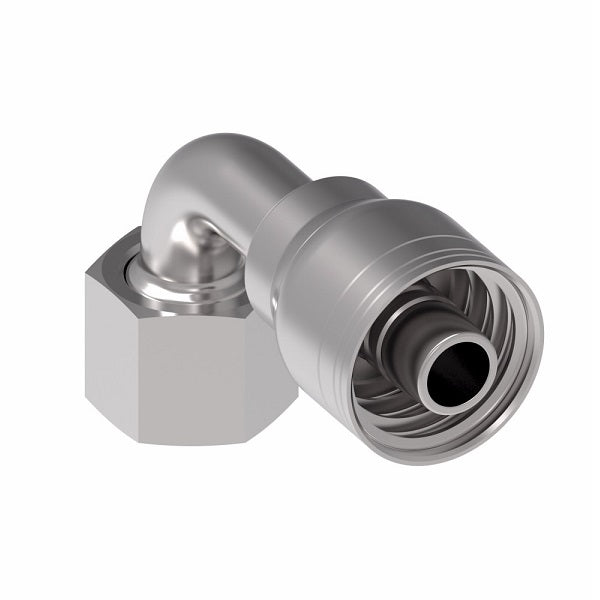

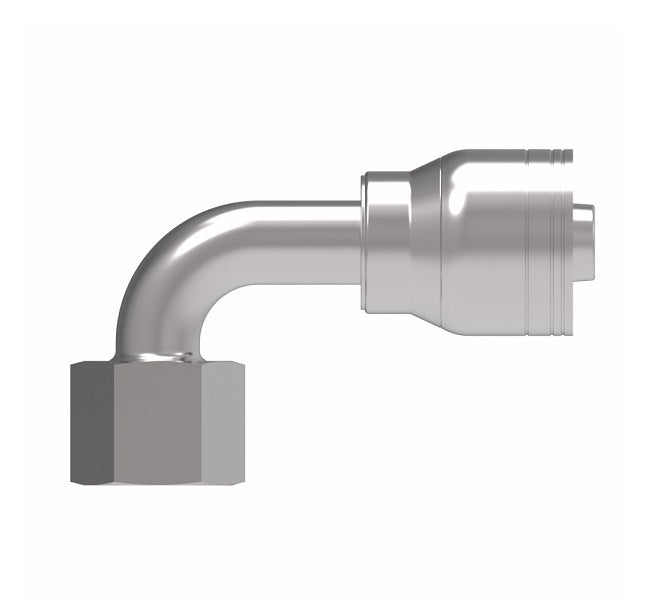

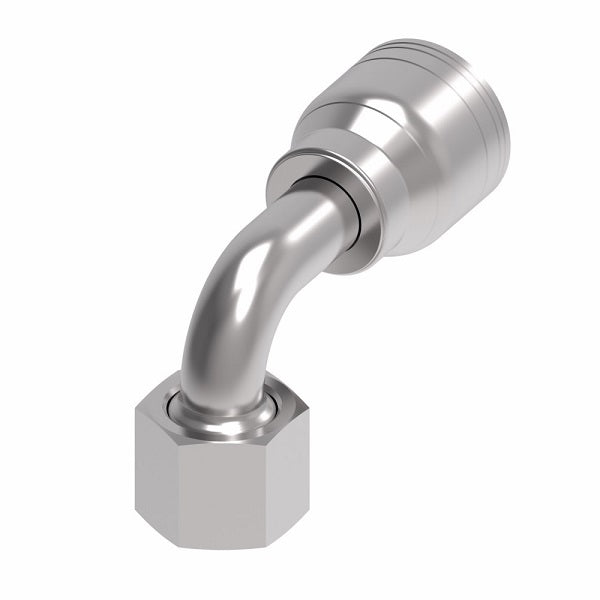

1AA12FRB12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
1AA12FRB12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
1AA12FRB12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
1AA12FRB12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

1AA12FRB12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

$56.34 - $56.34
$56.34
$56.34 - $56.34
$56.34

Aeroquip® by Danfoss
1 & 2 Wire TTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA12FRB12 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1AA4FRB4 1AA4FRB4TZ 9/16-18 -04 2.09" 0.92" 0.17" 0.82" 11/16"
1AA4FRB4.032 - 9/16-18 -04 - - - - -
1AA6FRB4 - 11/16-16 -04 2.22" 0.99" 0.17" 0.90" 13/16"
1AA6FRB4.038 - 11/16-16 -04 - - - - -
1AA4FRB6 - 9/16-18 -06 2.21" 1.21" 0.17" 0.82" 11/16"
1AA6FRB6 - 11/16-16 -06 2.34" 1.34" 0.26" 0.90" 13/16"
1AA6FRB6.038 - 11/16-16 -06 - - - - -
1AA8FRB4.042 - 13/16-16 -04 - - - - -
1AA8FRB6 - 13/16-16 -06 2.62" 1.62" 0.26" 1.15" 15/16"
1AA8FRB6.042 - 13/16-16 -06 - - - - -
1AA6FRB8 - 11/16-16 -08 2.56" 1.39" 0.26" 0.90" 13/16"
1AA6FRB8.038 - 11/16-16 -08 - - - - -
1AA8FRB8 - 13/16-16 -08 2.84" 1.67" 0.36" 1.15" 15/16"
1AA8FRB8.041 - 13/16-16 -08 - - - - -
1AA10FRB8 - 1-14 -08 3.07" 1.91" 0.38" 1.27" 1-1/8"
1AA12FRB8 - 1-3/16-12 -08 3.45" 2.28" 0.38" 1.88" 1-3/8"
1AA12FRB8.054 - 1-3/16-12 -08 - - - - -
1AA10FRB10 - 1-14 -10 3.07" 1.91" 0.45" 1.27" 1-1/8"
1AA10FRB10.047 - 1-14 -10 - - - - -
1AA12FRB10 - 1-3/16-12 -10 3.44" 2.29" 0.50" 1.88" 1-3/8"
1AA10FRB12 - 1-14 -12 3.11" 1.93" 0.45" 1.27" 1-1/8"
1AA10FRB12.045 - 1-14 -12 - - - - -
1AA12FRB12 1AA12FRB12TZ 1-3/16-12 -12 3.49" 2.30" 0.55" 1.88" 1-3/8"
1AA12FRB12.058 - 1-3/16-12 -12 - - - - -
1AA16FRB12 - 1-7/16-12 -12 4.04" 2.85" 0.61" 2.21" 1.5/8"
1AA16FRB16 1AA16FRB16TZ 1-7/16-12 -16 4.22" 2.87" 0.81" 2.21" 1-5/8"
1AA16FRB16.071 - 1-7/16-12 -16 - - - - -
1AA16FRB20 - 1-7/16-12 -20 - - - - -
1AA20FRB16 - 1-11/16-12 -16 4.85" 3.50" 0.81" 2.51" 1-7/8"
1AA20FRB16.078 - 1-11/16-12 -16 - - - - -
1AA20FRB20 - 1-11/16-12 -20 5.30" 3.57" 1.02" 2.51" 1-7/8"
1AA20FRB20.078 - 1-11/16-12 -20 - - - - -
1AA24FRB20 - 2-12 -20 4.32" 2.77" 1.05" 2.70" 2-1/4"
1AA24FRB24 - 2-12 -24 4.63" 2.81" 1.26" 2.70" 2-1/4"
