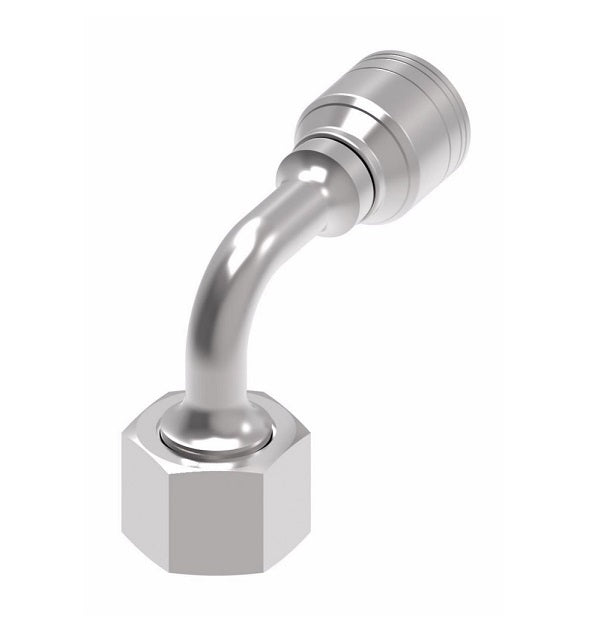

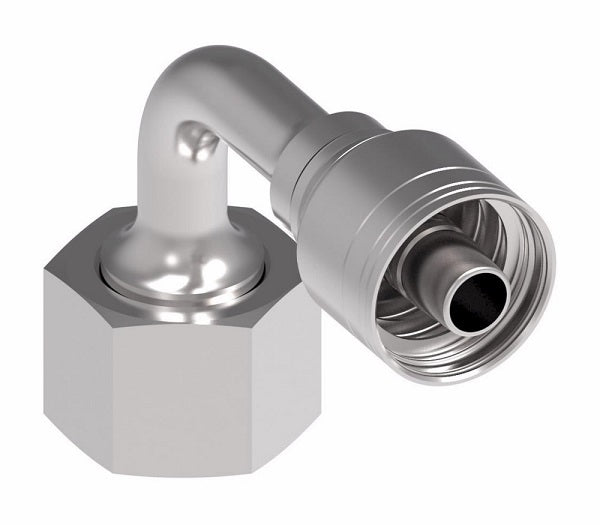

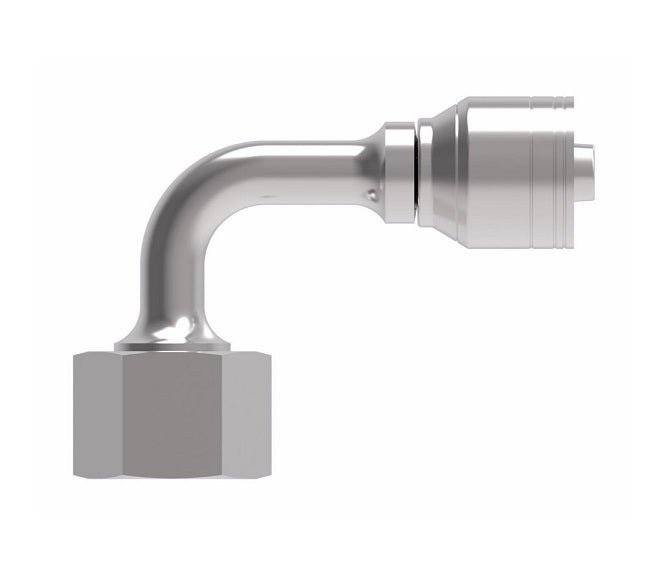

1AA12FRB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

1AA12FRB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

Name: 1AA12FRB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA12FRB8 Danfoss
Price: 38.92 USD
Availability: InStock

$38.92 - $38.92

$38.92

$38.92 - $38.92

$38.92

Aeroquip® by Danfoss
1 & 2 Wire TTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA12FRB8 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
1AA4FRB4	1AA4FRB4TZ	9/16-18	-04	2.09"	0.92"	0.17"	0.82"	11/16"
1AA4FRB4.032	-	9/16-18	-04	-	-	-	-	-
1AA6FRB4	-	11/16-16	-04	2.22"	0.99"	0.17"	0.90"	13/16"
1AA6FRB4.038	-	11/16-16	-04	-	-	-	-	-
1AA4FRB6	-	9/16-18	-06	2.21"	1.21"	0.17"	0.82"	11/16"
1AA6FRB6	-	11/16-16	-06	2.34"	1.34"	0.26"	0.90"	13/16"
1AA6FRB6.038	-	11/16-16	-06	-	-	-	-	-
1AA8FRB4.042	-	13/16-16	-04	-	-	-	-	-
1AA8FRB6	-	13/16-16	-06	2.62"	1.62"	0.26"	1.15"	15/16"
1AA8FRB6.042	-	13/16-16	-06	-	-	-	-	-
1AA6FRB8	-	11/16-16	-08	2.56"	1.39"	0.26"	0.90"	13/16"
1AA6FRB8.038	-	11/16-16	-08	-	-	-	-	-
1AA8FRB8	-	13/16-16	-08	2.84"	1.67"	0.36"	1.15"	15/16"
1AA8FRB8.041	-	13/16-16	-08	-	-	-	-	-
1AA10FRB8	-	1-14	-08	3.07"	1.91"	0.38"	1.27"	1-1/8"
1AA12FRB8	-	1-3/16-12	-08	3.45"	2.28"	0.38"	1.88"	1-3/8"
1AA12FRB8.054	-	1-3/16-12	-08	-	-	-	-	-
1AA10FRB10	-	1-14	-10	3.07"	1.91"	0.45"	1.27"	1-1/8"
1AA10FRB10.047	-	1-14	-10	-	-	-	-	-
1AA12FRB10	-	1-3/16-12	-10	3.44"	2.29"	0.50"	1.88"	1-3/8"
1AA10FRB12	-	1-14	-12	3.11"	1.93"	0.45"	1.27"	1-1/8"
1AA10FRB12.045	-	1-14	-12	-	-	-	-	-
1AA12FRB12	1AA12FRB12TZ	1-3/16-12	-12	3.49"	2.30"	0.55"	1.88"	1-3/8"
1AA12FRB12.058	-	1-3/16-12	-12	-	-	-	-	-
1AA16FRB12	-	1-7/16-12	-12	4.04"	2.85"	0.61"	2.21"	1.5/8"
1AA16FRB16	1AA16FRB16TZ	1-7/16-12	-16	4.22"	2.87"	0.81"	2.21"	1-5/8"
1AA16FRB16.071	-	1-7/16-12	-16	-	-	-	-	-
1AA16FRB20	-	1-7/16-12	-20	-	-	-	-	-
1AA20FRB16	-	1-11/16-12	-16	4.85"	3.50"	0.81"	2.51"	1-7/8"
1AA20FRB16.078	-	1-11/16-12	-16	-	-	-	-	-
1AA20FRB20	-	1-11/16-12	-20	5.30"	3.57"	1.02"	2.51"	1-7/8"
1AA20FRB20.078	-	1-11/16-12	-20	-	-	-	-	-
1AA24FRB20	-	2-12	-20	4.32"	2.77"	1.05"	2.70"	2-1/4"
1AA24FRB24	-	2-12	-24	4.63"	2.81"	1.26"	2.70"	2-1/4"
