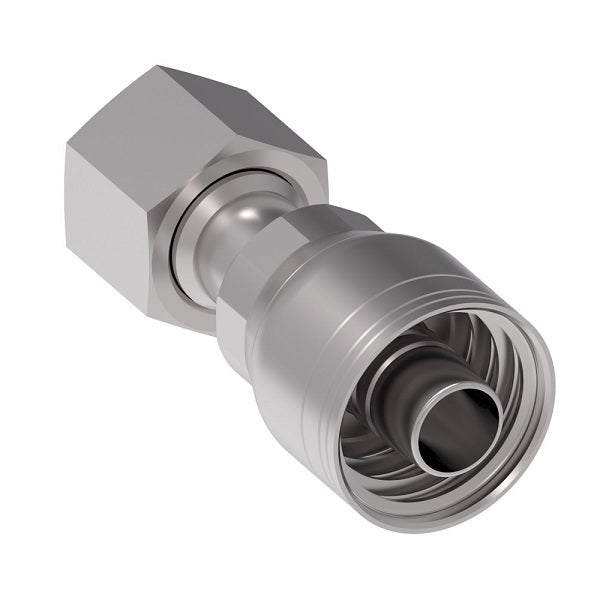

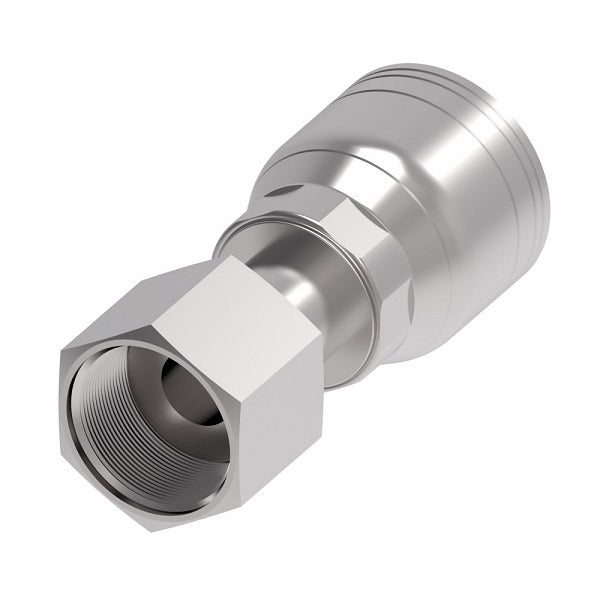

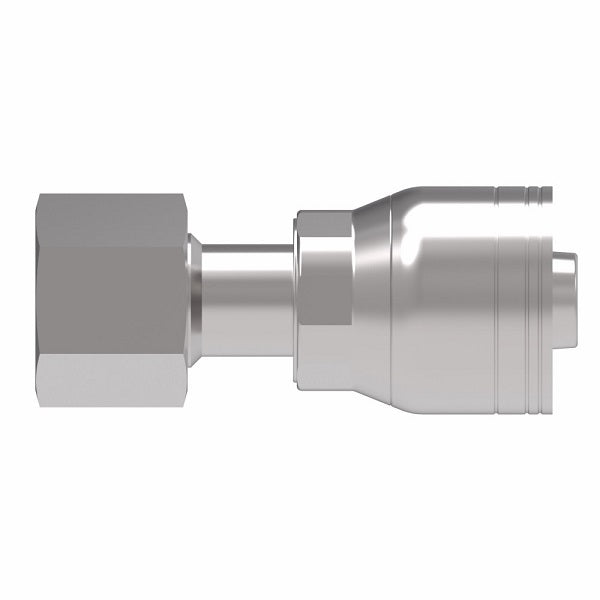

1AA12FR10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1AA12FR10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1AA12FR10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
1AA12FR10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

1AA12FR10 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

$32.27 - $32.27
$32.27
$32.27 - $32.27
$32.27

Aeroquip® by Danfoss
1 & 2 Wire TTC Female O-Ring Face Seal (ORS) Swivel (FR) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA12FR10 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1AA4FR4 1AA4FR4TZ 9/16-18 -04 1.95" 1.03" 0.17" 11/16" 9/16"
1AA6FR4 - 11/16-16 -04 2.04" 1.12" 0.17" 13/16" 9/16"
1AA8FR4 - 13/16-16 -04 2.06" 1.28" 0.16" 13/16" 15/16"
1AA4FR6 - 9/16-18 -06 2.14" 1.15" 0.17" 11/16" 11/16"
1AA6FR6 - 11/16-16 -06 2.07" 1.24" 0.26" 13/16" 11/16"
1AA8FR6 - 13/16-16 -06 2.14" 1.32" 0.26" 15/16" 11/16"
1AA6FR8 - 11/16-16 -08 2.41" 1.34" 0.26" 13/16" 7/8"
1AA8FR8 - 13/16-16 -08 2.61" 1.50" 0.36" 15/16" 7/8"
1AA10FR8 - 1-14 -08 2.57" 1.47" 0.38" 1-1/8" 7/8"
1AA12FR8 - 1-3/16-16 -08 2.80" 1.63" 0.38" 1-3/8" 1-1/8"
1AA8FR10 - 13/16-16 -10 2.67" 1.51" 0.38" 15/16" 15/16"
1AA10FR10 - 1-14 -10 2.62" 1.61" 0.45" 1-1/8" 1-1/16"
1AA12FR10 - 1-3/16-12 -10 2.65" 1.63" 0.50" 1-3/8" 1-1/16"
1AA10FR12 - 1-14 -12 2.81" 1.62" 0.48" 1-1/8" 1-1/8"
1AA12FR12 - 1-3/16-12 -12 2.91" 1.72" 0.61" 1-3/8" 1-1/8"
1AA12FR16 - 1-3/16-12 -16 3.22" 1.86" 0.61" 1-3/8" 1-3/8"
1AA16FR12 - 1-7/16-12 -12 2.98" 1.79" 0.61" 1-5/8" 1-3/8"
1AA16FR16 1AA16FR16TZ 1-7/16-12 -16 3.29" 1.94" 0.81" 1-5/8" 1-3/8"
1AA16FR20 - 1-7/16-12 -20 - - - - -
1AA20FR16 - 1-11/16-12 -16 3.25" 1.90" 0.81" 1-7/8" 1-5/8"
1AA20FR20 - 1-11/16-12 -20 4.07" 2.33" 1.02" 1-7/8" 1-3/4"
1AA24FR20 - 2-12 -20 3.88" 2.15" 1.05" 2-1/4" 1"
1AA24FR24 - 2-12 -24 4.02" 2.19" 1.26" 2-1/4" 2"
