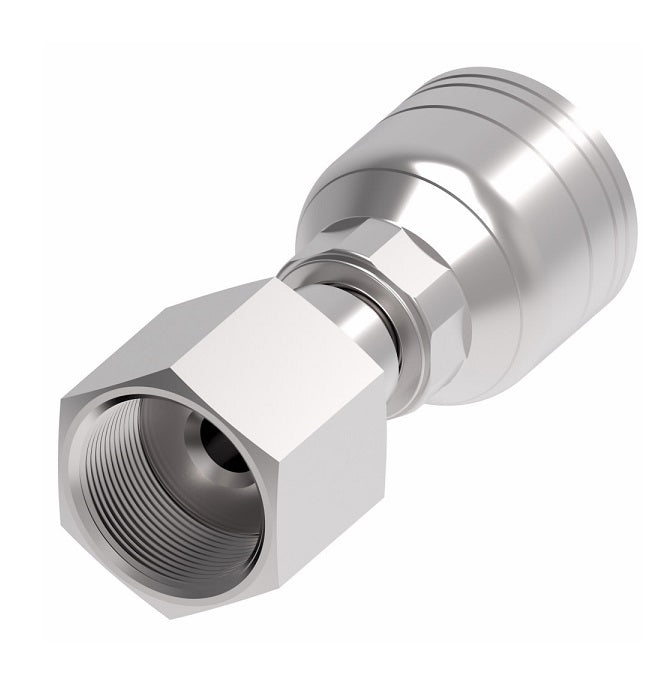

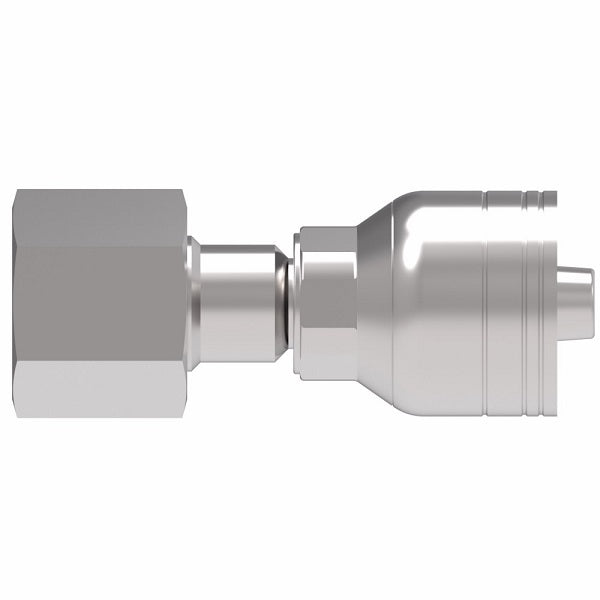

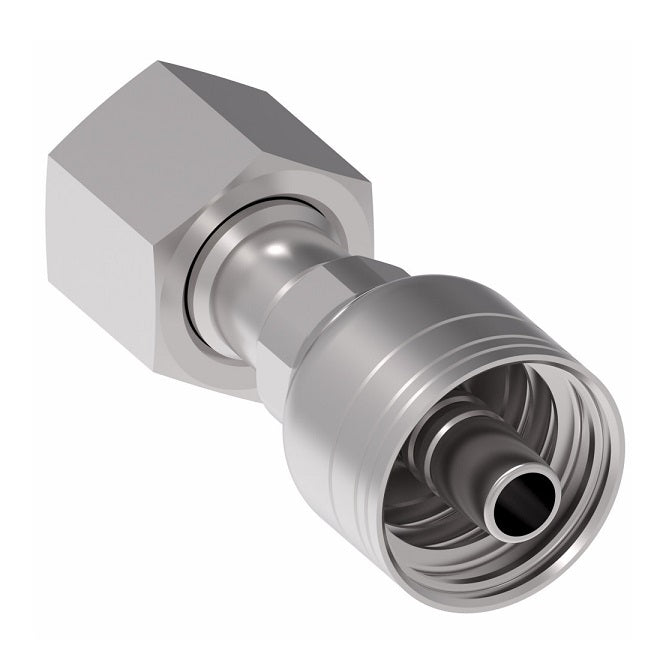

1AA6FR4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel
1AA6FR4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel
1AA6FR4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel
1AA6FR4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel

1AA6FR4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel

$17.09 - $17.09
$17.09
$17.09 - $17.09
$17.09

Aeroquip® by Danfoss
1 & 2 Wire TTC Female O-Ring Face Seal (ORS) Swivel (FR) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1AA6FR4 Danfoss
Brand: Aeroquip, MatchMate
Series: 1AA MatchMate Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1AA4FR4 1AA4FR4TZ 9/16-18 -04 1.95" 1.03" 0.17" 11/16" 9/16"
1AA6FR4 - 11/16-16 -04 2.04" 1.12" 0.17" 13/16" 9/16"
1AA8FR4 - 13/16-16 -04 2.06" 1.28" 0.16" 13/16" 15/16"
1AA4FR6 - 9/16-18 -06 2.14" 1.15" 0.17" 11/16" 11/16"
1AA6FR6 - 11/16-16 -06 2.07" 1.24" 0.26" 13/16" 11/16"
1AA8FR6 - 13/16-16 -06 2.14" 1.32" 0.26" 15/16" 11/16"
1AA6FR8 - 11/16-16 -08 2.41" 1.34" 0.26" 13/16" 7/8"
1AA8FR8 - 13/16-16 -08 2.61" 1.50" 0.36" 15/16" 7/8"
1AA10FR8 - 1-14 -08 2.57" 1.47" 0.38" 1-1/8" 7/8"
1AA12FR8 - 1-3/16-16 -08 2.80" 1.63" 0.38" 1-3/8" 1-1/8"
1AA8FR10 - 13/16-16 -10 2.67" 1.51" 0.38" 15/16" 15/16"
1AA10FR10 - 1-14 -10 2.62" 1.61" 0.45" 1-1/8" 1-1/16"
1AA12FR10 - 1-3/16-12 -10 2.65" 1.63" 0.50" 1-3/8" 1-1/16"
1AA10FR12 - 1-14 -12 2.81" 1.62" 0.48" 1-1/8" 1-1/8"
1AA12FR12 - 1-3/16-12 -12 2.91" 1.72" 0.61" 1-3/8" 1-1/8"
1AA12FR16 - 1-3/16-12 -16 3.22" 1.86" 0.61" 1-3/8" 1-3/8"
1AA16FR12 - 1-7/16-12 -12 2.98" 1.79" 0.61" 1-5/8" 1-3/8"
1AA16FR16 1AA16FR16TZ 1-7/16-12 -16 3.29" 1.94" 0.81" 1-5/8" 1-3/8"
1AA16FR20 - 1-7/16-12 -20 - - - - -
1AA20FR16 - 1-11/16-12 -16 3.25" 1.90" 0.81" 1-7/8" 1-5/8"
1AA20FR20 - 1-11/16-12 -20 4.07" 2.33" 1.02" 1-7/8" 1-3/4"
1AA24FR20 - 2-12 -20 3.88" 2.15" 1.05" 2-1/4" 1"
1AA24FR24 - 2-12 -24 4.02" 2.19" 1.26" 2-1/4" 2"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
