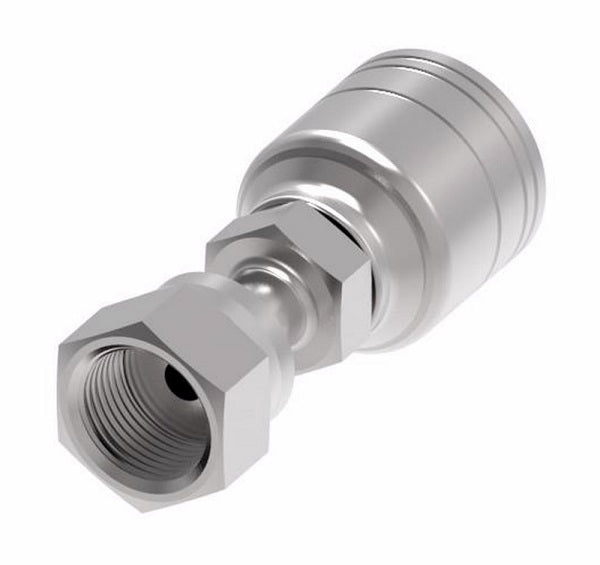

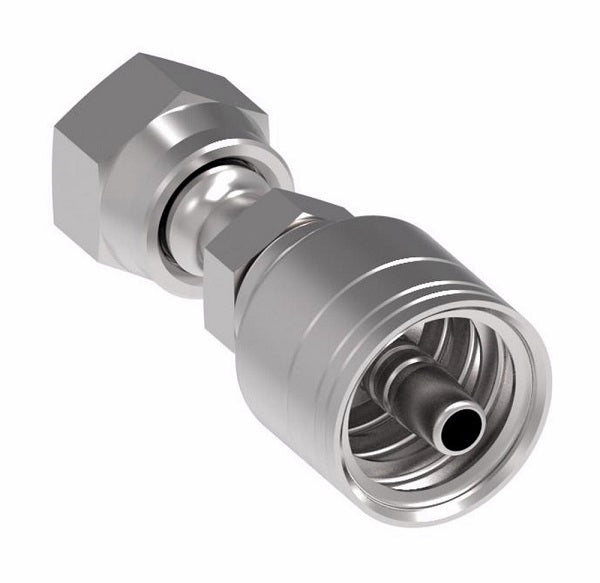

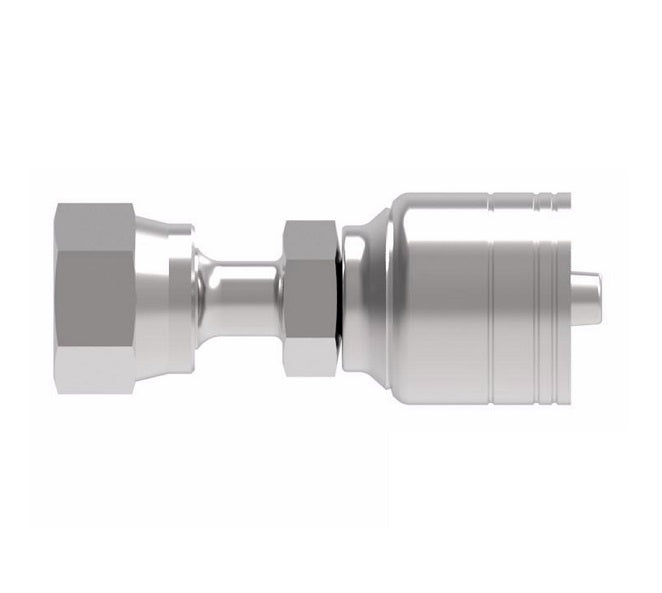

1AA20FR20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

1AA20FR20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

Name: 1AA20FR20 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1AA20FR20 Danfoss
Price: 123.5 USD
Availability: InStock

$123.50 - $123.50

$123.50

$123.50 - $123.50

$123.50

Aeroquip® by Danfoss
1 & 2 Wire TTC Female O-Ring Face Seal (ORS) Swivel (FR) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1AA20FR20 Danfoss
Brand:	Aeroquip, MatchMate
Series:	1AA MatchMate Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1AA4FR4	1AA4FR4TZ	9/16-18	-04	1.95"	1.03"	0.17"	11/16"	9/16"
1AA6FR4	-	11/16-16	-04	2.04"	1.12"	0.17"	13/16"	9/16"
1AA8FR4	-	13/16-16	-04	2.06"	1.28"	0.16"	13/16"	15/16"
1AA4FR6	-	9/16-18	-06	2.14"	1.15"	0.17"	11/16"	11/16"
1AA6FR6	-	11/16-16	-06	2.07"	1.24"	0.26"	13/16"	11/16"
1AA8FR6	-	13/16-16	-06	2.14"	1.32"	0.26"	15/16"	11/16"
1AA6FR8	-	11/16-16	-08	2.41"	1.34"	0.26"	13/16"	7/8"
1AA8FR8	-	13/16-16	-08	2.61"	1.50"	0.36"	15/16"	7/8"
1AA10FR8	-	1-14	-08	2.57"	1.47"	0.38"	1-1/8"	7/8"
1AA12FR8	-	1-3/16-16	-08	2.80"	1.63"	0.38"	1-3/8"	1-1/8"
1AA8FR10	-	13/16-16	-10	2.67"	1.51"	0.38"	15/16"	15/16"
1AA10FR10	-	1-14	-10	2.62"	1.61"	0.45"	1-1/8"	1-1/16"
1AA12FR10	-	1-3/16-12	-10	2.65"	1.63"	0.50"	1-3/8"	1-1/16"
1AA10FR12	-	1-14	-12	2.81"	1.62"	0.48"	1-1/8"	1-1/8"
1AA12FR12	-	1-3/16-12	-12	2.91"	1.72"	0.61"	1-3/8"	1-1/8"
1AA12FR16	-	1-3/16-12	-16	3.22"	1.86"	0.61"	1-3/8"	1-3/8"
1AA16FR12	-	1-7/16-12	-12	2.98"	1.79"	0.61"	1-5/8"	1-3/8"
1AA16FR16	1AA16FR16TZ	1-7/16-12	-16	3.29"	1.94"	0.81"	1-5/8"	1-3/8"
1AA16FR20	-	1-7/16-12	-20	-	-	-	-	-
1AA20FR16	-	1-11/16-12	-16	3.25"	1.90"	0.81"	1-7/8"	1-5/8"
1AA20FR20	-	1-11/16-12	-20	4.07"	2.33"	1.02"	1-7/8"	1-3/4"
1AA24FR20	-	2-12	-20	3.88"	2.15"	1.05"	2-1/4"	1"
1AA24FR24	-	2-12	-24	4.02"	2.19"	1.26"	2-1/4"	2"
