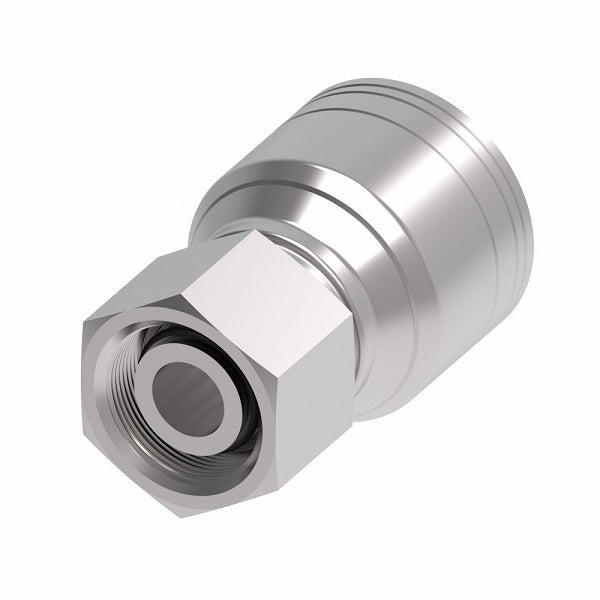

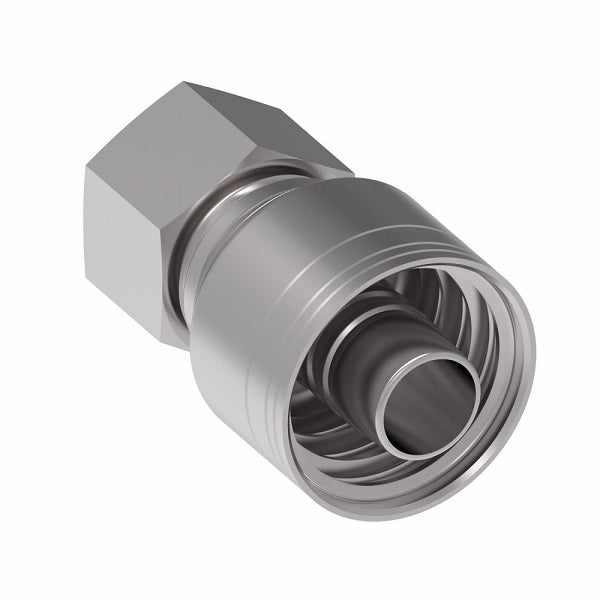

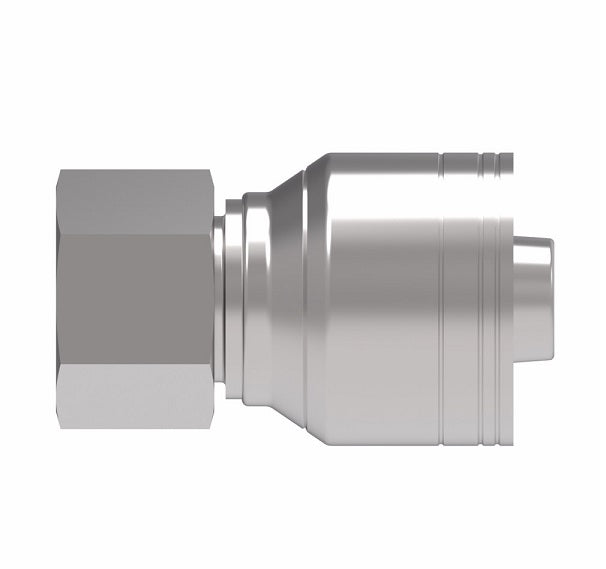

1A16DL12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -12 Hose Barb | Steel
1A16DL12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -12 Hose Barb | Steel
1A16DL12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -12 Hose Barb | Steel
1A16DL12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -12 Hose Barb | Steel

1A16DL12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -12 Hose Barb | Steel

$53.25 - $53.25
$53.25
$53.25 - $53.25
$53.25

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty Crimp Fitting (DL) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A16DL12 Danfoss
Shape (Orientation): Straight
Ends Configuration: L18 Female DIN, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number		 Thread Tube OD Hose Size A D EØ Hex 1
1A5DL4 M12 x 1.5 6 -04 1.89" 0.97" 0.16" 0.67"
1A6DL4 M14 x 1.5 8 -04 1.81" 0.89" 0.16" 0.67"
1A8DL4 M16 x 1.5 10 -04 1.90" 0.98" 0.17" 0.75"
1A8DL6 M16 x 1.5 10 -06 1.99" 0.99" 0.26" 0.75"
1A10DL6 M18 x 1.5 12 -06 2.01" 1.02" 0.26" 0.87"
1A12DL8 M22 x 1.5 15 -08 2.30" 1.13" 0.38" 1.06"
1A16DL8 M26 x 1.5 18 -08 - - - -
1A16DL10 M26 x 1.5 18 -10 2.33" 1.17" 0.50" 1.26"
1A16DL12 M26 x 1.5 18 -12 - - - -
1A20DL12 M30 x 2 22 -12 2.46" 1.27" 0.61" 1.42"
1A25DL16 M36 x 2 28 -16 2.68" 1.33" 0.81" 1.61"
1A32DL20 M45 x 2 35 -20 3.29" 1.56" 1.05" 1.97"
1A40DL24 M52 x 2 42 -24 3.43" 1.61" 1.26" 2.36"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
